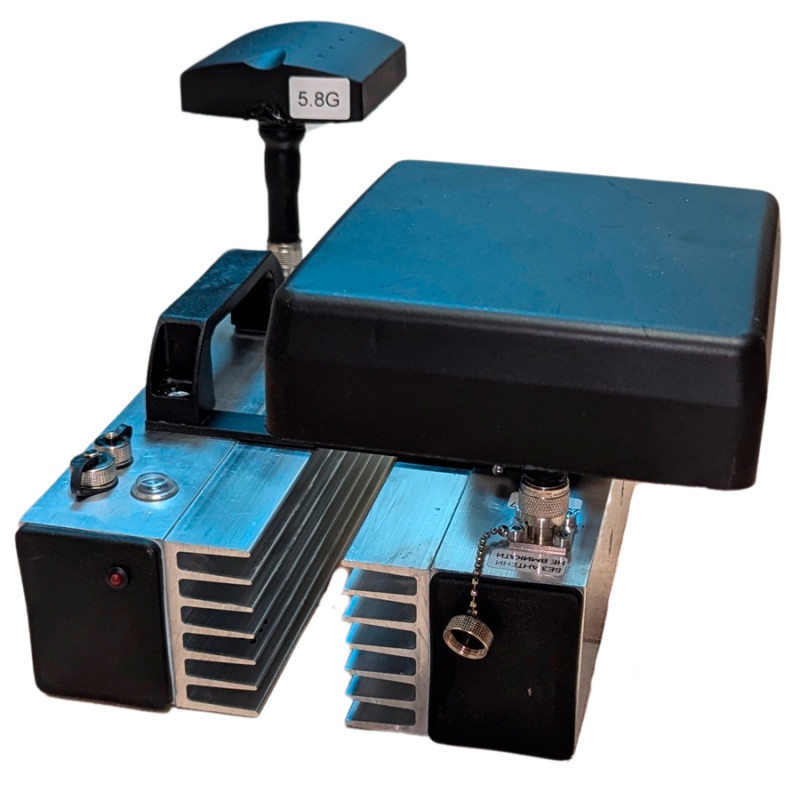

EW Jammer "Pysets" against FPV in 2 bands (2.4 GHz, 5.8 GHz)

Brand: ZAVADA. The modular electronic warfare (EW) system "Pysets" is designed for reliable suppression of FPV channels in two key communication bands — 2.4 GHz and 5.8 GHz. This versatile solution can be used as a vehicle-mounted or trench EW jammer, providing protection against enemy drones and interrupting video stream transmissions.

Key Advantages

The model combines modular architecture, mobility, and a high level of protection. Thanks to quadrifilar antennas with circular action, uniform zone coverage is achieved, and the sealed IP65-rated enclosure guarantees reliable operation in challenging climatic conditions. Optional magnetic mounting allows for quick installation of the system on a vehicle, and 12-24V power makes it compatible with the onboard networks of various machines.

Main Characteristics

• Type: vehicle-mounted or trench EW jammer
• Number of channels: 2
• Frequency range: 2.4 GHz, 5.8 GHz (2390-2525 MHz, 5.8 GHz)
• Antennas: quadrifilar (circular action)
• Sealed enclosure: IP65 protection class
• Power supply: 12-24V
• Optional magnetic car mount

Technical Parameters

The system provides radio interference power within 40-60 W (80-110 MHz). Power consumption for one module is 150-180 W/h, and for a 6-module configuration — up to 924 W. The battery capacity is 2220 Wh, providing an operating time of 40 to 140 minutes depending on temperature and operating conditions; note that the battery lasts approximately ~2 hours when the system operates with 6 modules.

Package Contents

• Remote On/Off button for one EW system
• Connection bar
• Remote radio controls
• Mounting for EW (bolt-on)
• Quadrifilar antennas — 2 pcs.

Dimensions and Weight

One module has dimensions of 34×10×10 cm and weighs 3 kg. The device's weight without battery is 6 kg. For the vehicle version, a 12-24V adapter and optional magnetic mounting are provided, simplifying quick installation on a vehicle.

The "Pysets" model from ZAVADA is a practical and proven solution for units requiring rapid EW deployment to combat enemy unmanned aerial vehicles. Thanks to its modularity, the system is easily scalable to the tasks of a specific operation: from a single mobile module to a configuration of several blocks for an extended communication jamming zone.

Product type: EW Jammers. Manufacturer: ZAVADA. Name: EW Jammer Pysets against FPV in 2 bands (2.4 GHz, 5.8 GHz).
