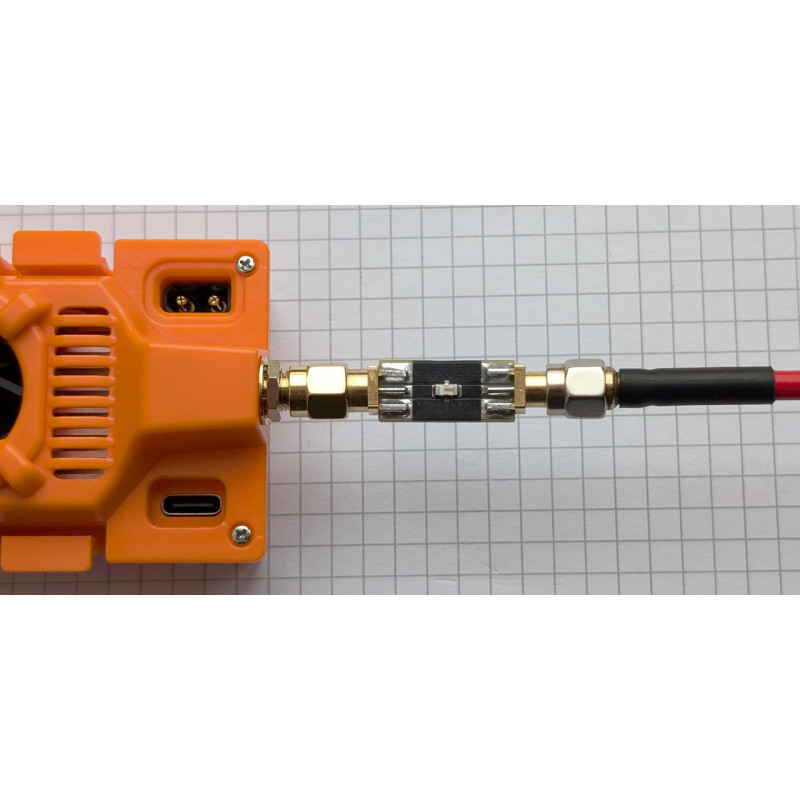

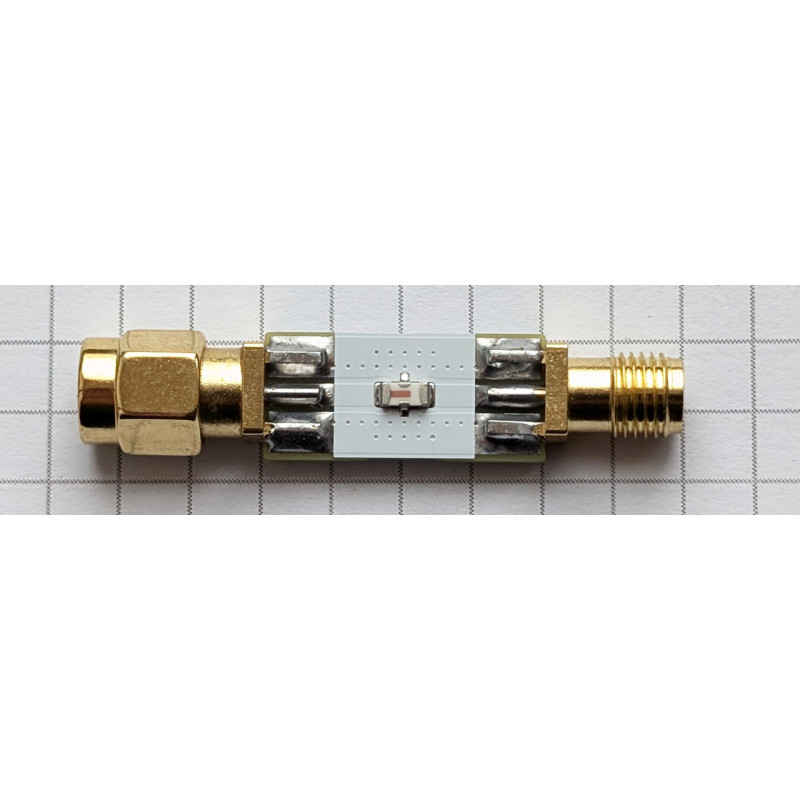

Ceramic Filter 433 MHz (360-560 MHz) and 915 MHz (730-1020 MHz) - SMA-M - SMA-F Aeronetix — a high-quality solution for suppressing spurious emissions in drone control and video transmission systems. This compact ceramic filter from Aeronetix is designed for installation at the output of the control transmitter to reduce interference on the video receiver and improve communication stability.

Purpose

The filter is installed at the output of the control transmitter to prevent interference on the video receiver and effectively suppress unwanted harmonics and spurious signals. Using the filter improves video transmission quality, reduces the risk of interference with adjacent frequency bands, and enhances the reliability of UAV systems and stationary radio systems.

Specifications

• Control transmitter operating frequency: 360-560 MHz and 730-1020 MHz
• Control transmitter power: up to 3.5 W
• Video receiver operating frequency: 3.3 GHz, 5 GHz, 5.8 GHz
• Weight (according to technical specifications): 5.4 g
• Dimensions (according to technical specifications): 42 × 9 × 8 mm
• Connectors: SMA-Male → SMA-Female

Additional parameters

• Length: 4.0
• Height: 1.0
• Width: 1.0
• Weight, kg: 0.100

These additional attributes may correspond to packaging or internal catalog parameters and do not contradict the physical dimensions and weight of the filter itself, as stated in the specifications. Thanks to its compact dimensions of 42 × 9 × 8 mm and low weight of 5.4 g, the filter is easily integrated into transmitter modules or antenna adapters, without significantly affecting the mass and dimensions of the equipment.

The filter supports two key control transmission bands (360-560 MHz and 730-1020 MHz), making it a universal solution for various transmitter models. Support for output power up to 3.5 W ensures compatibility with the vast majority of small and medium-class transmitters. In addition, compatibility with video receiver frequencies of 3.3 GHz, 5 GHz, and 5.8 GHz guarantees that the filter will not interfere with the operation of video transmission systems.

The SMA-Male → SMA-Female connector type provides simple and reliable connection to an antenna or cable adapter, which speeds up installation and servicing. The product is ideal for use in unmanned aerial vehicle systems, professional video surveillance systems, radar, and other radio frequency installations where signal purity and minimization of interference are important.

Advantages: compactness, low weight, versatility of frequency bands, easy integration due to standard SMA connectors, and compatibility with typical transmitters up to 3.5 W. This makes the Aeronetix ceramic filter an optimal choice for engineers and operators seeking to improve communication quality and video transmission stability.

Manufacturer: Aeronetix. Product category: Drone Detectors and Accessories > Communication Stations and Components.
