RunCam 6 Camera — High-Quality Action Camera for Drones

Brand: RunCam. Category: Drones & Quadcopters > Cameras. The RunCam 6 is a compact and lightweight camera designed specifically for FPV flights and professional aerial photography, combining 4K recording, a wide range of interfaces, and convenient options for field use.

The model is equipped with a 12-megapixel SONY IMX377 sensor, which provides clear and detailed video and photos even in variable lighting. The camera supports recording in MP4 format and a range of video modes: 4K@30fps, 2.7K@60fps, 2.7K@30fps, 1440P@60fps, 1080P@120fps, and 1080P@60/30fps.

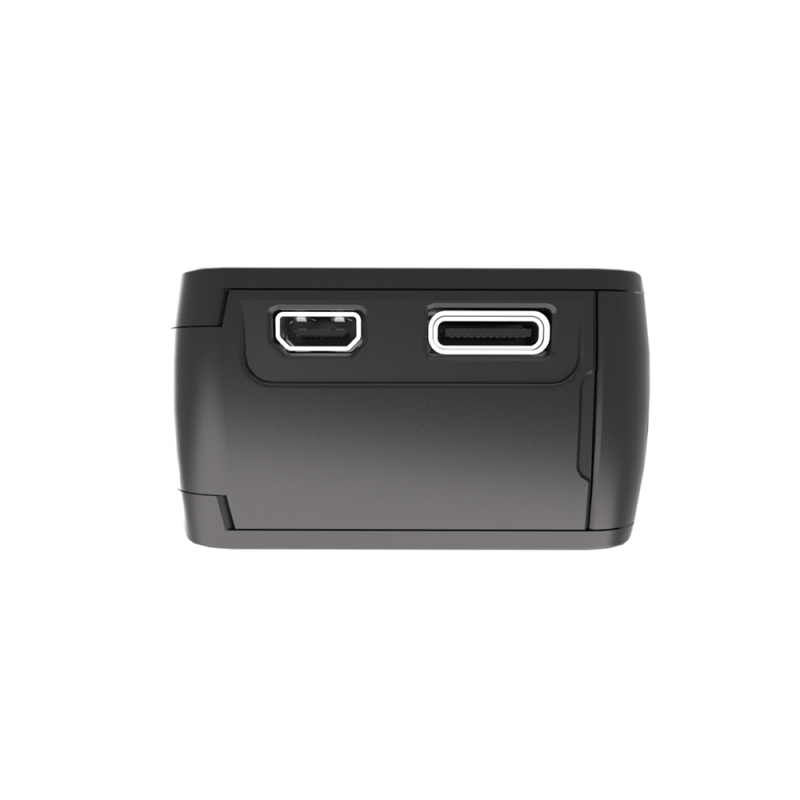

The RunCam 6 features versatile connectivity: a USB-C (Type-C, 5-20V) port for charging and data transfer, a serial port for settings, and an HDMI output for connecting external monitors. The camera also supports WiFi for fast file transfer to mobile devices. For power, the description also includes information about the possibility of powering via Micro-USB (5~20V).

Key Features

• Wide-angle lens with adjustable field of view: 155° / 142° / 130°.
• Electronic Image Stabilization (EIS) and GyroFlow support for smooth shooting during fast movement.
• HDMI output for real-time video viewing on external monitors.
• Replaceable protective cap and interchangeable ND filter for lens protection and exposure correction in bright light.

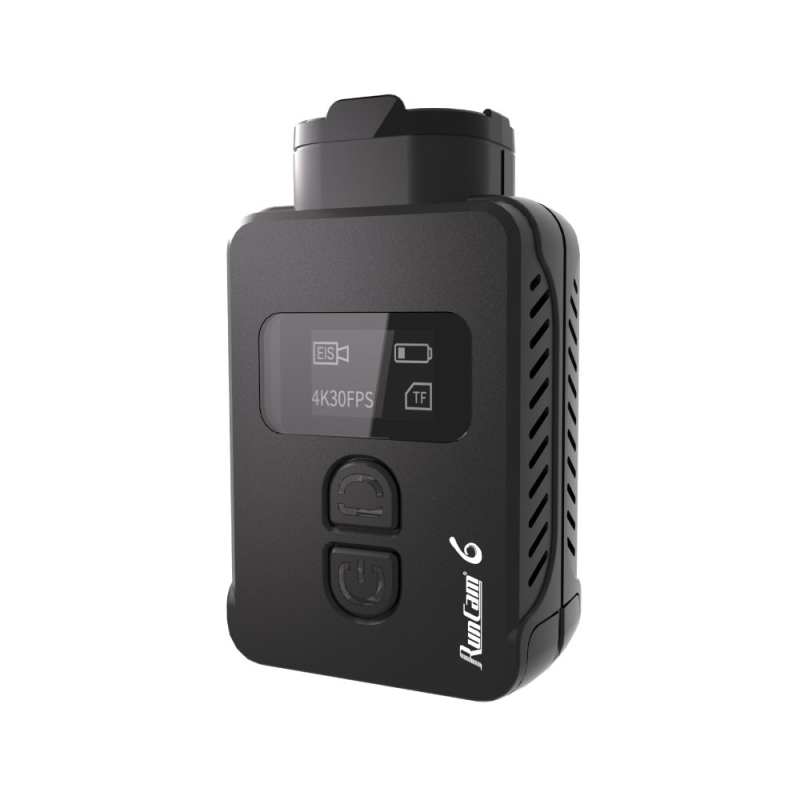

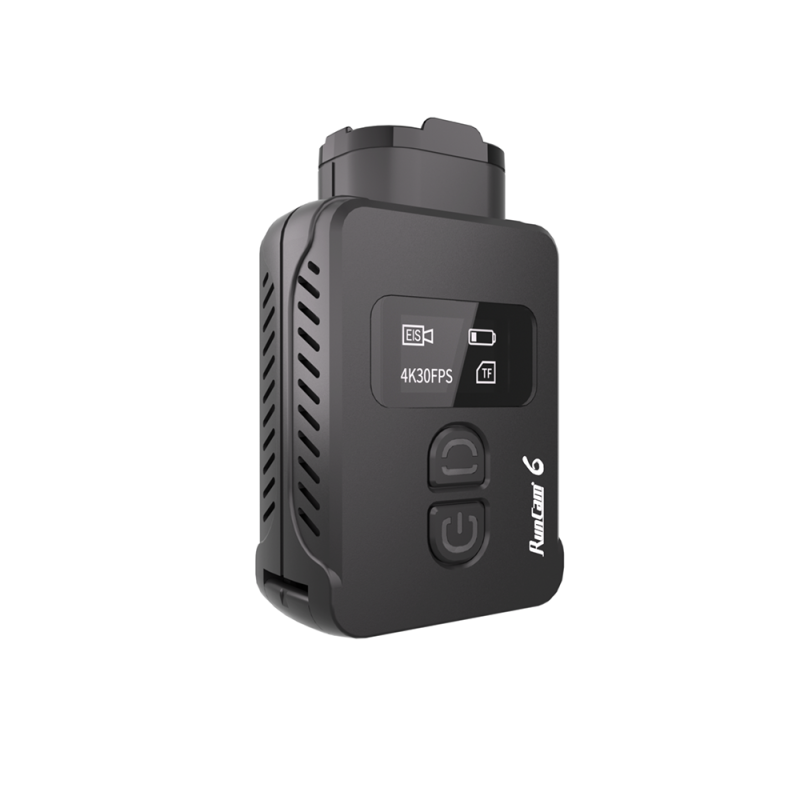

• 128 x 64 OLED screen for quick control of shooting parameters and camera status.
• Replaceable 850 mAh (3.7V) battery — ensures long operation and quick replacement in the field.
• Real-time CVBS output for simultaneous FPV and video recording.
• Serial PWM control support for flexible control during flight.

Technical Specifications

• Model: RunCam 6
• Image Sensor: SONY IMX377 (12 MP)
• Video Resolution: 4K@30fps, 2.7K@60fps, 2.7K@30fps, 1080P@120fps, 1440P@60fps, 1080P@60fps
• Video Format: MP4
• Video Recording during Sudden Power Off: Supported
• Interfaces: USB-C, Serial Port, HDMI, CVBS
• WiFi: Supported
• Maximum Memory Card: up to 512 GB (SAMSUNG 128GB U3 recommended)
• Additional Functions: Buzzer support, Microphone
• Power Supply: via Micro-USB (5~20V) and via Type-C (5-20V)
• Battery: 850 mAh, 3.7V (replaceable)
• Field of View (adjustable): Large: 155° / Medium: 142° / Small: 130°
• Auto Shutter: Auto 1/30, 1/50, 1/60, 1/100, 1/120, 1/240
• ISO Sensitivity: Auto/100/200/400/800/1600/3200
• Operating Current: Max 500 mA at 5V
• Operating Time: 60 minutes (4K@30fps), 110 minutes (1080P@60fps), 135 minutes (1080P@30fps)
• Weight: 49 g (with battery) / 35 g (without battery)
• Dimensions: 66.5 × 40 × 20 mm

The RunCam 6 is ideal for drone operators who need a high-quality and reliable camera with extensive customization options. Its lightweight and compact size allow for easy integration into various platforms, while the replaceable battery and support for large memory cards make it convenient for extended shoots. USB-C, serial port, HDMI, and CVBS interfaces provide flexibility when connecting to controllers, monitors, and recording devices. EIS and GyroFlow support ensure smooth footage even in dynamic scenarios.

The RunCam 6 is an optimal choice for FPV enthusiasts and professionals who value a combination of high video quality, reliability, and portability.
