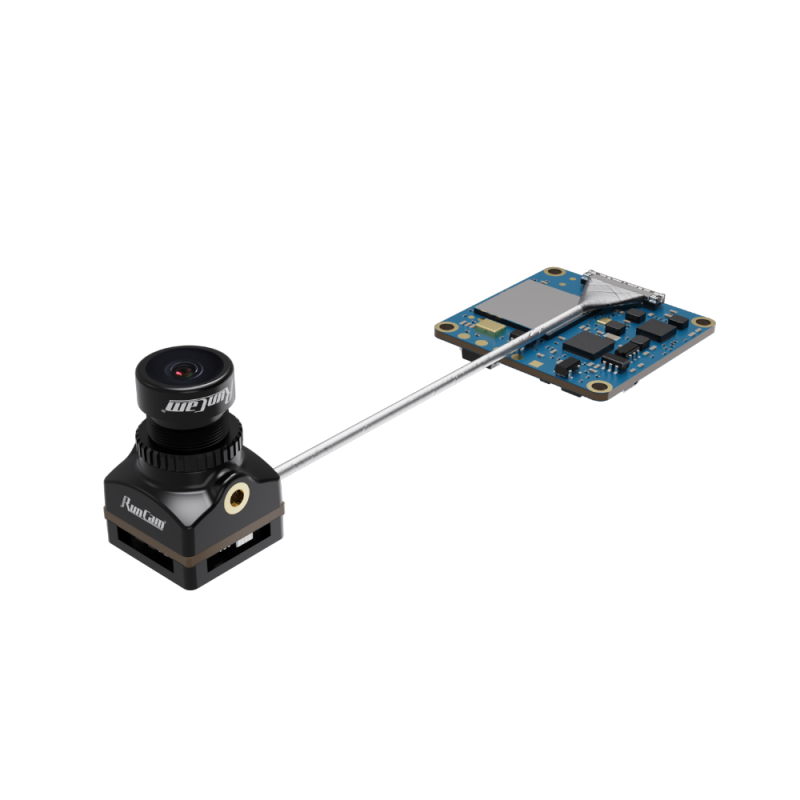

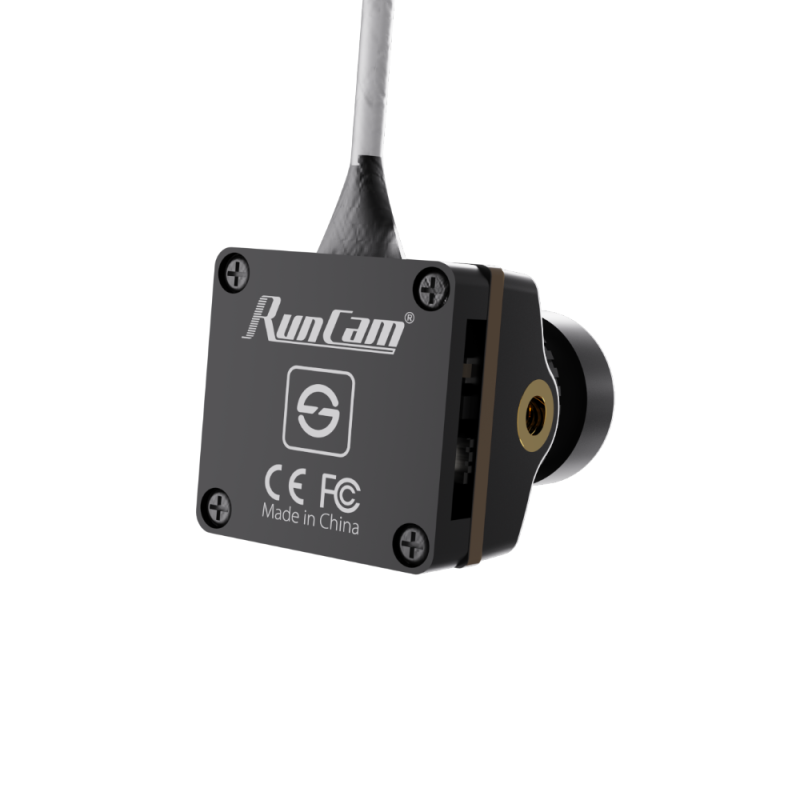

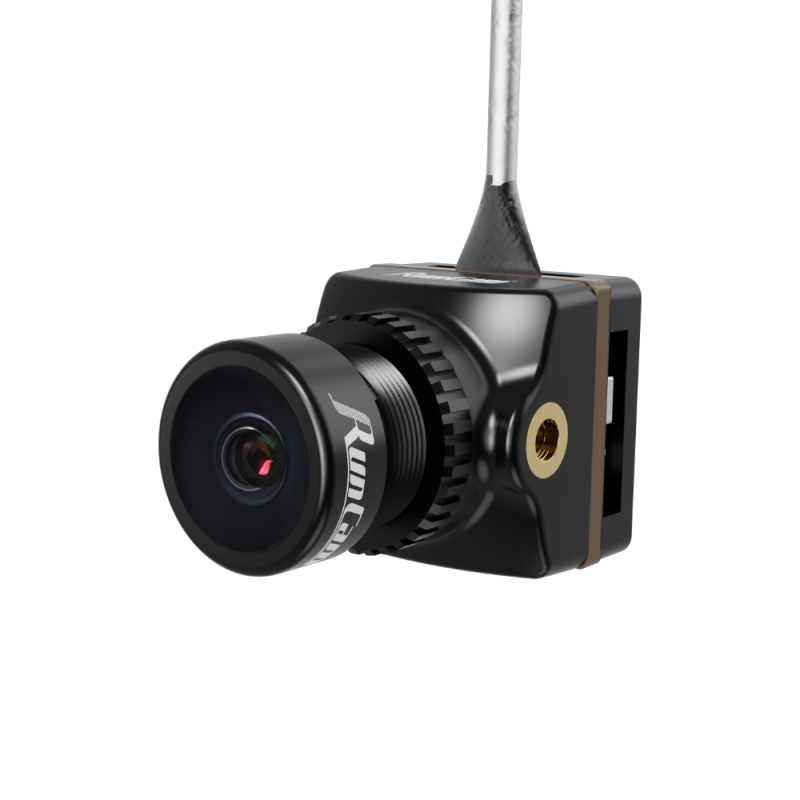

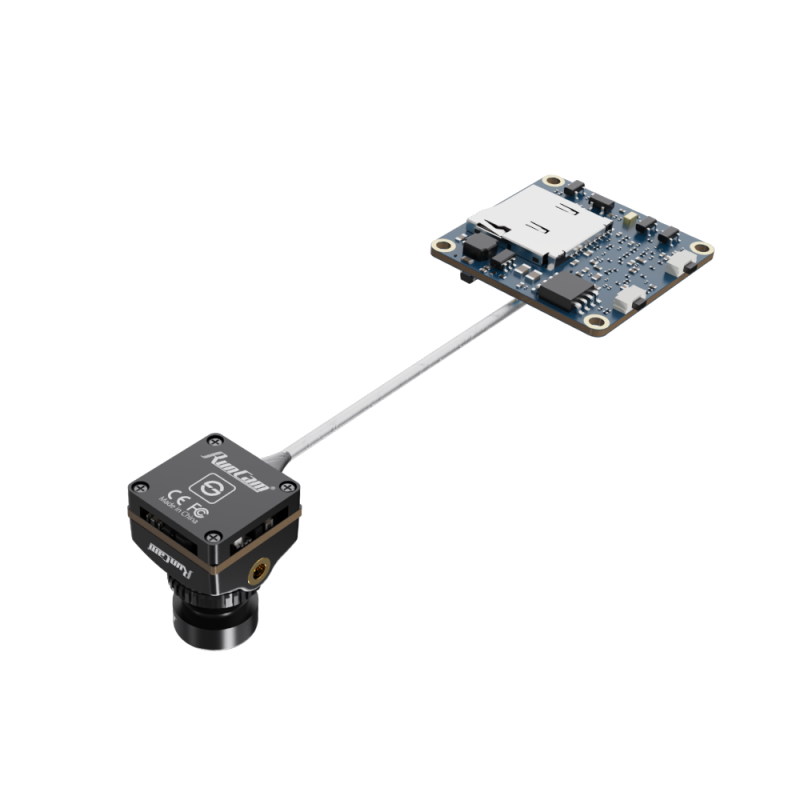

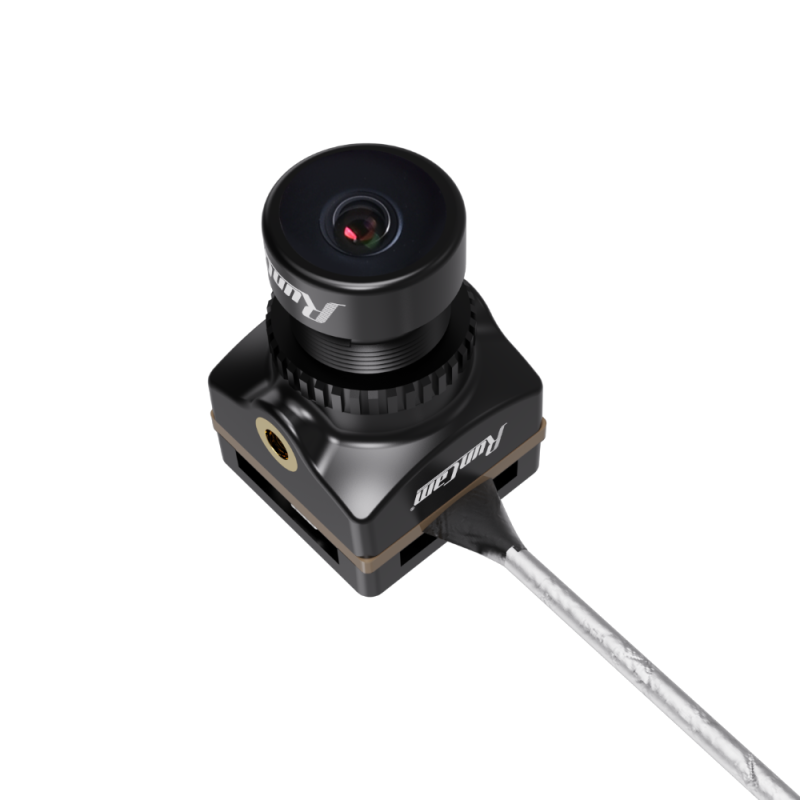

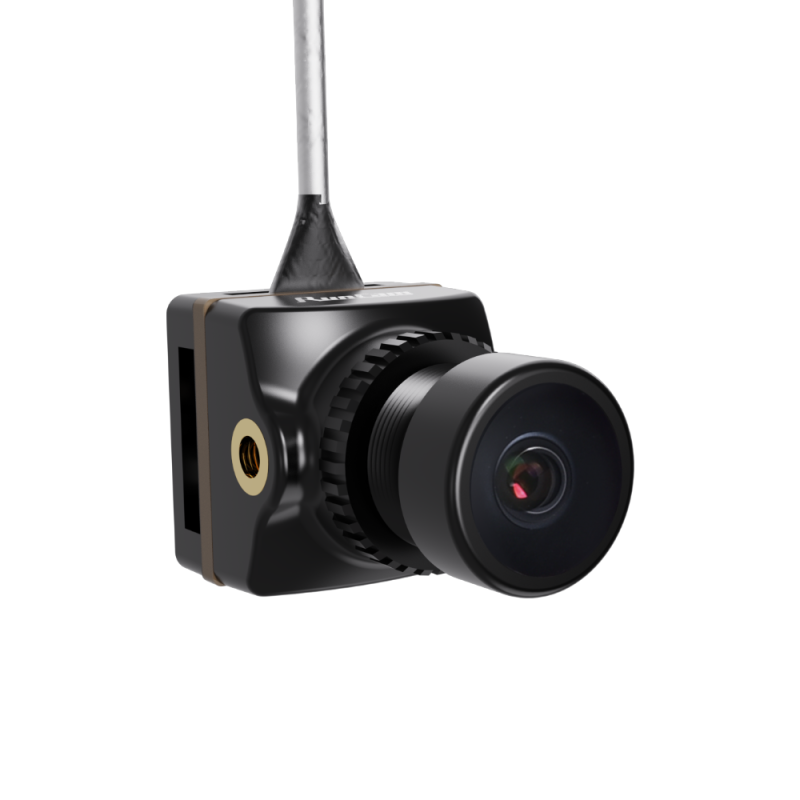

RunCam Split 4 V2 Camera — Compact 4K Camera for Drones

The RunCam Split 4 V2 from the RunCam brand is a high-quality compact camera for drones with a SONY 13MP sensor, providing clear and detailed video. The camera is ideal for FPV flights and aerial photography thanks to its wide 140° field of view and light weight of only 10.2 g, which minimizes additional load on the quadcopter's structure.

The RunCam Split 4 V2 supports video recording in MP4 format at high resolutions: 4K@30fps, 2.7K@60fps / 2.7K@50fps, and 1080P@60fps. This flexibility allows for smooth and detailed video for subsequent editing or viewing. The TV mode can switch between NTSC (720×480) and PAL (720×576).

The camera is equipped with a convenient UART interface for connecting to any drone control system. Devices store recordings on a Micro SD card up to 128 GB ( SAMSUNG 128GB U3 recommended), and the SD card file system format must be exFAT to avoid video recording errors.

The camera is powered within DC 5-20V; it is important to remember that direct power from the battery is not allowed due to the risk of voltage spikes that can damage the camera. The maximum operating current is 450mA @ 5V.

Dimensions and Mounting

The Split 4 V2 has compact dimensions and mounting parameters that allow it to be installed on most quadcopters and drones: lens module — 14×14 mm, distance between mounting holes — 25.5×25.5 mm, board size — 29×29 mm. Thanks to its low weight (10.2 g) and compact form factor, the camera does not significantly affect the center of gravity and flight characteristics of the aircraft.

Key Technical Specifications

• Model: Split 4 v2
• Image Sensor: SONY 13MP
• Field of View (FOV): 140°
• Video Resolution: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@60fps
• Video Format: MP4
• TV Mode: NTSC (720×480) / PAL (720×576) (switchable)
• Interface: UART
• Maximum Micro SD Card Capacity: up to 128 GB (SAMSUNG 128GB U3 recommended)
• SD Card File System Format: exFAT
• Input Power Voltage: DC 5-20V (direct battery power prohibited)
• Lens Module Size: 14×14 mm
• Mounting Hole Distance: 25.5×25.5 mm
• Board Size: 29×29 mm
• Maximum Operating Current: 450mA @ 5V
• Weight: 10.2 g

The RunCam Split 4 V2 is an excellent choice for pilots who need a compact yet functional camera for high-quality aerial photography and FPV flights. It combines high resolution, a wide field of view, compatibility with popular memory cards, and easy integration into a drone system.
