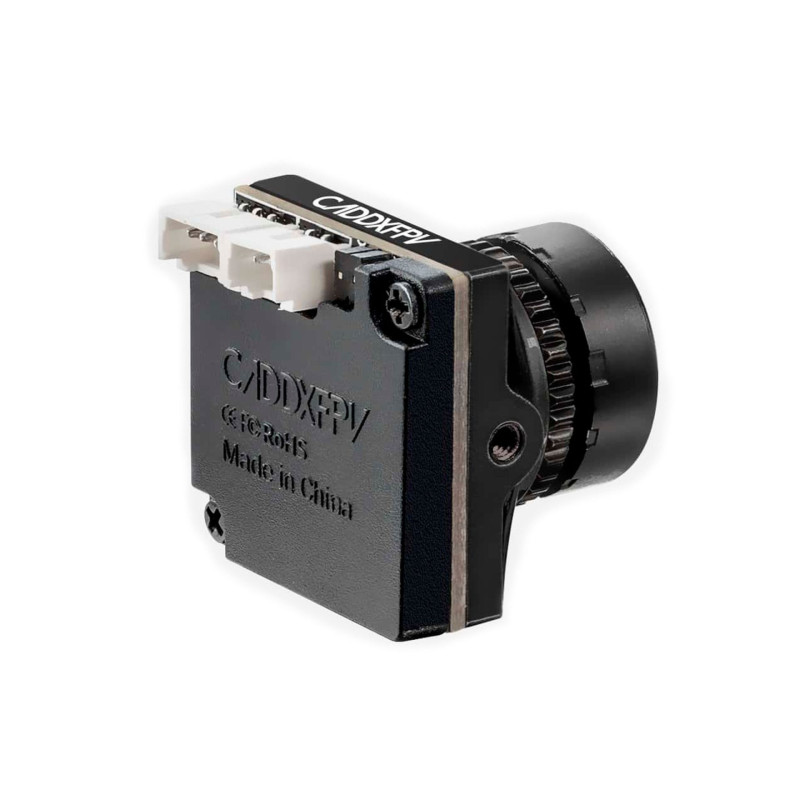

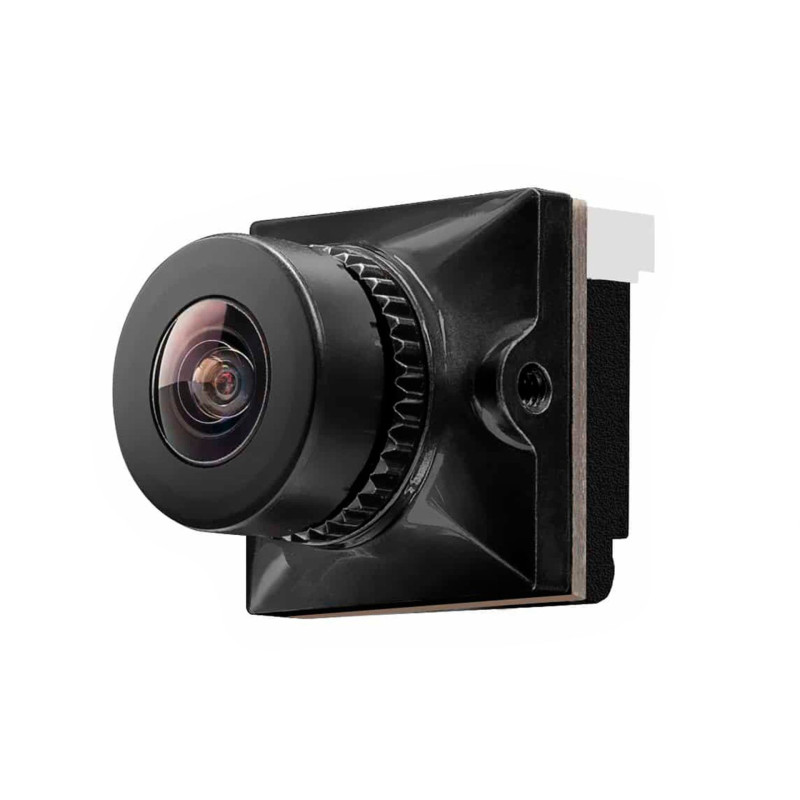

Caddx Ratel 2 Camera — Compact FPV Camera for Drones
Introducing the Caddx Ratel 2 Camera from the CADDXFPV brand — a lightweight, versatile, and highly sensitive modular camera designed for racing, freestyle, and cinematic drones. This model combines a 1/1.8" Starlight sensor with 1200TVL resolution, a wide 165° field of view, and a 2.1mm lens, ensuring excellent detail with minimal distortion and stable CVBS video output for transmitters and recorders.
Key Features
- High Sensitivity: 1/1.8" Starlight sensor allows operation at a minimum illumination of 0.0001LUX.
- Image Quality: 1200TVL for clear video during transmission and recording.
- Wide Field of View: FOV 165° for maximum visibility during maneuvers.
- Lens: 2.1mm provides an optimal balance between field of view and distortion level.
- Standard Versatility: NTSC & PAL with switchable options; aspect ratio 4:3 & 16:9 also switchable.
- Enhanced Processing: Super WDR preserves details in high-contrast scenes, 3DNR reduces digital noise in low light.
- Day/Night Modes: Auto / Color / B/W / EXT for flexible adaptation to lighting conditions.
- Wide Power Range: 5-40V input voltage allows connection to most controllers and BECs without additional converters.
Technical Specifications
| Characteristics | Value |
|---|---|
| Brand | Caddx |
| Name | Ratel 2 |
| Sensor | 1/1.8” Starlight |
| Resolution | 1200TVL |
| FOV | 165° |
| Lens | 2.1 mm |
| TV System | NTSC & PAL (switchable) |
| Aspect Ratio | 4:3 & 16:9 (switchable) |
| WDR | Super WDR |
| DNR | 3DNR |
| Min. Illumination | 0.0001LUX |
| Video Output | CVBS |
| Day/Night | Auto/Color/B/W/EXT |
| Shutter Speed | PAL: 1/50100,000; NTSC: 1/60100,000 |
| Input Voltage | 5-40V |
| Operating Temperature | -20°C ~ +60°C |
| Weight | 5.9g |
| Dimensions | 191920mm |
The Caddx Ratel 2 is designed for pilots who need a reliable camera with excellent low-light performance and minimal weight — just 5.9g. Its compact dimensions allow for easy integration into small frames, maintaining maneuverability and extending flight time. The model is compatible with most transmitters thanks to its CVBS output and switchable PAL and NTSC standards. Super WDR ensures good detail in high-contrast lighting, while 3DNR significantly reduces noise in night shots. With a wide input voltage range of 5-40V, the camera easily connects to typical power systems without additional adapters.
Package Contents:
1x Caddx Ratel 2 Camera
1x Caddx OSD Joystick
1x 2Pin Silicon Cable
1x 3Pin Silicon Cable
1x 1.5mm Allen Wrench
The Caddx Ratel 2 Camera is suitable for both amateurs seeking better image quality in evening flights and professionals who value compactness, wide compatibility, and advanced customization modes. It is ideal for various tasks in the Drones & Quadcopters > Cameras category, providing a reliable video stream and fine-tuning capabilities for your equipment.
