Product Code: FA111-KB 0038 IG-111
In Stock
600 грн.
Buy this product in 1 click:
Main specifications
Application:
For Outdoor Use
Bending moment, Nm:
0.56
Cable availability:
No
Cable brand:
LMR240
Cable Design:
Flexible
All specifications
We will deliver this product:
Payment
Description

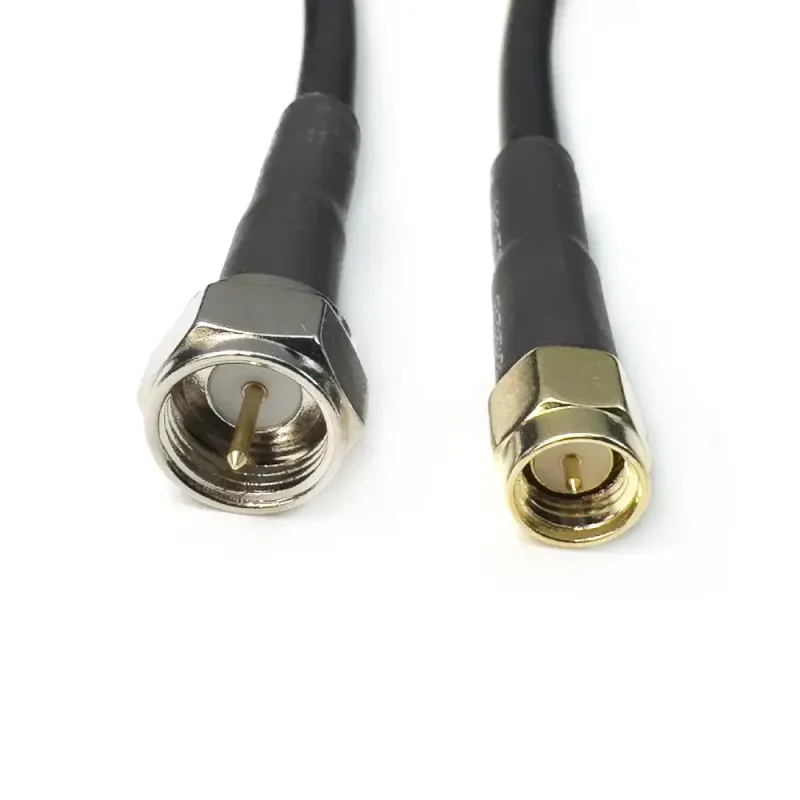

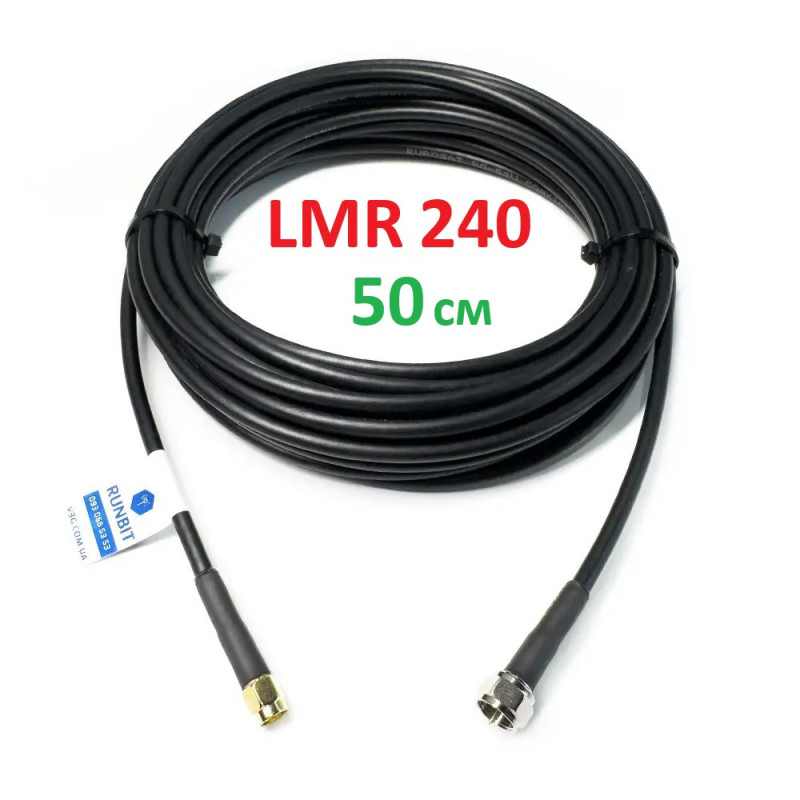

F male - SMA male pigtail cable adapter, 50 cm, 5.8 GHz, LMR240 low-loss is a high-tech connector that serves as a bridge between various devices used in wireless networks, video surveillance systems, amateur radio, and other areas where high-quality radio signal transmission is important.
Main applications of the F male - SMA male low-loss pigtail cable
- Wi-Fi networks: Expanding coverage and improving wireless signal quality by connecting external antennas.
- Video surveillance systems: Transmitting video signals over long distances without loss of quality.
- Amateur radio: Creating effective radio systems for receiving and transmitting signals.
- Other RF equipment: Connecting various devices such as radio modules, amplifiers, spectrum analyzers, etc.
Why choose this pigtail?
- High-quality materials: The use of high-quality LMR240 coaxial cable ensures minimal signal loss and connection durability.
- Optimal length: 50 cm is a universal length that allows for convenient equipment placement.
- Wide frequency range: Supports operation at 5.8 GHz, covering most modern wireless standards.
- Durable connectors: F and SMA connectors are made of metal and provide a reliable connection.
- Shielding: Protects the signal from external interference, ensuring stable data transmission.
Technical specifications of the F male - SMA male adapter with LMR240 cable
| Characteristic | Value |
|---|---|
| Connector type | F male - SMA male |
| Cable length | 50 cm |
| Cable type | LMR240 |
| Frequency range | up to 5.8 GHz |
| Impedance | 50 Ohm |
| Cable diameter | 6.1 mm |
| Insulation material | Foamed polyethylene |
| Temperature range | -40...+85 °C |
| Max power | 5.6 kW |
Advantages of using a pigtail cable
- Reliable signal transmission: Thanks to low loss and good shielding, the pigtail provides a stable signal even in high interference conditions.
- Easy installation: Connecting the pigtail does not require special skills and takes minimal time.
- Versatility: Suitable for a wide range of applications in RF systems.
- Durability: Made of high-quality materials, resistant to mechanical damage and environmental influences.
Design features of the F male - SMA male pigtail
- LMR240 coaxial cable: Provides low signal loss and high flexibility.
- Metal F and SMA connectors: Guarantee reliable connection and durability.
- Shielding: Protects the signal from external interference.
Package contents
- F male - SMA male pigtail cable - 1 pc.
Packaging
The pigtail is packed in individual packaging that protects it from damage during transportation and storage.
The F male - SMA male pigtail cable is an indispensable element for any amateur radio enthusiast, wireless network specialist, or video surveillance system. High quality, reliability, and versatility make it an excellent choice for connecting various RF equipment.
Specifications
Application
For Outdoor Use
Bending moment, Nm
0.56
Cable availability
No
Cable brand
LMR240
Cable Design
Flexible
Cable type
Coaxial
Central conductor material
Copper
Constant distribution
83
Core material
Copper
Execution of 1 screen
Foil
Execution of screen 2
Wire
Flat compression strength, kg/mm
0.36
Insulation material
Polyethylene
Length in package
50
Material of 2 screens
Copper
Maximum bend radius
63.5
Maximum operating temperature
85
Minimum bend radius
19.1
Minimum operating temperature
-40
Mount type
External
Nominal diameter of the central conductor
1.42
Nominal diameter with sheath
3.81
Nominal diameter with shield
3.94
Nominal shell wall thickness
1.58
Number of Cores
1
Packaging
Skein
Power
5600
Power cable availability
No
Protection Material
Dielectric
Protection Type
Braid
Purpose
For Communication Systems
Screen availability
Yes
Screen material 1
Aluminum
Shell color
Black
SWR (Standing Wave Ratio)
< 1.2
Tensile strength, kg
36.3
Type
Adapter
Wave impedance
50
Weight
0.05
Working capacity, max
79.4
