Cable is cut only after full prepayment!

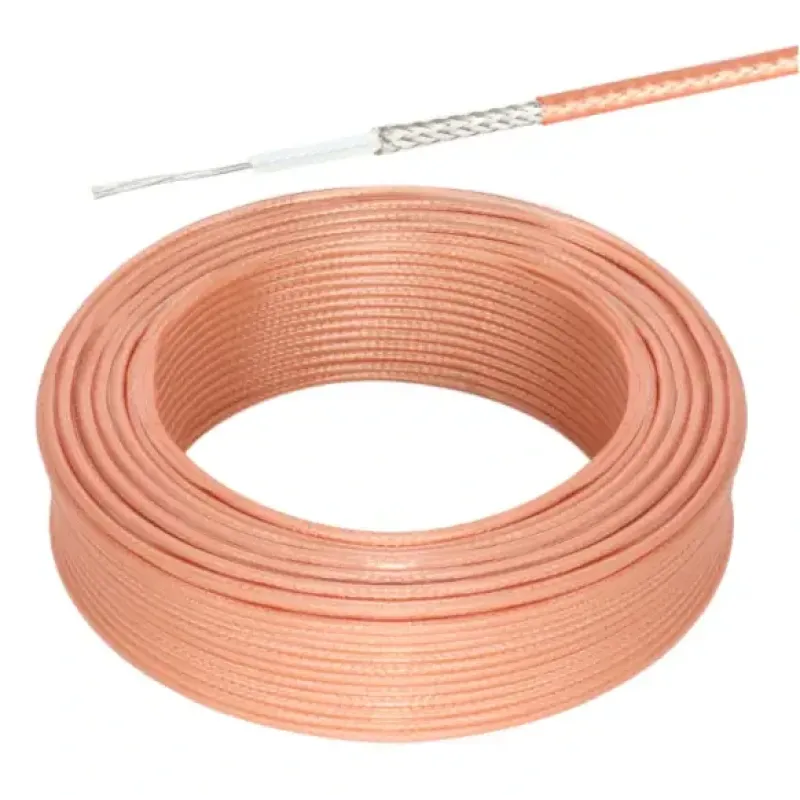

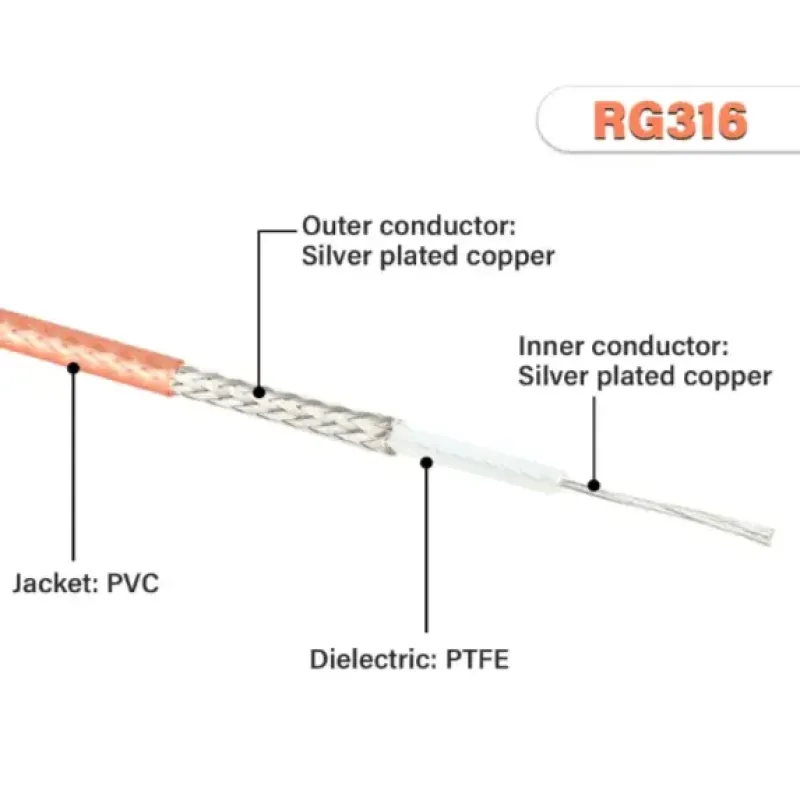

Coaxial cable RG316, diameter 2.5mm, 50 Ohm, 7x0.17 silver-plated copper-clad steel conductor, braid - silver-plated copper, outer jacket - PTFE.
RG-316 cable is a high-quality radio frequency coaxial cable. It uses fluoroplastic as a dielectric and has a silver-plated central conductor and braid. The features of fluoroplastic as an insulator in the cable are:
- heat resistance, which allows for high-quality soldering of RG-316 cable with a small diameter;
- low shrinkage coefficient when heated;
- resistance to aggressive environments;
- resistance to aging.
RG316 is the most popular brand of coaxial cable for manufacturing antenna adapters (pigtails) and connecting radio device elements over short distances. RG-316 is a very thin and flexible cable, making it easy to place inside device enclosures and often used to connect radio modules to cellular, FPV, and WiFi antennas.
Frequency, MHz | | Loss, dB/100m | | Power, W |
100 | 26.2 | 375 |
400 | 53.2 | 185 |
1000 | 85.6 | 120 |
2000 | 123.3 | 80 |
3000 | 153.1 | 65 |
6000 | 223.4 | 48 |
