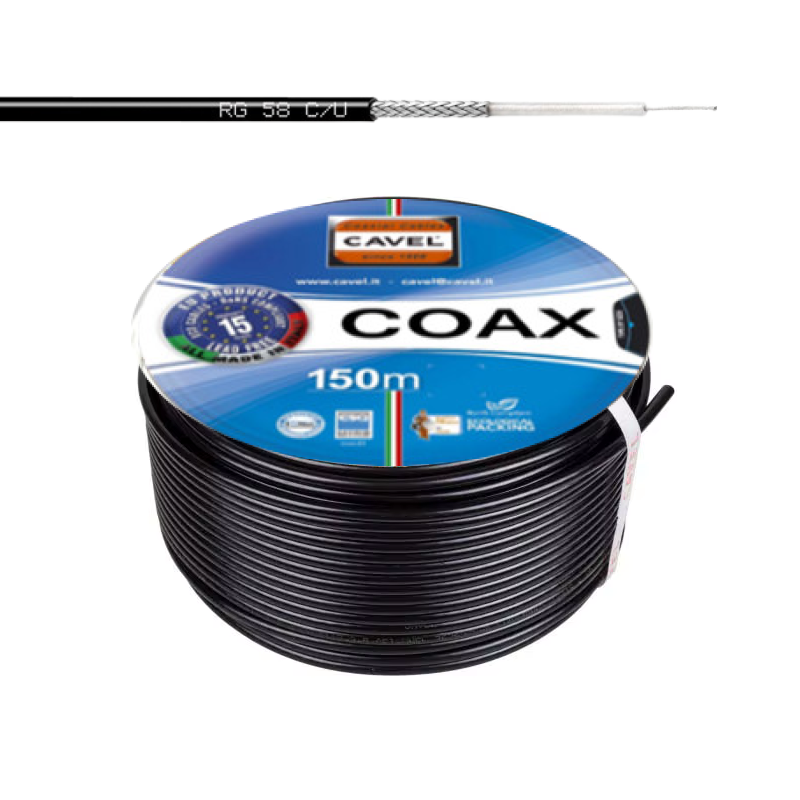

CAVEL RG58 C/U coaxial cable, 50 Ohm, 1 GHz, Italy, 100% is designed for transmitting high-frequency signals in various applications, including:
- Radio communications: connecting antennas, transmitters, receivers, radio stations.
- Computer networks: connecting Ethernet network components (thin Ethernet).
- Measuring equipment: for use in laboratory and industrial measuring instruments.
- Television and video surveillance: video signal transmission in analog video surveillance systems.
- Automotive electronics: connecting GPS, GSM antennas and other devices.
The CAVEL RG58 C/U cable is ideal for a wide range of applications, including connecting radio transmitters and receivers, use in measuring instruments, application in radar systems, connecting antennas, and data transmission at frequencies up to 1 GHz. Due to its flexibility, it is often used in mobile installations and amateur radio.
Key features of CAVEL RG58 C/U coaxial cable
| Characteristic | Value |
|---|---|
| Cable type | Coaxial |
| Model | RG58 C/U |
| Manufacturer | CAVEL (Italy) |
| Impedance | 50 ± 2 Ohm |
| Maximum operating frequency | 1 GHz |

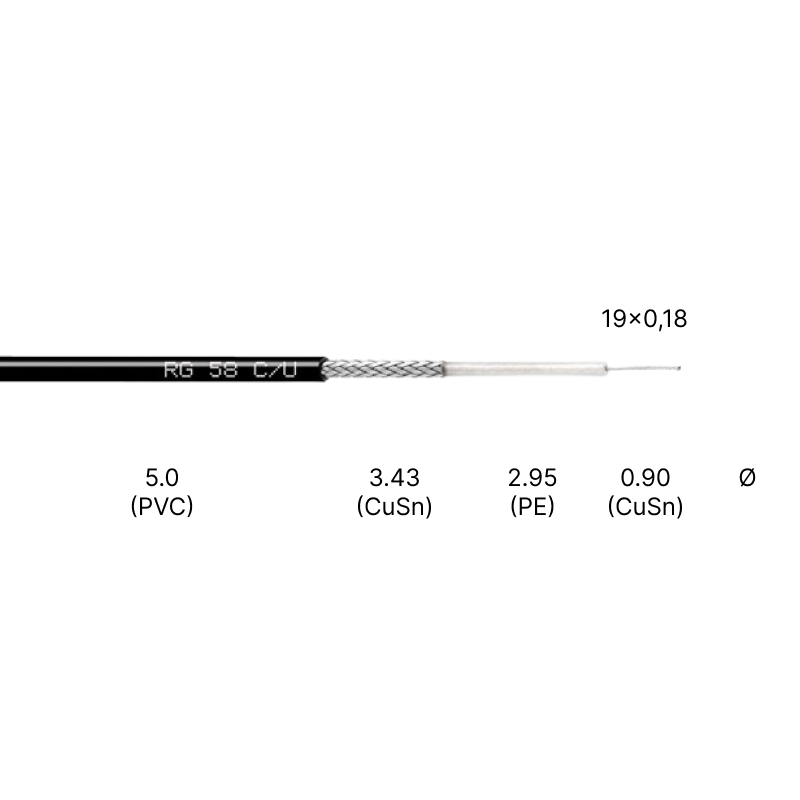

| Inner conductor | Stranded tinned copper (CuSn) 19x0.18, Ø 0.90 ± 0.01 mm |
| Dielectric | Solid polyethylene (PE), Ø 2.95 ± 0.10 mm |
| Shielding | Braid of tinned copper wires (CuSn), 93% coverage |
| Outer sheath | Polyvinyl chloride (PVC), black (RAL 9011), Ø 5.00 ± 0.10 mm |
| Minimum bending radius | 25 mm (single), 50 mm (repeated) |
| Maximum tensile strength | 90 N |
| Minimum installation temperature | -5 °C |
| Operating temperature | -20 / +70 °C |
| Capacitance | 100 ± 2 pF/m (@1kHz) |
| Velocity factor | 66 % |
| Inner conductor resistance | 38.50 Ohm/km |
| Outer conductor resistance | 16.50 Ohm/km |
| Loop resistance | 55 Ohm/km |
| Sheath insulation voltage | 3 kV (spark test) |
| Return loss (SRL) | >26 dB (30-300 MHz), >25 dB (300-600 MHz), >24 dB (600-1000 MHz) |
| Screening attenuation (SA) | >50 dB (30-1000 MHz) |
Advantages of CAVEL RG58 C/U coaxial cable
The CAVEL RG58 C/U cable has several advantages, including:
- High quality from Italian manufacturer CAVEL: Guarantees reliability and durability.
- Compliance with MIL-C-17 standard: Confirms high technical characteristics and suitability for military and critical systems.
- Flexibility due to stranded central conductor: Convenient for installation and use in conditions requiring cable bends.
- Optimal characteristics for frequencies up to 1 GHz: Suitable for a wide range of radio frequency applications.
- Good shielding (93% braid coverage): Provides protection against electromagnetic interference.
Design features and comparison with WL195N
The CAVEL RG58 C/U cable has a stranded tinned copper central conductor, which provides it with high flexibility. The dielectric is solid polyethylene (PE), which has slightly higher signal losses compared to the foamed polyethylene used in the WL195N cable. The RG58 C/U shielding consists of a single tinned copper braid with 93% coverage.
Unlike the RG58 C/U, the CAVEL WL195N cable has a solid central conductor, which makes it more rigid but better for stationary installation and signal transmission at high frequencies with lower losses. The WL195N also features double shielding (aluminum foil and braid), providing better protection against interference. The WL195N's dielectric is foamed polyethylene, which contributes to lower signal attenuation, especially at high frequencies.
Thus, the RG58 C/U is better suited for applications where flexibility and mobility are important, such as connecting car antennas or in amateur radio at frequencies up to 1 GHz. The WL195N is a better choice for stationary systems requiring low signal losses at higher frequencies, such as in Wi-Fi, 4G/5G, and professional radio communications.
Losses in RG58 C/U and WL195N cables depending on frequency
| Frequency, MHz | Attenuation in RG58 C/U, dB/100m | Frequency, MHz | Attenuation in WL195N, dB/100m |
|---|---|---|---|
| 10 | 2.7 | 50 | 8.00 |
| 100 | 14.9 | 150 | 13.00 |
| 150 | 14.4 | 220 | 15.80 |
| 450 | 25.6 | 450 | 22.70 |
| 900 | 36.4 | 900 | 32.20 |
| 1000 | 56 | 1500 | 42.50 |
| 1500 | 47.6 | 1800 | 47.00 |
| 1800 | 52.5 | 2000 | 49.80 |
| 1800 | 86 | 2500 | 56.00 |
| 2000 | 55.4 | 3000 | 61.00 |
| 2100 | 57.2 | 4000 | 72.50 |
| 2400 | 107 | 4800 | 80.50 |
| 2500 | 62.3 | 5800 | 92.00 |
| 3500 | 76.3 | ||
| 5800 | 98.1 |
Comparison of Cavel RG58 C/U and WL195N cables
Both cables are coaxial and used in radio frequency applications, but have key differences in characteristics and application.
| Characteristic | RG58 C/U | Cavel WL195N |
|---|---|---|
| Characteristic impedance | 50 Ohm | 50 Ohm |
| Center conductor | Stranded conductor (flexible) | Solid copper conductor (rigid) |
| Shielding | Single copper braid | Double shield (foil + braid) |
| Dielectric | Solid polyethylene (higher attenuation) | Foamed polyethylene (low loss) |
| Diameter | ~5 mm | ~6-7 mm |
| Attenuation at 1000 MHz | ~54.2 dB/100m | ~32.2 dB/100m |
| Frequency range | Up to 1 GHz | Up to 5.8 GHz |
| Flexibility | Flexible | Less flexible |
| Application | Amateur radio, mobile installations | Stationary systems, high frequencies, low loss |
| Price and availability | Cheaper, common | More expensive |
Compatible connectors
The CAVEL RG58 C/U cable is compatible with standard RG58 cable connectors, including BNC, TNC, UHF, and SMA connectors.
CAVEL RG58 C/U coaxial cable package contents
The package includes only the ordered length of CAVEL RG58 C/U coaxial cable. Connectors are purchased separately.
Packaging
The CAVEL RG58 C/U coaxial cable is usually supplied wound on a reel or in a coil, depending on the ordered length. The packaging ensures cable protection during transportation and storage.
We guarantee 100% originality of the CAVEL RG58 C/U cable, confirmed by relevant certificates and manufacturer's markings. By purchasing from us, you can be confident in the quality and reliability of the product.
By choosing CAVEL RG58 C/U coaxial cable, you get a guaranteed high-quality product that will ensure stable and reliable operation of your system. This is an investment in impeccable quality and durability.
If you need a reliable and high-quality coaxial cable for use in radio frequency systems with frequencies up to 1 GHz, the CAVEL RG58 C/U will be a good choice due to its flexibility and compliance with the MIL-C-17 standard. For applications requiring lower losses at higher frequencies, the CAVEL WL195N would be a better option.
