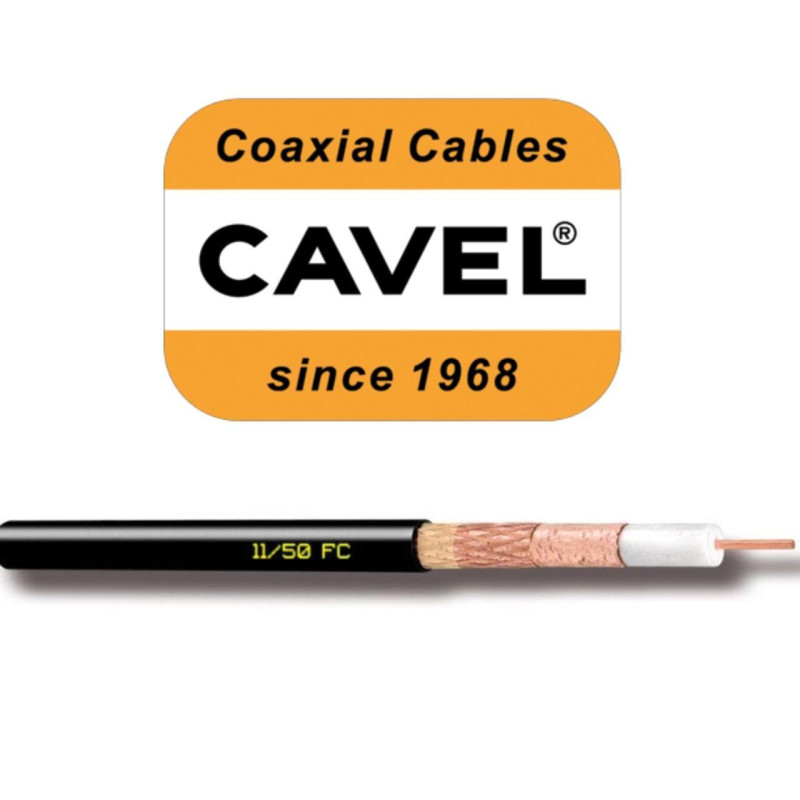

The original high-quality CAVEL 11/50FC cable is manufactured in Italy by CAVEL.

This is an RF coaxial cable with a characteristic impedance of 75 Ohm, an outer diameter of 7.3 mm, a black outer jacket, and a 100% copper center conductor. It provides good shielding against external electromagnetic interference and environmental resistance.

Thanks to high-quality materials, the cable is easy to solder.

If you are looking for a copper RG 11 - 75 Ohm coaxial cable, then CAVEL 11/50FC will be an excellent alternative for your project due to its excellent electromagnetic and mechanical properties.

The CAVEL 11/50FC coaxial cable (which you can confidently use as an RG11 coaxial cable) boasts European manufacturing quality, excellent operational and technical characteristics, and an affordable price. Below, we provide the parameters of the CAVEL 11/50FC cable, so you can compare them with the characteristics of the RG 11 cable.

RF coaxial cables are used for transmitting high-frequency signals in various electronic equipment, especially in transmitters and receivers, transceivers, radio and TV transmitters, and antennas.

Various mechanical, temperature, and electrical characteristics of coaxial cables allow them to be used for transmitting signals up to 3000 MHz.

CAVEL 11/50FC Technical Specifications

General

Manufacture - Italy

Standard Compliance - MIL-C-17

Cable Color - Black

Outdoor Installation - Yes

Underground Installation - Yes

Construction

Center Conductor:

Material - Cu-copper

Diameter - 1.3 mm

Dielectric:

Material PEG - polyethylene

Diameter - 4.8 mm

Shield:

Braid Material - Cu-copper

Coverage - 59%

Diameter - 5.30 mm

Outer Jacket:

Material - PE-polyethylene

Diameter - 7.3 mm

Physical Parameters

Copper Weight - 20.50 kg / km

Cable Weight - 47.50 kg / km

Minimum Bending Radius for Single Bends - 50 mm

Multiple Bends - 50 mm

Tensile Strength for Cable - 200 N

Electrical Parameters

Characteristic Impedance - 75 Ohm

Capacitance - 52 pF / m

Velocity of Propagation - 85%

Attenuation at 20 ° C (dB / 100 m):

5 MHz — 1.5

10 MHz — 2.10

30 MHz - 2.90

50 MHz — 3.80

200 MHz — 7.90

300 MHz — 9.70

470 MHz — 12.00

862 MHz — 16.80

1000 MHz — 17.90

1750 MHz — 24.80

2150 MHz — 27.30

2400 MHz — 29.10

3000 MHz — 33.00

Return Loss:

5 - 470 MHz > 30 dB

470 - 1000 MHz > 28 dB

1000 - 2000 MHz > 26 dB

2000 - 3000 MHz > 22 dB

Breakdown Voltage - 8 kV

The cable is easy to solder.

Price is per linear meter.

Minimum order amount 300 UAH.

We can manufacture any other cable products according to your requirements.

A full range of consumables is available in stock.
