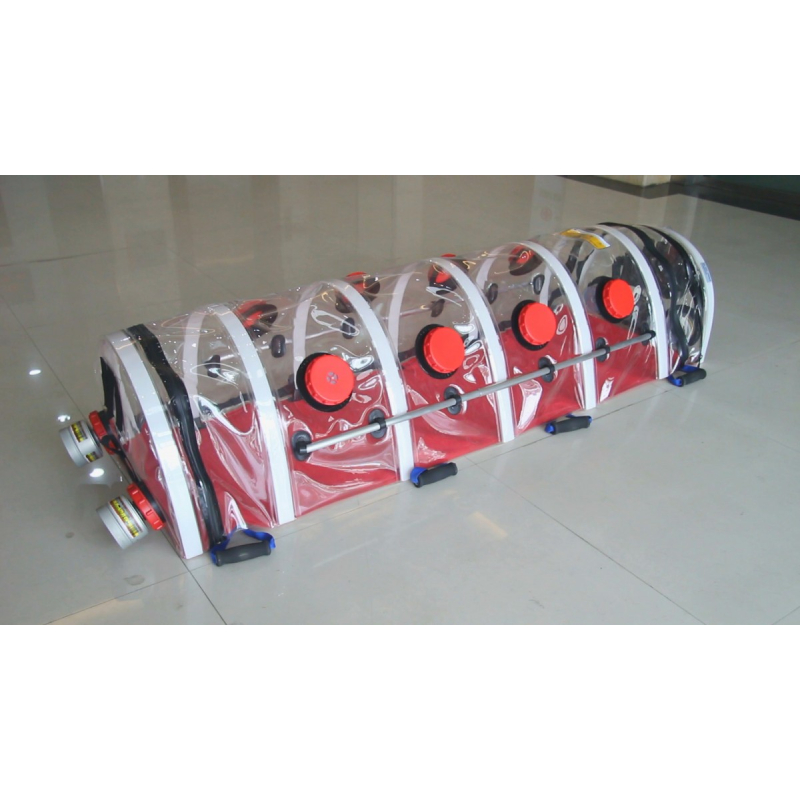

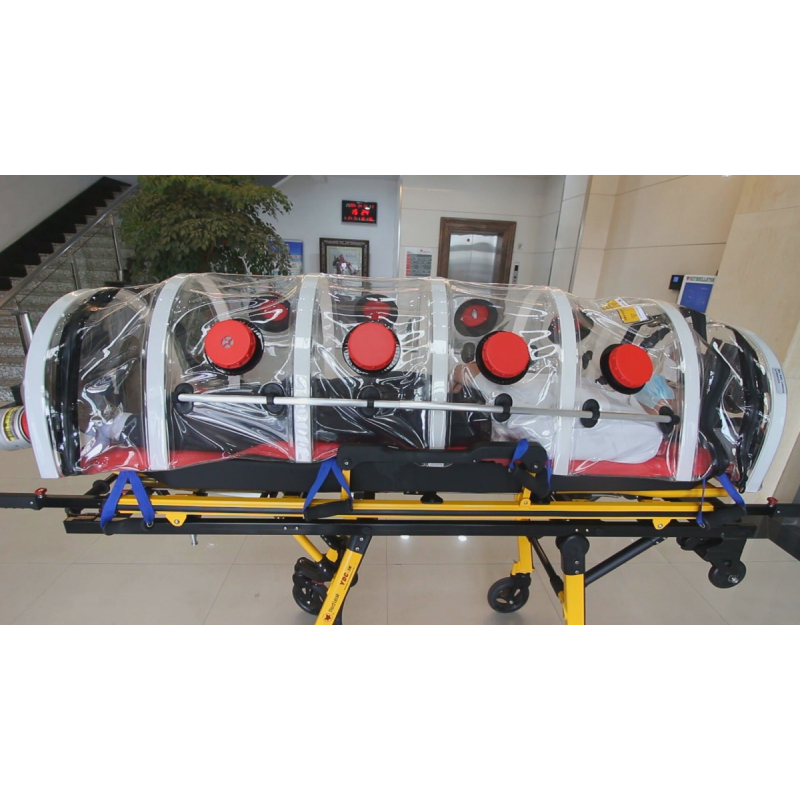

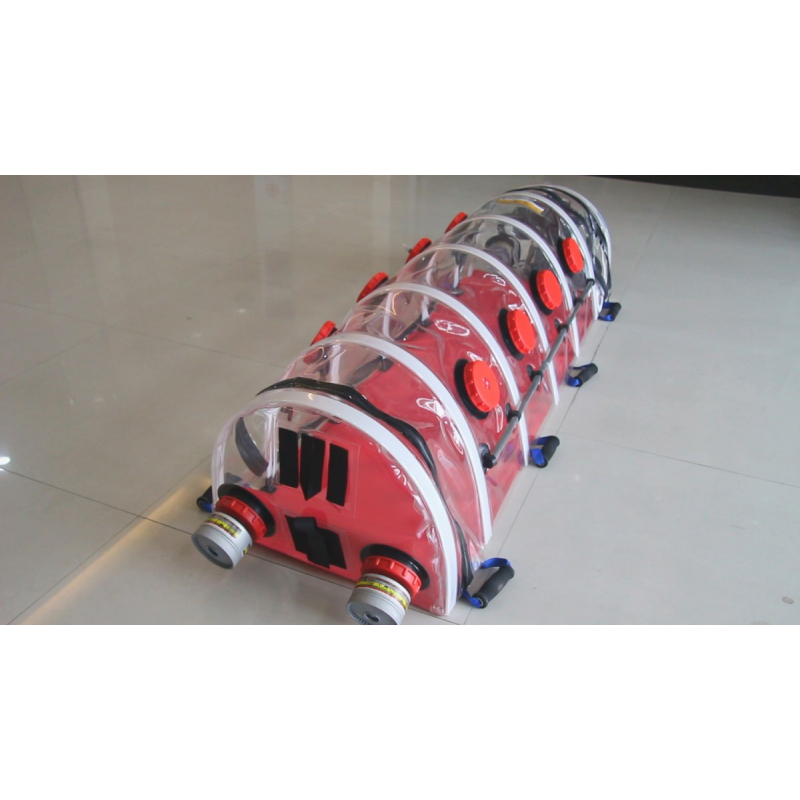

Isolator
The isolator is primarily used for the isolated transport of patients suspected or identified with respiratory infectious diseases in environments with toxic gases (such as gas bomb contamination).
The isolator body is made of high-quality, durable transparent material. Sealing is achieved with a zipper.
The isolator operates on the principle of positive and negative pressure. The positive pressure principle prevents toxic gas from entering the isolator. Negative pressure prevents contaminated air from escaping the isolator to the outside.

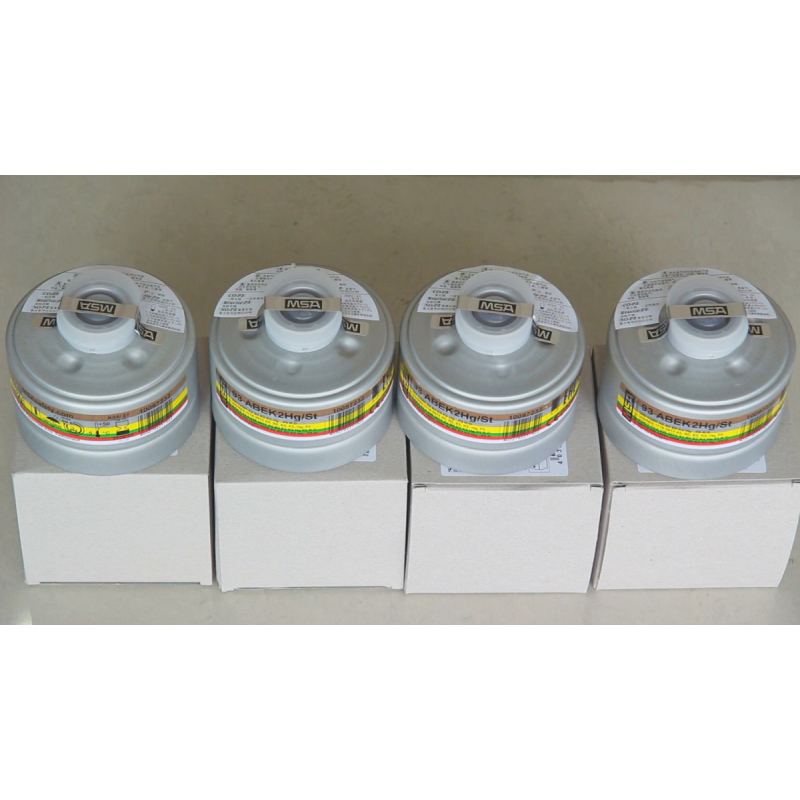

The filter tank can provide highly efficient filtration of external toxic gas or internal contaminated gas to ensure that the filtered gas is clean.

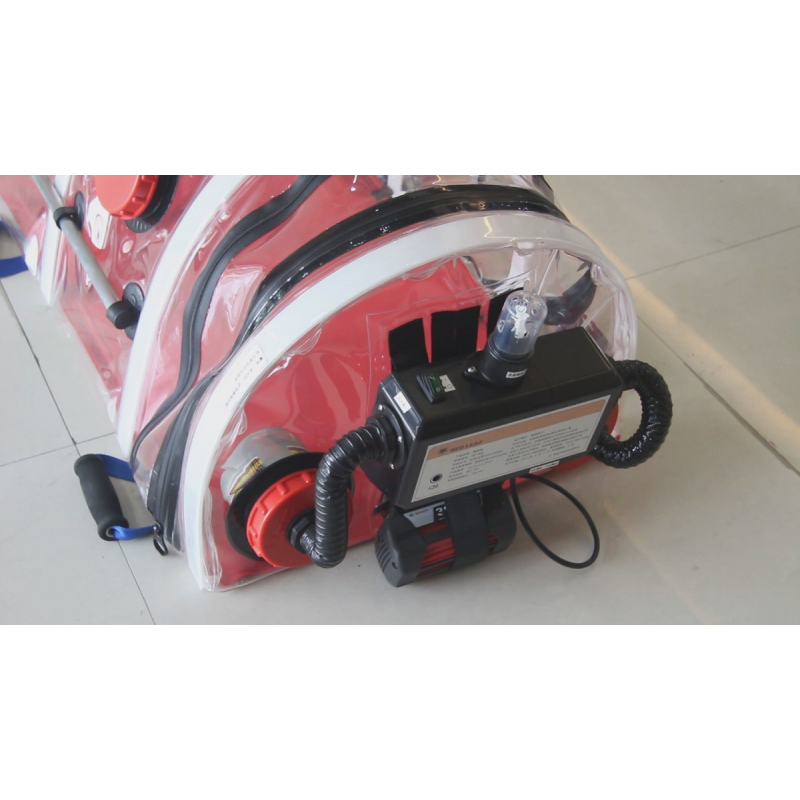

The fan with a lithium battery can operate continuously for at least 5 hours.
The cabin is equipped with 8 sealing covers; medical personnel must use rubber gloves to open the sealing covers, which is convenient for examining medications, food, and patients.
The oxygen access valve, instrument communication port, and infusion tube opening can be connected with sealing covers.
Technical Specifications for Model NP-320
| Parameter | Value |
|---|---|
| Model | NP-320 |
| Unfolded size (L x W x H) | 195x57x43 cm |
| Folded size (L x W x H) | 126x60x25 cm |
| Net weight | 17 kg |
| Packaging (quantity) | 1 |
| Package size (L x W x H) | 123x40x54 cm |
| Gross weight | 18 kg |
Technical Specifications
| Parameter | Value |
|---|---|
| Blower negative pressure | > 20 Pa |
| Airflow | >100 L/min |
| Power supply | Battery: BOSCH 36V.4Ah or 12V DC, car power |
| Filtration efficiency | 0.3 micron > 99.9995 % |
| Consumption | 30 VA |
| Battery operating time | > 5 hours |
| Weight | 17 kg |
| Included accessories | Filter - 4 pcs, Rubber gloves - 1 pair, Air tube - 1 set, Battery and charger - 1 set, Motor housing and operating fan - 1 set |
