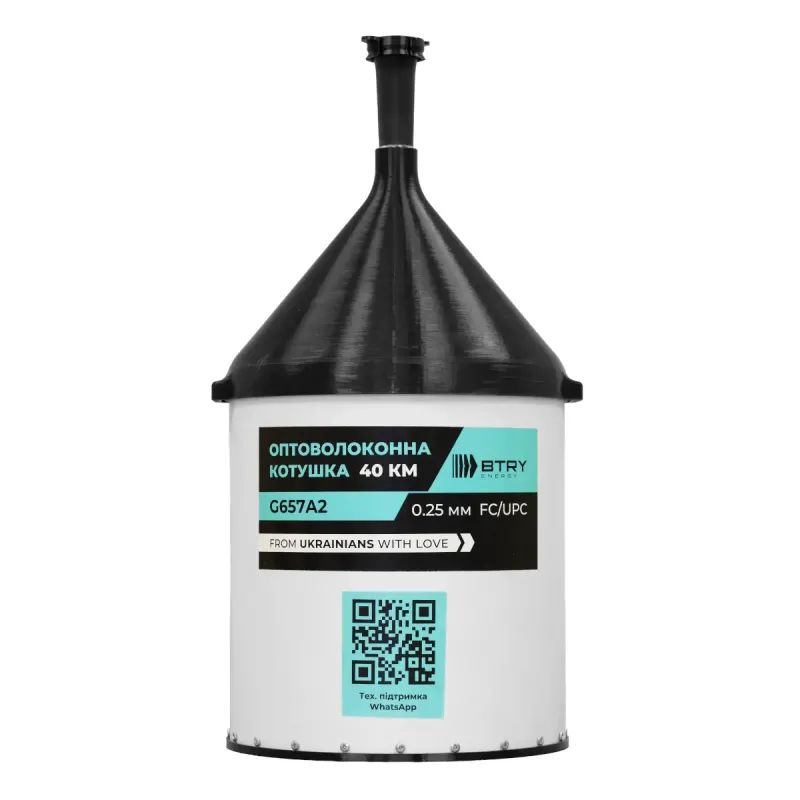

Fiber optic reel for FPV drone
Complete resistance to jamming and EW interception
The fiber optic module ensures secure signal transmission without using radio waves. This makes it immune to EW jammer effects — communication is not jammed, detected, or intercepted. Even in an active electronic warfare zone, the operator maintains clear video and stable drone control.
Well-suited for precision strikes and reconnaissance
The module is designed for front-line conditions where reliable communication is critical. Its characteristics:
- Cable length: 40 km
- Fiber optic diameter: 0.25 mm
- Weight: 3.83 kg
This solution allows for reconnaissance, pinpoint strikes, and special combat missions without signal loss.
Compatibility and installation
The reel easily integrates with a wide range of platforms:
- Quadcopters with a diameter of 10 inches or more
- FPV drones
- Attack platforms
- Ground robotic systems
The design is optimized for combat conditions — durable, lightweight, aerodynamic. Bracket mounting allows for quick installation even in field conditions.
Technical reliability
- Transmission interfaces: S-BUS, CRSF, Ethernet
- Power range: 5–30 V
- Bend resistance: 7.5 mm — for high maneuverability
This is a secure control channel, built to withstand combat loads.
Specifications
| Fiber optic type | Single-mode |
| Fiber optic diameter, mm | 0.25 |
| Connection type | FC/UPC |
| Weight (loaded), kg | 3.83 |
| Weight (unwound), kg | 1.19 |
| Dimensions (HxD), mm | 425x205* |
| Fiber optic model | G657A2 |
| Max cable length, km | 40.1 |
| Power source compatibility | from flight controller: 5 V |
| Fiber optic bend resistance, mm | 7.5 |
| Reel tilt angle | 20 degrees with bracket |
| Operating temperature, °C | From -10 to +50 |
| Dust and moisture protection | IP56 |
| Wavelength, nm | 1310/1550 |
| Country of manufacture | Ukraine |
