Product Code: FA87-UND-K 90-87
488 690 грн.
Buy this product in 1 click:
Main specifications
Coolant capacity: 13 L
Cooling: Liquid
Crankcase oil capacity: 13 L
Dimensions with housing (WxDxH): 2420x1000x1750 mm
Engine brand: KOFO
All specifications
We will deliver this product:
Payment
Description

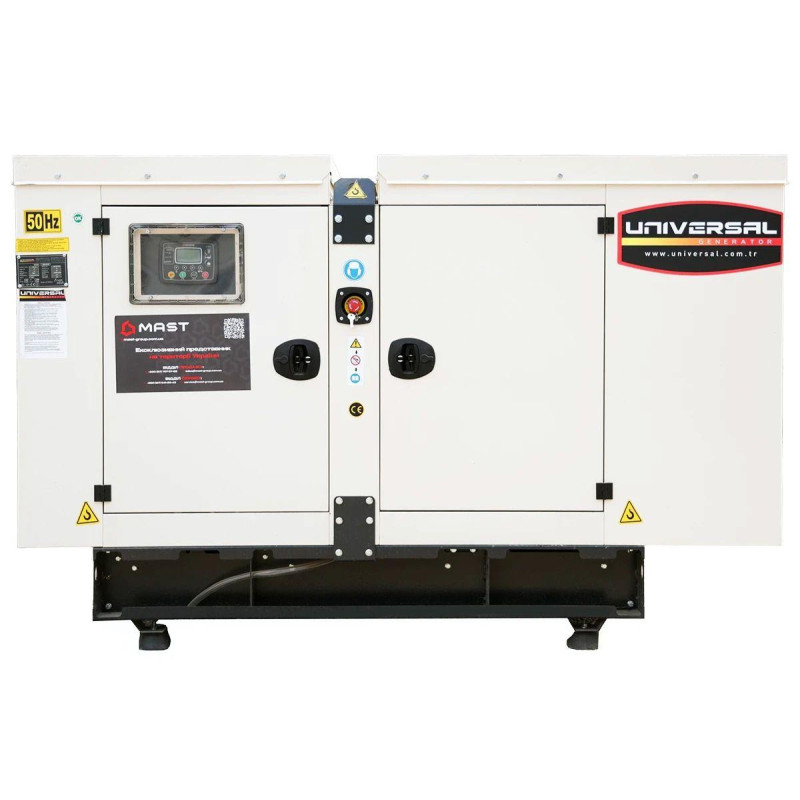

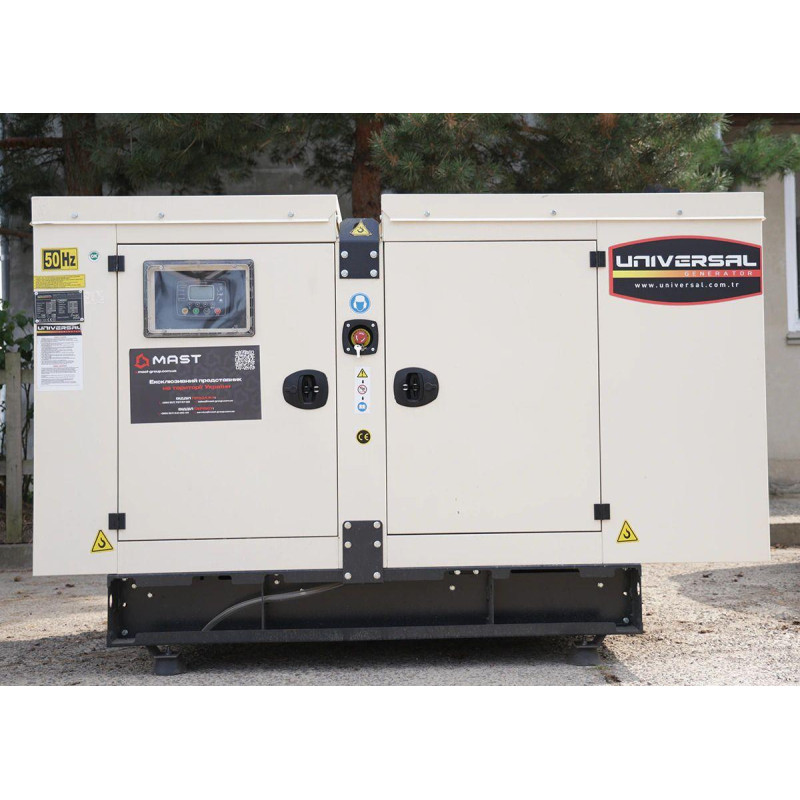

Diesel Generator UNIVERSAL UND-K 90 KVA — Universal

The UNIVERSAL UND-K 90 KVA diesel generator is an industrial autonomous power station designed for backup and continuous power supply in enterprises, workshops, and office premises. This model from the Universal brand combines high reliability, efficiency, and readiness for operation in challenging climatic conditions.

ManufacturerUniversal
ModelUND-K 90 KVA
ID45185
CategoryEnergy Independence > Generators

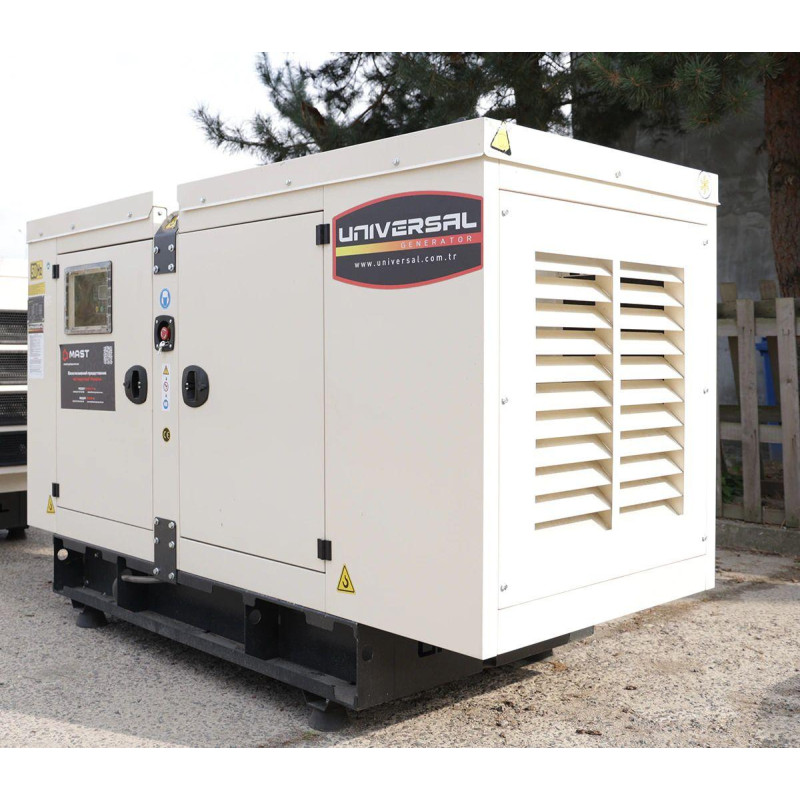

The KOFO engine ensures high efficiency with low fuel consumption, making this generator an optimal choice for enterprises requiring long-term power backup. The all-weather casing reliably protects internal components and allows outdoor installation without additional shelter. An important advantage is the built-in automatic coolant preheating and battery charging function, which guarantees quick and reliable startup in cold weather.

The casing is made of galvanized steel with powder coating, which increases resistance to corrosion and external factors. Universal Generator generators feature a robust design and a maintenance-free bearing system, reducing operating costs.

Electronic voltage regulator: BS 4999-5000; CEI EN 60034-1; IEC 60034-1; VDE 0530, OVE M10, NF 51-100,111;

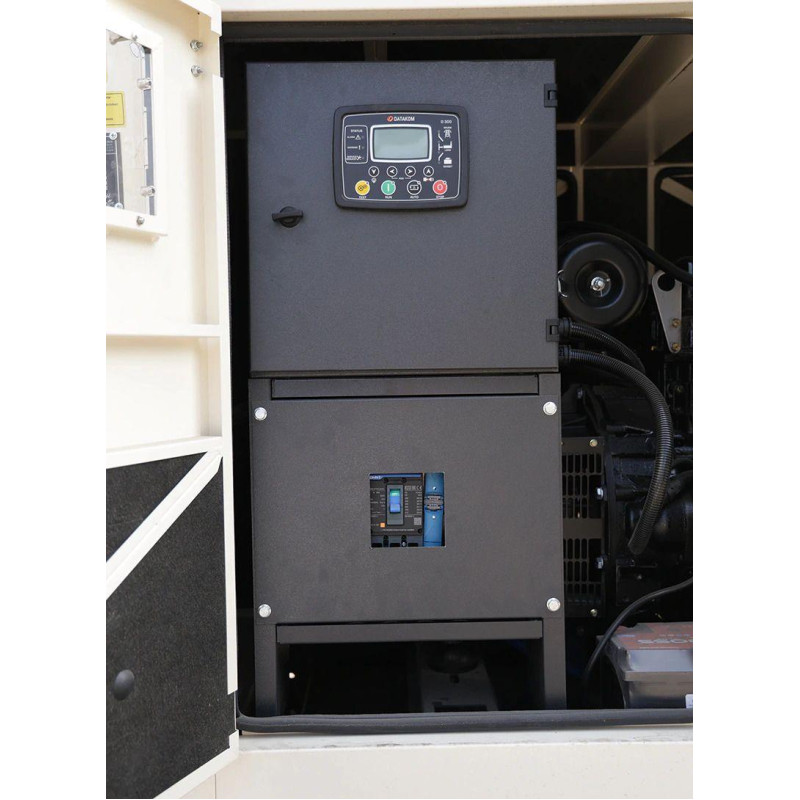

Control panels are intuitive and user-friendly, ensuring secure software updates. Controller modulation and programming allow adapting the generator's operation to individual business needs.

Features of the control and operation system:

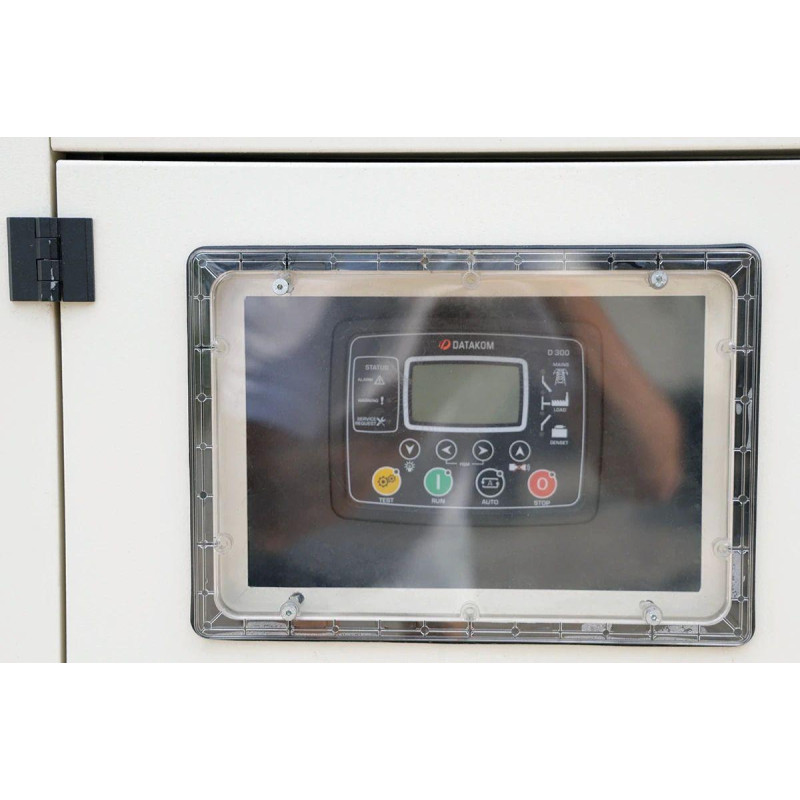

  • Automatic control system with LCD screen;
  • Remote monitoring of status and parameters;
  • Multifunctional operating modes for business applications;
  • Multilingual interface support;
  • Programming and communication via USB, RS-232, and GSM.

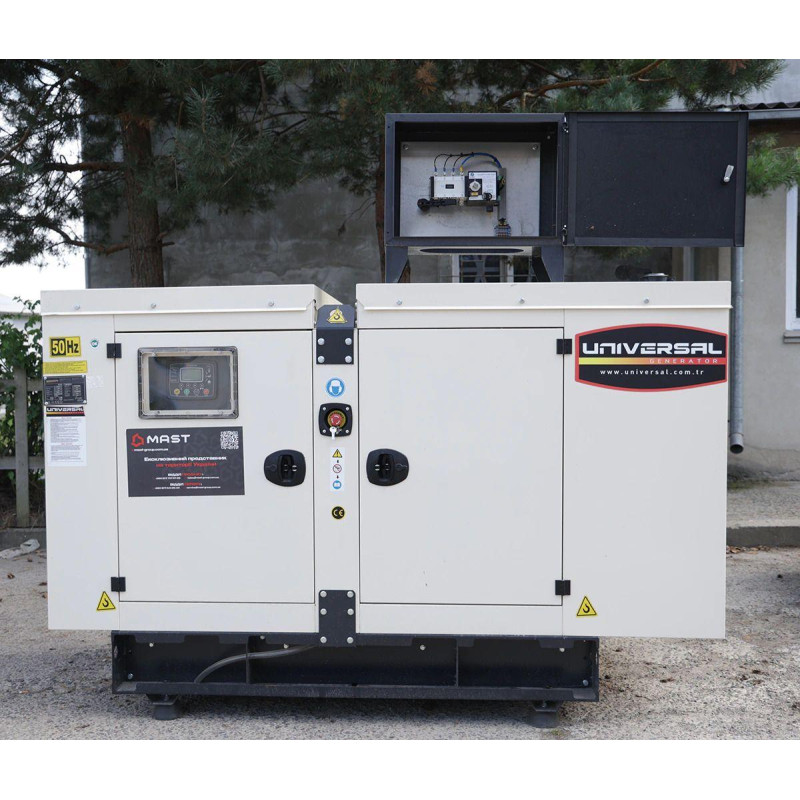

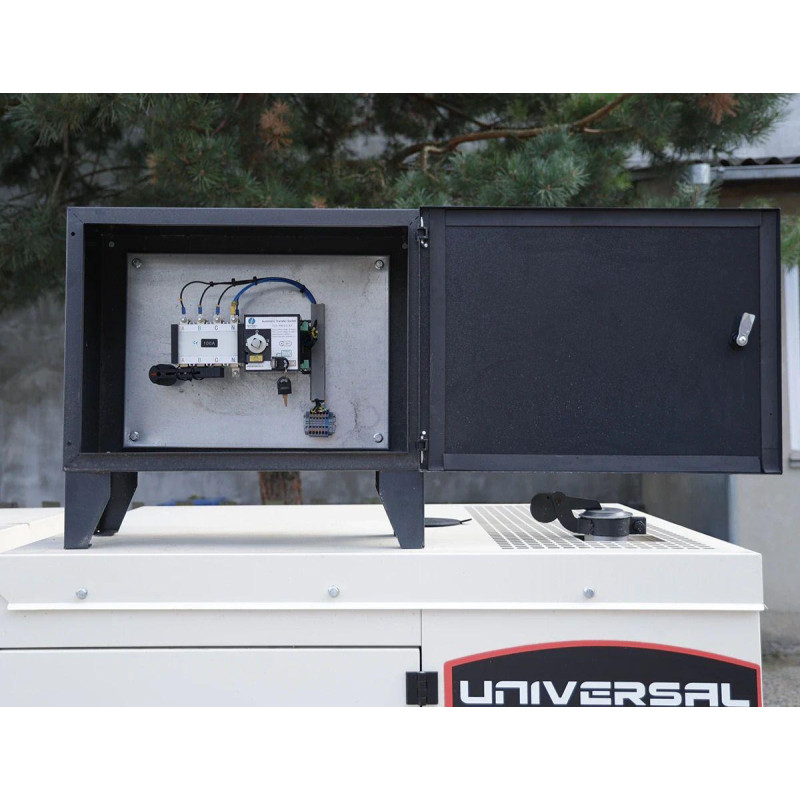

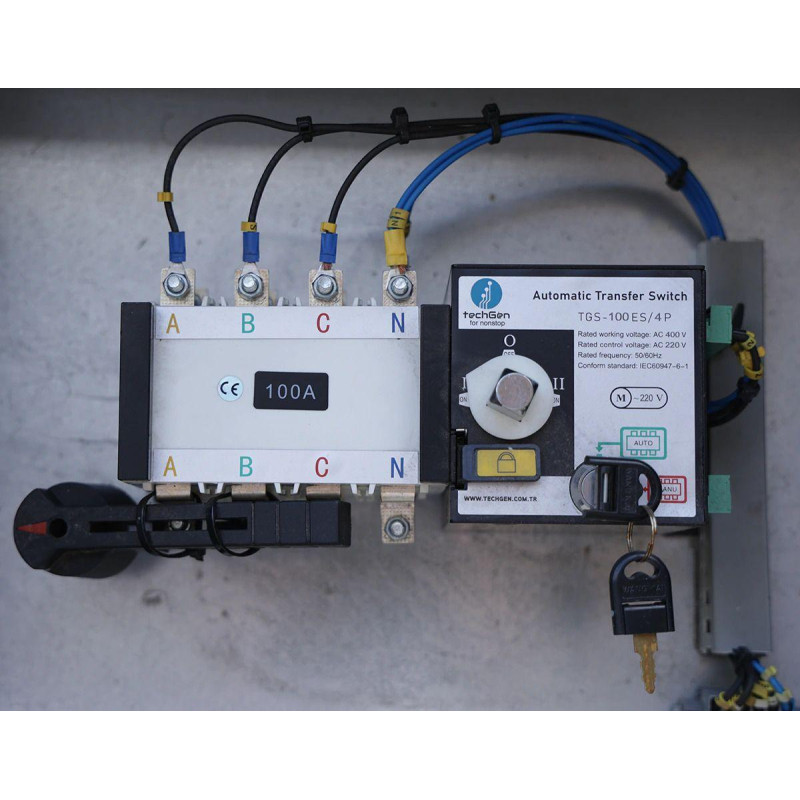

The delivery set includes an automatic transfer switch (ATS) and a coolant preheater, ensuring system readiness in emergency situations and low temperatures. This model combines optimal performance, ease of maintenance, and reliability in long-term operation, making it suitable for industrial facilities, commercial sites, and large infrastructure objects.

By choosing the UNIVERSAL UND-K 90 KVA diesel generator, you get a solution from the manufacturer Universal that complies with European standards and possesses the properties necessary for uninterrupted operation in challenging conditions.

Other products in this category here Generators

Specifications
Coolant capacity 13 L
Cooling Liquid
Crankcase oil capacity 13 L
Dimensions with housing (WxDxH) 2420x1000x1750 mm
Engine brand KOFO
Engine displacement 4.15 L
Engine model N4105ZLDS
Fuel consumption (100% x 75% x 50% prime mover) 17/13/9L/h
Fuel tank capacity 200 L
Fuel Type Diesel
Guarantee 12 months
Launch type automatic voltage regulation (AVR) + electric start
Max. Force 90 kVA/72 kW
Motor speed 1500 RPM
Nominal. Strength 81 kVA/65 kW
Power Factor 0.8
Protection class IP21-IP23
Voltage 400 V
Weight with housing 1350 kg
