The SOYGEN SGB 150 KVA Diesel Generator from the Soygen brand is a powerful and reliable power plant designed for industrial and commercial applications, ideal for powering large production facilities, workshops, offices, medical and educational institutions, government and municipal organizations, shopping malls, hotels, and other facilities. The nominal power of the unit is 108 kW.

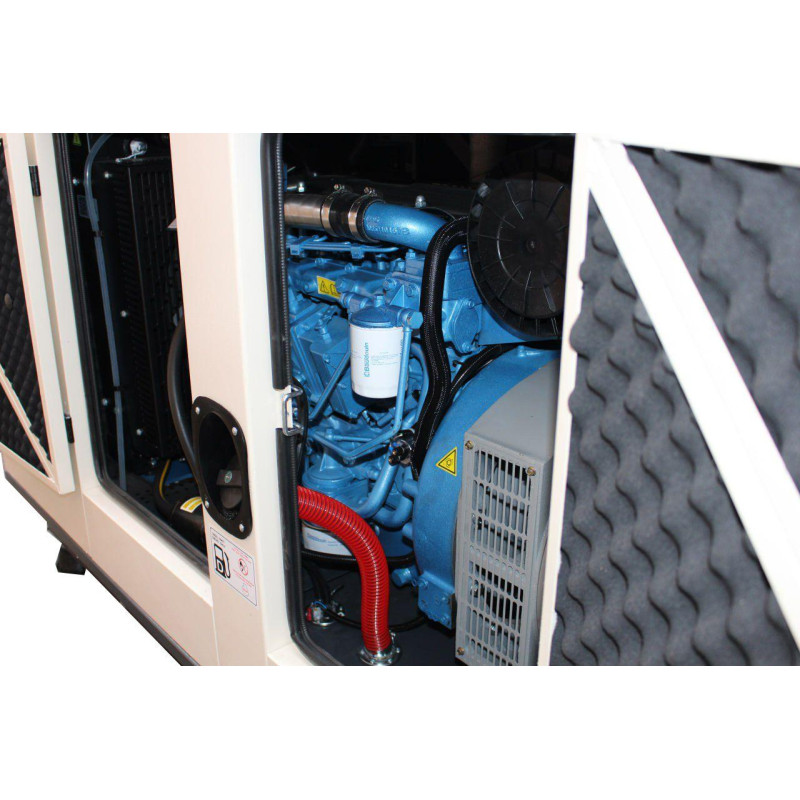

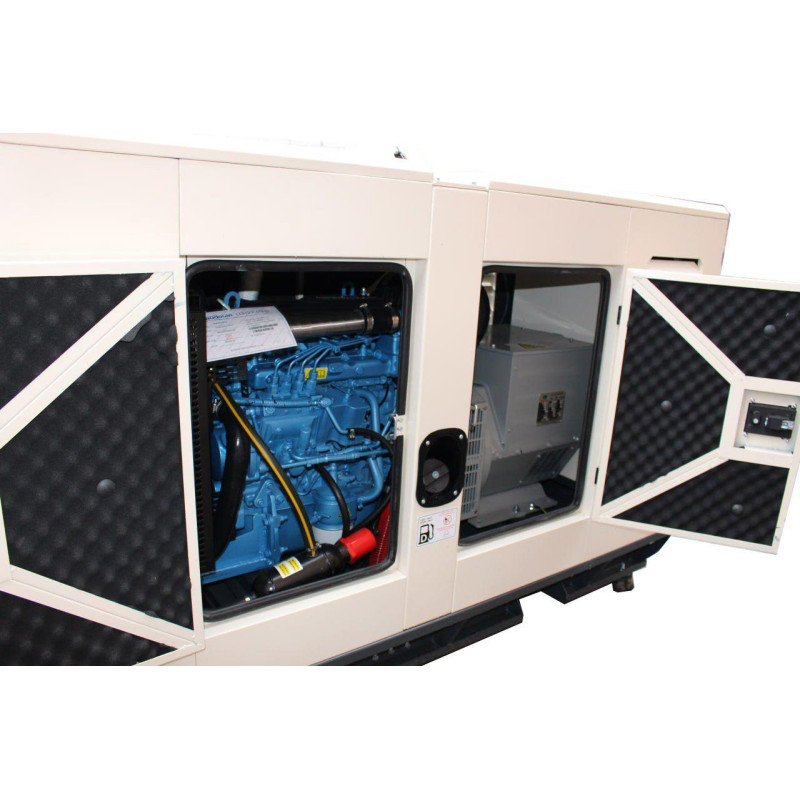

The generator is equipped with a universal BAUDOUIN (France) generator engine with liquid cooling, a Surirella alternator, a coolant heater, and an automatic battery charging system, ensuring stable and long-lasting power supply in various climatic conditions. The thick-walled, all-weather casing with steel stiffening ribs and anti-corrosion polyester powder coating allows the unit to be operated outdoors without a canopy. High-quality sound insulation using special fiberglass plates guarantees a reduction in noise levels during operation.

Key Specifications and Advantages

This unit is designed for reliable power supply to large facilities and offers the following parameters and advantages:

• Three-phase output voltage: 400 V
• Nominal power: 135 kVA / 108 kW
• Maximum power: 150 kVA / 120 kW
• BAUDOUIN (France) generator engine
• Liquid engine cooling for long continuous operation
• Surirella alternator

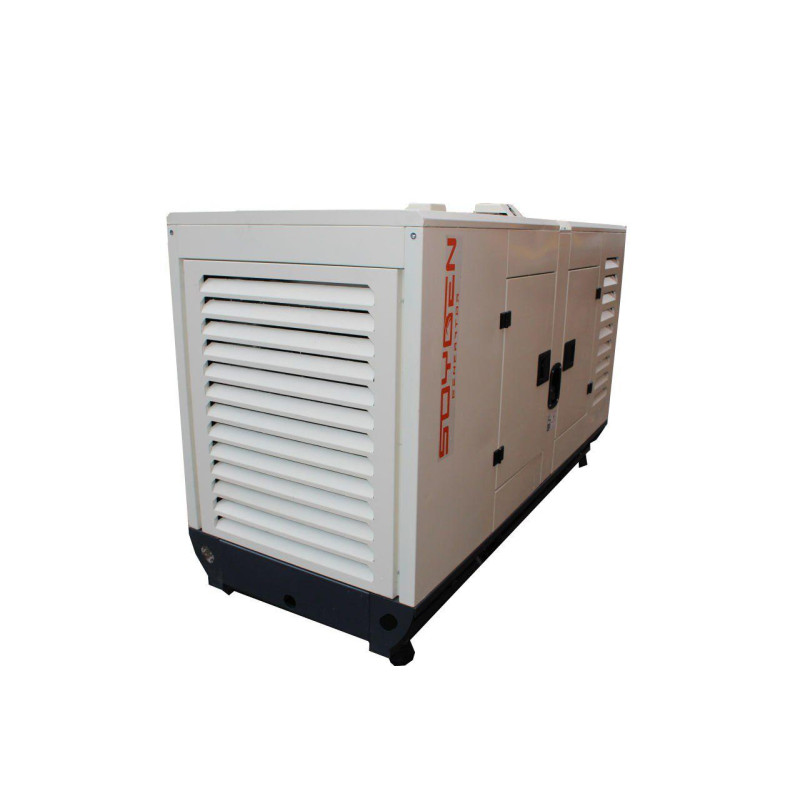

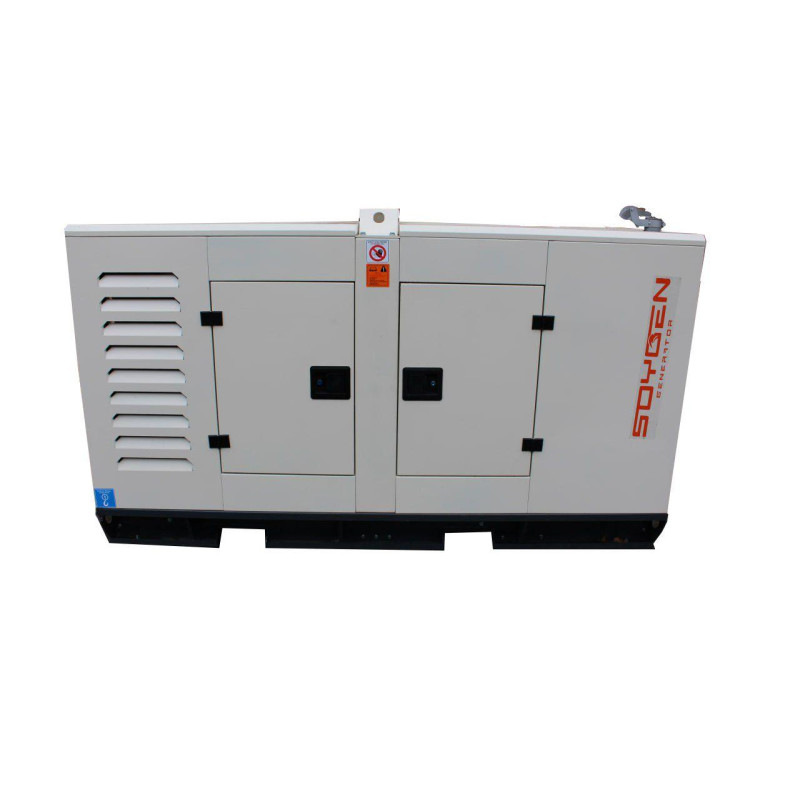

• All-weather steel casing with stiffening ribs and anti-corrosion coating
• Effective sound insulation of the casing with fiberglass layers
• Automatic Transfer Switch (ATS) unit
• Coolant heater
• Automatic battery monitoring and recharging

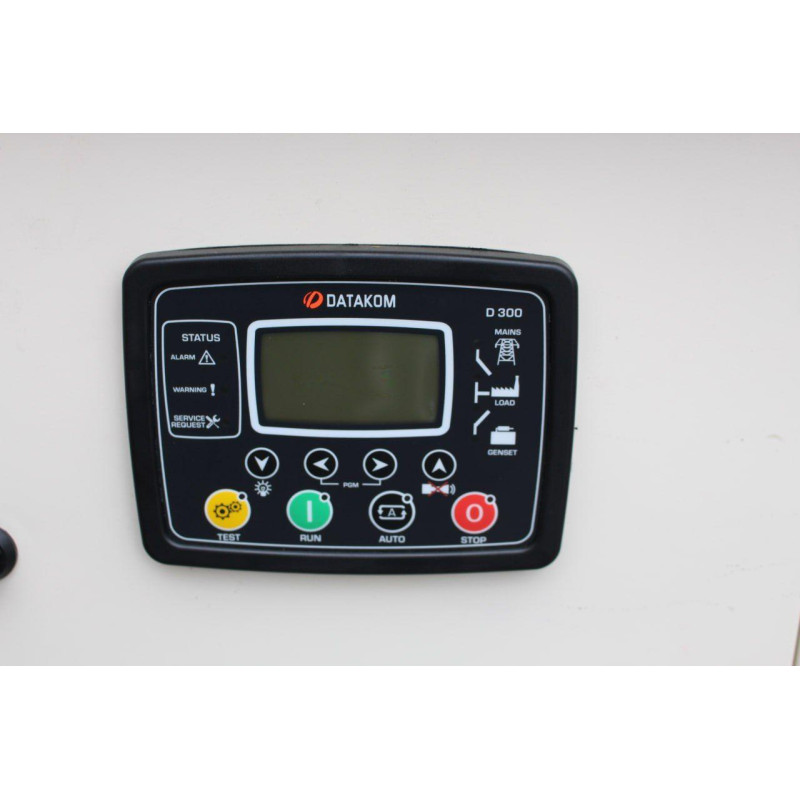

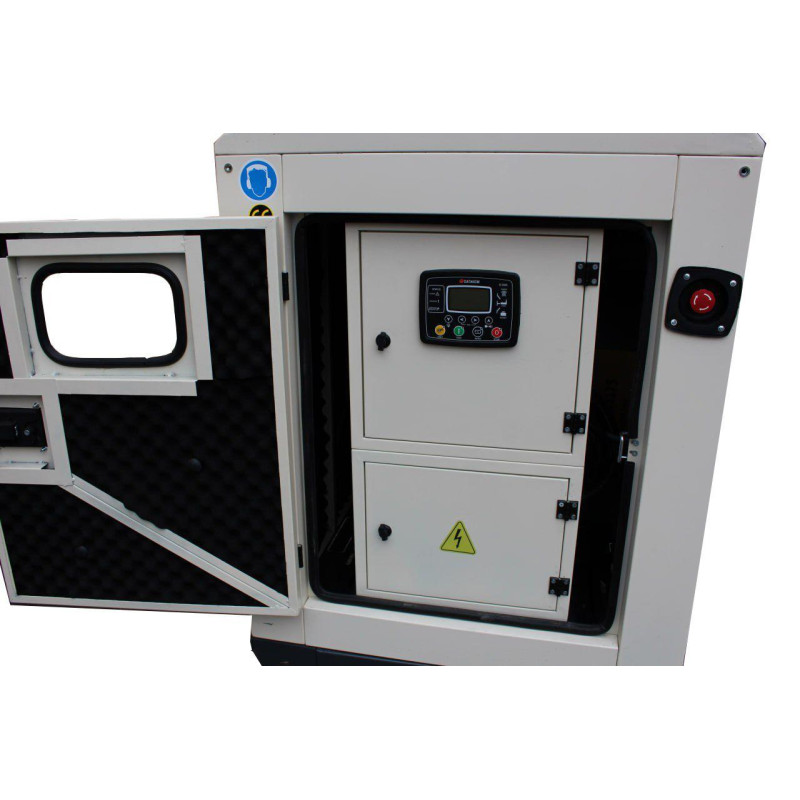

• Innovative DATAKOM control panel with a user-friendly interface

Package Contents

The SOYGEN SGB 150 KVA diesel generator package includes:

• Battery
• Automatic charger
• Automatic Transfer Switch (ATS) unit
• Coolant heater

Questions and Answers

Below are answers to the most common questions regarding generator selection and operation.

Which generator power should I focus on — nominal or maximum?

When choosing equipment, focus primarily on the nominal power — this is the power for which the generator is designed for continuous operation. Maximum power is a short-term reserve that the unit can withstand during starting or peak loads.

Which generator is more cost-effective — diesel or gasoline?

The choice depends on the operating conditions. Gasoline generators are better suited for short-term and mobile use. For long-term or regular power supply, diesel units are more cost-effective due to their greater efficiency, durability, and reliability.

What is the difference between air and liquid cooling for a diesel generator?

Air cooling is achieved through air circulation and is suitable for short operating modes; during longer operation, such units can overheat and usually require shutdown after 8–10 hours. Liquid cooling is more efficient and allows the generator to be used continuously for a long time, stopping only for refueling and maintenance.

What is the IP protection class and how is it deciphered?

The protection class indicates the degree of protection of the generator casing against the ingress of solid particles and moisture. It is denoted as IP and two digits.

The first digit indicates the degree of protection against solid objects and dust:

• 0 — no protection
• 1 — protection against foreign objects larger than 50 mm
• 2 — protection against objects larger than 12 mm
• 3 — protection against objects larger than 2.5 mm
• 4 — protection against objects larger than 1 mm
• 5 — dust protection

The second digit indicates the degree of protection against moisture:

• 0 — no protection
• 1 — protection against vertical water drops
• 2 — protection against water drops at an angle up to 15°
• 3 — protection against water splashes at an angle up to 60°
• 4 — protection against sprayed water in the air
• 5 — protection against directed water jets

What is the warranty for a diesel generator?

All generators come with a warranty of 12 months or 500 operating hours, whichever comes first.

The SOYGEN SGB 150 KVA is a solution for those seeking a powerful, weather-resistant, and easy-to-operate diesel power plant with modern control and protection systems.
