Product Code: FA87-KD 33 DM-87
372 540 грн.
Buy this product in 1 click:
Main specifications
Coolant capacity: 5.73 L
Cooling: Liquid
Crankcase oil capacity: 6.5 L
Dimensions with housing (WxDxH): 1600x800x1250 mm
Dimensions with housing (WxDxH): 1600x800x1250 mm
All specifications
We will deliver this product:
Payment
Description

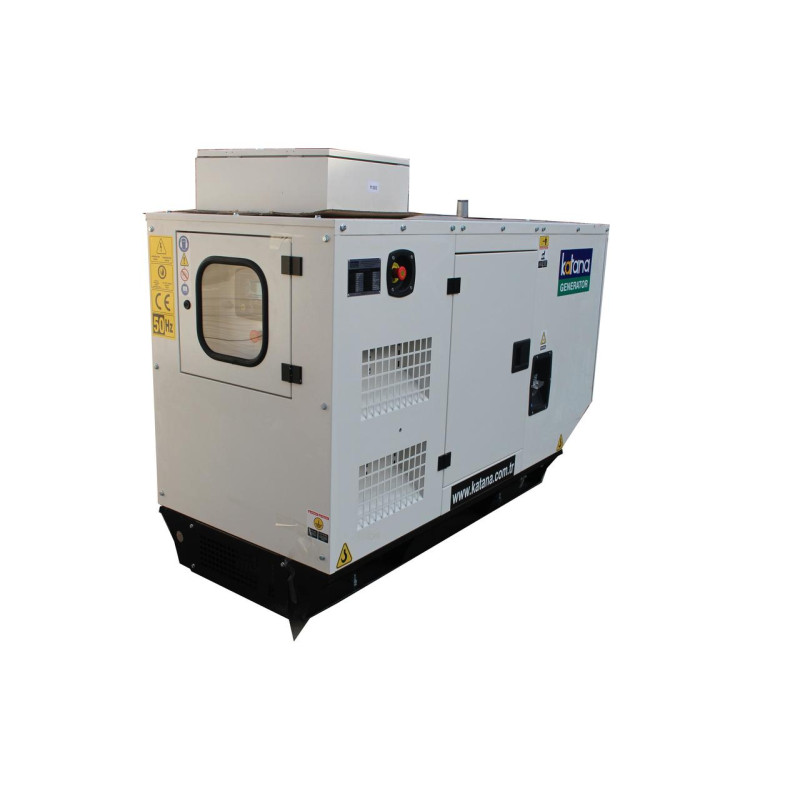

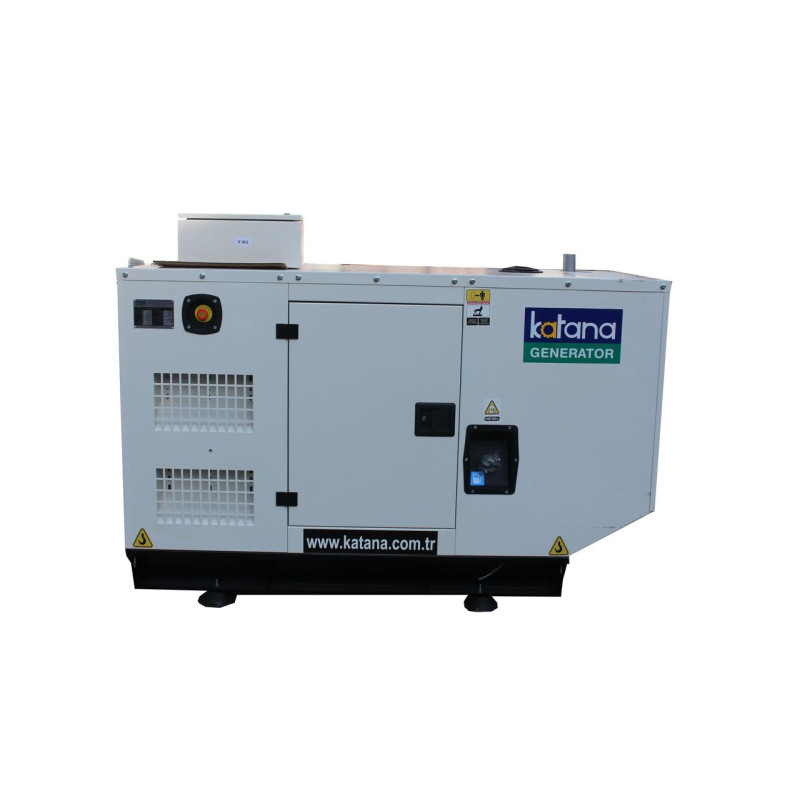

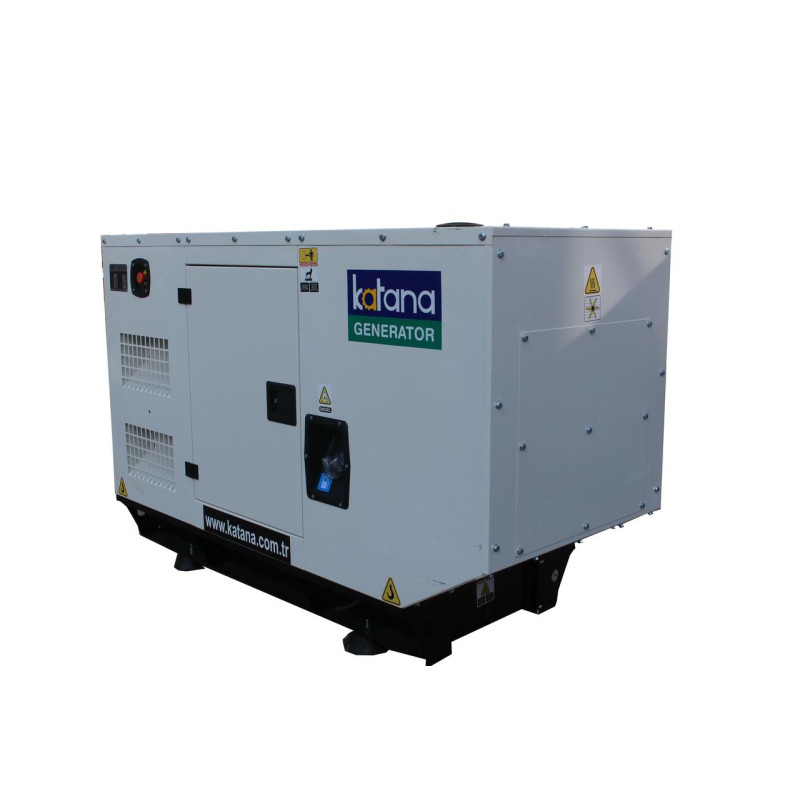

KATANA KD 33 KVA Diesel Generator — A Reliable Power Source for Business and Industry

Introducing the KATANA KD 33 KVA diesel generator from the manufacturer Katana. This model is ideal for stable and economical power supply at commercial, industrial, and agricultural facilities. The product belongs to the category: Energy Independence > Generators. Product ID in the catalog: 45071.

Key Advantages

  • Power: 33 kVA — an optimal balance between performance and operating costs.
  • Diesel engine ensures high efficiency and durability in continuous operation modes.
  • Katana brand reliability — proven components and quality assembly.
  • Versatile application: backup power, continuous electricity supply for buildings and technological equipment.

Operating Recommendations

The KATANA KD 33 KVA generator is recommended for installation in well-ventilated areas or outdoors with protection from atmospheric precipitation. To ensure a long service life and uninterrupted operation, maintenance regulations must be followed: regular filter replacement, monitoring of oil and coolant levels, checking the battery and starting system.

Typical Technical Specifications (Approximate)

ParameterValue
ModelKATANA KD 33 KVA
Fuel TypeDiesel
Rated Power33 kVA
ManufacturerKatana
CategoryEnergy Independence > Generators
Product ID45071

Who This Generator Is Suitable For

The KD 33 KVA model will be useful for owners of shops, cafes and restaurants, small production facilities, construction sites, and agricultural enterprises that require a reliable backup power source. Thanks to its diesel power unit, the generator is effective under prolonged loads and in remote areas with limited access to the power grid.

Benefits of Purchase

  • Quick start and stable output voltage;
  • Fuel economy compared to analogs under similar loads;
  • Ability to connect to automatic transfer switch (ATS) systems for continuous operation;
  • Easy integration into existing facility electrical networks.

If you need consultation on equipment selection, installation, or additional options (sound insulation, enlarged fuel tank, automatic start system), please contact our specialists. We will help calculate the necessary power and select components for safe and efficient operation of the unit.

Other products in this category here Generators

Specifications
Coolant capacity 5.73 L
Cooling Liquid
Crankcase oil capacity 6.5 L
Dimensions with housing (WxDxH) 1600x800x1250 mm
Dimensions with housing (WxDxH) 1600x800x1250 mm
Engine model DE2.7ZXE
Engine RPM 1500 rpm
Fuel consumption (100% x 75% x 50% prime mover) 6.3x5x3.6 L/h
Fuel consumption (100% x 75% x 50% prime) 6.3x5x3.6 L/h
Fuel tank capacity 73.6 L
Fuel Type Diesel
Guarantee 12 months
Launch type automatic voltage regulation (AVR) + electric start
Max. Force 33 kVA/26.4 kW
Motor speed 1500 rpm
Nominal. Strength 24.9 kVA/19.9 kW
Power Factor 0.8
Power Factor 0.8
Protection class IP23
Voltage 400 V
Weight with body 600 kg
Weight with housing 600 kg
