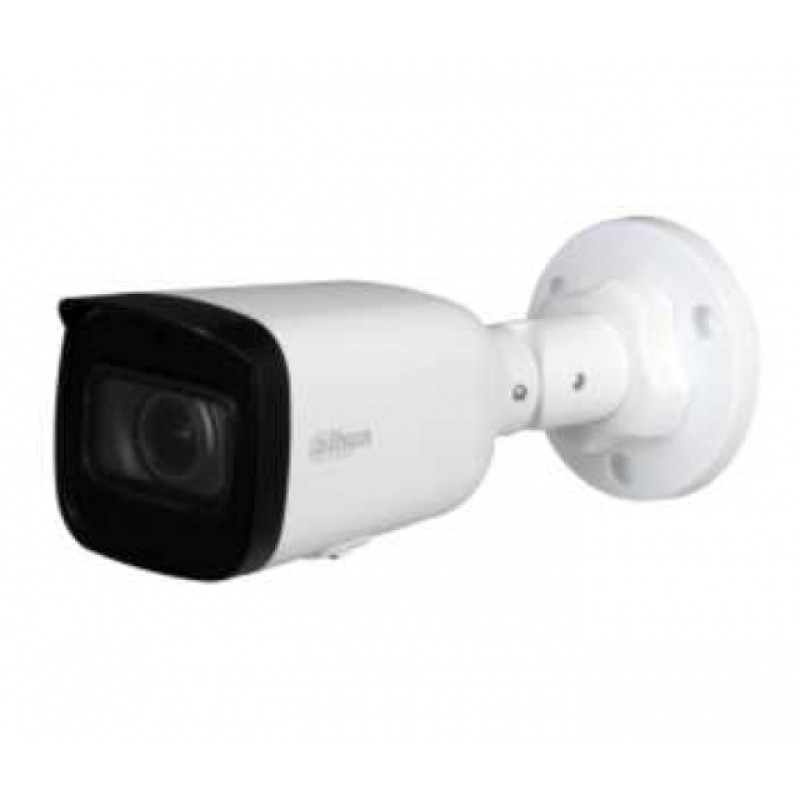

Dahua DH-IPC-HFW1230T1-ZS-S5. 2MP IP camera with motorized lens
Dahua DH-IPC-HFW1230T1-ZS-S5 — 2MP IP Camera with Motorized Lens
Brand: Dahua Lite
Category: Electronics > Video Surveillance > Video Cameras
Model: DH-IPC-HFW1230T1-ZS-S5
Product Overview
The Dahua DH-IPC-HFW1230T1-ZS-S5 is a professional 2MP IP camera with a motorized lens, designed for reliable 24/7 video surveillance. The camera provides clear images day and night thanks to infrared illumination up to 50m and a mechanical ICR filter for day/night transition. The highly sensitive 1/2.8` CMOS sensor and bright optics (F1.5) allow for high-quality images even in low light conditions (sensitivity 0.005 lux).
Key Advantages
The camera supports modern video compression algorithms H.265, H.264, as well as intelligent Smart H.265+ / Smart H.264+ modes, which reduce archive size without noticeable loss of quality. The motorized lens with a focal length of f=2.8-12mm allows changing the viewing angle from 101° to 33° — from wide panoramic coverage to detailed object zoom. Recording at 2MP resolution (1920 x 1080) at up to 25 fps provides sufficient detail for most video surveillance tasks.
Functionality
The device is equipped with a set of useful functions to improve image quality: DWDR (dynamic range expansion), 3D-DNR (noise reduction), BLC and HLC for backlight compensation. Infrared illumination up to 50m allows monitoring in the dark, and the mechanical IR filter ensures natural colors during the day and effective operation at night. The camera supports local archive storage on a micro SD card up to 256GB.
Compatibility and Power
The Dahua DH-IPC-HFW1230T1-ZS-S5 can be powered by either a DC 12V adapter (power 1.4 - 6.4 W) or via PoE according to the 802.3af standard, which simplifies installation and cable routing on site. The IP67-rated protective casing ensures resistance to dust and moisture, allowing the camera to be used both indoors and outdoors.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 2MP IP with IR |
| Sensor | 1/2.8` CMOS |
| Compression | H.265 / H.264 / Smart H.265+ / Smart H.264+ |
| Lens | Motorized f=2.8-12 mm (viewing angle 101°-33°) |
| Sensitivity | 0.005 lux / F1.5 |
| Recording | 2MP (1920 x 1080) - 25 fps |
| Functions | DWDR, 3D-DNR, BLC, HLC, day/night (ICR) |
| Interfaces | micro SD up to 256GB |
| IR Illumination | 50 m |
| Casing Protection | IP67 |
| Power | DC 12V/1.4 - 6.4 W, PoE (802.3af) |
| Dimensions | ф91x244 mm |
| Weight | 430 g |
Areas of Application
This model is ideal for video surveillance in offices, shops, warehouses, and open areas. The robust IP67 casing and PoE capability make it convenient for outdoor installation or in locations with limited access to power. The motorized lens allows for quick adjustment of the viewing angle to current tasks — from monitoring large areas to focusing on details.
Installation Recommendations
- Position the camera at an optimal distance, considering the 2.8-12mm focal length range to achieve the desired viewing angle.
- When using PoE, ensure that the switch or injector complies with the 802.3af standard.
- For long-term local recording, install a micro SD card up to 256GB.
The DH-IPC-HFW1230T1-ZS-S5 model from Dahua Lite is a practical and reliable solution for modern video surveillance, combining high image quality, intelligent compression algorithms, and ease of installation.
