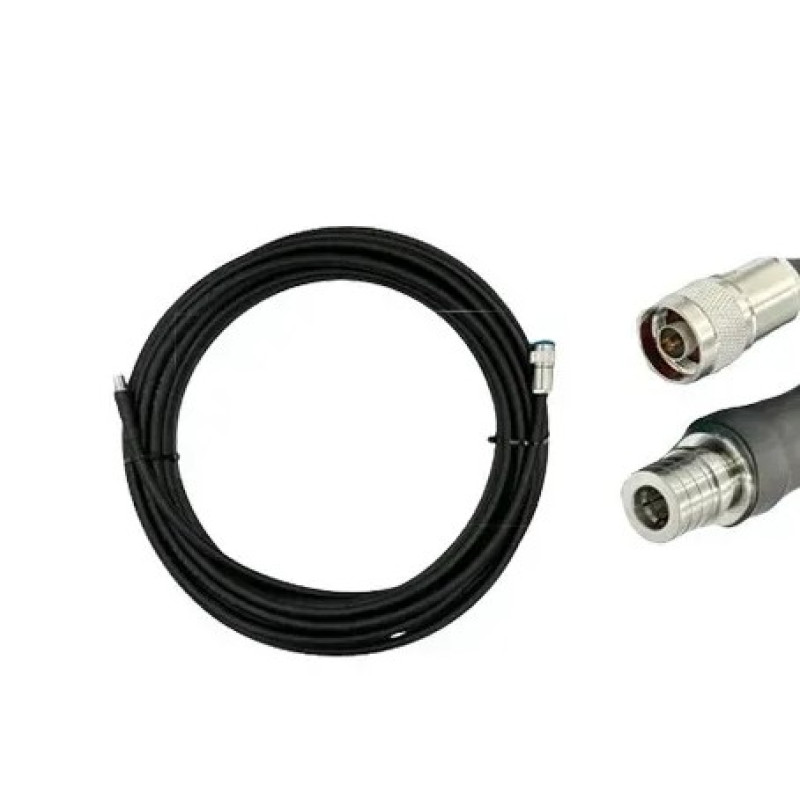

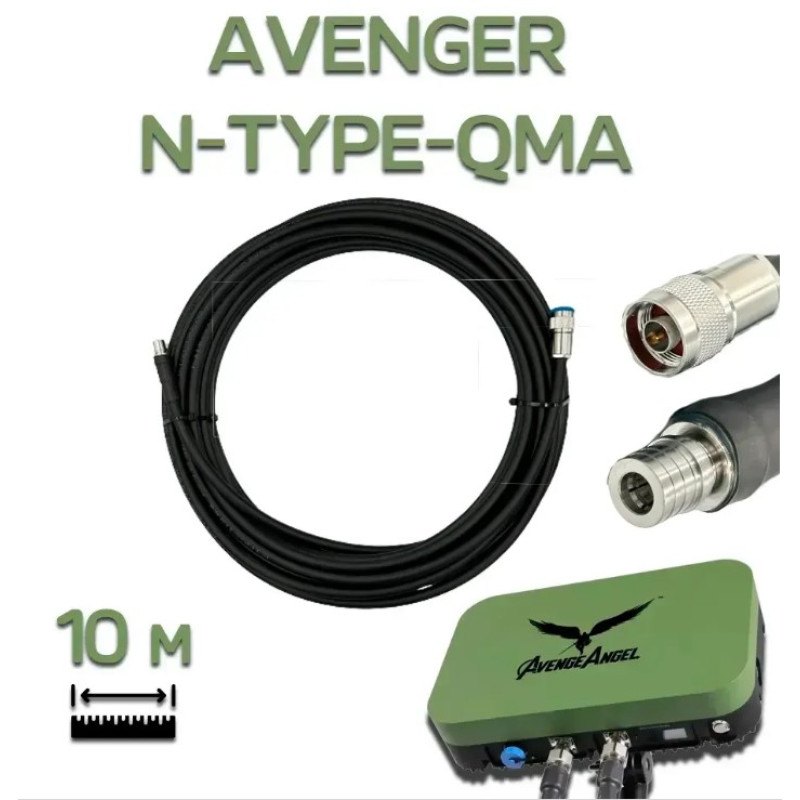

Avenge Angel Avenger 10m RG-8 Cable (2 wires) — High-Quality Antenna Extension with N-Type to QMA, 10m (two wires)
The RG-8 cable from Avenge Angel is designed for connecting Avenger and Aientech DEIMOX antennas with N-Type and QMA connectors. This is a thick, high-quality coaxial cable that ensures minimal signal loss and stable operation across a wide frequency range. The set includes two 10-meter wires, allowing for flexible antenna placement relative to the base equipment.
Cable Construction and Key Characteristics:
The inner conductor is made of copper-clad aluminum for improved conductivity, the dielectric is foamed polyethylene, and the outer conductor combines self-adhesive aluminum foil and braided copper wire. The cable features a black polyethylene jacket for enhanced protection against external influences.
The cable meets standard technical parameters: 50 Ohm impedance, 78 pF/m capacitance, 85% wave propagation velocity, and a maximum operating frequency of up to 21 GHz. The weight is 80 g/m, bending radius is 51 mm, and operating temperature range is from -40 to +80°C. The cable has passed spark testing up to 8000 Vrms, with a peak "voltage/power" specified as 16 W.
| RG8 | ||
| Cable Impedance | 50 ohm | |
| Capacitance | 78 pF/m | |
| Velocity | 85% | |
| Spark Test | 8000 Vrms | |
| Peak Power (kW) | 16 W | |
| Operating Frequency | Max | 21 GHz |
Mechanical and Environmental Characteristics
Below are the main mechanical and environmental parameters of the RG-8 cable, which affect installation and operational longevity.
| RG8 | |||
| Weight | 80 g/m | ||
| Bending Radius | 51 mm | ||
| Temperature Range | -40~+80°C | ||
| RoHS Compliance | Compliant |
Attenuation (typical value at 25°C and sea level)
The typical attenuation values for RG-8 under standard conditions are provided. Frequency-dependent values allow for assessing signal loss across various application ranges.
| RG8 | |||
| Frequency (MHz) | Attenuation (dB/m) | ||
| 100 | |||
| 400 | 0.10 | ||
| 450 | |||
| 900 | |||
| 1000 | 0.16 | ||
| 2500 | |||
| 3000 | 0.28 | ||
| 5000 | 0.38 | ||
| 5800 | |||
| 6000 | 0.42 |
Who this cable is suitable for:
The RG-8 from Avenge Angel is an optimal choice for professional installations requiring minimal signal loss at medium and high frequencies, for amplifiers, radio and telecommunication systems, as well as for EW systems and specialized antenna solutions. Thanks to its robust construction and wide temperature range, the cable is suitable for both outdoor and indoor installation.
Brand: Avenge Angel
Product Type: EW > Mounts for EW Antennas
Length: 10 m (two 10 m wires)
This is a unique combination of features: a thick copper-clad central conductor, foamed polyethylene dielectric, combined outer shield, and protective polyethylene jacket ensure reliable signal transmission with minimal loss.
If you are looking for a reliable RG-8 cable for connecting Avenger or Aientech DEIMOX antennas with N-Type — QMA connectors, this option from Avenge Angel will meet the requirements of both amateur and professional systems.
