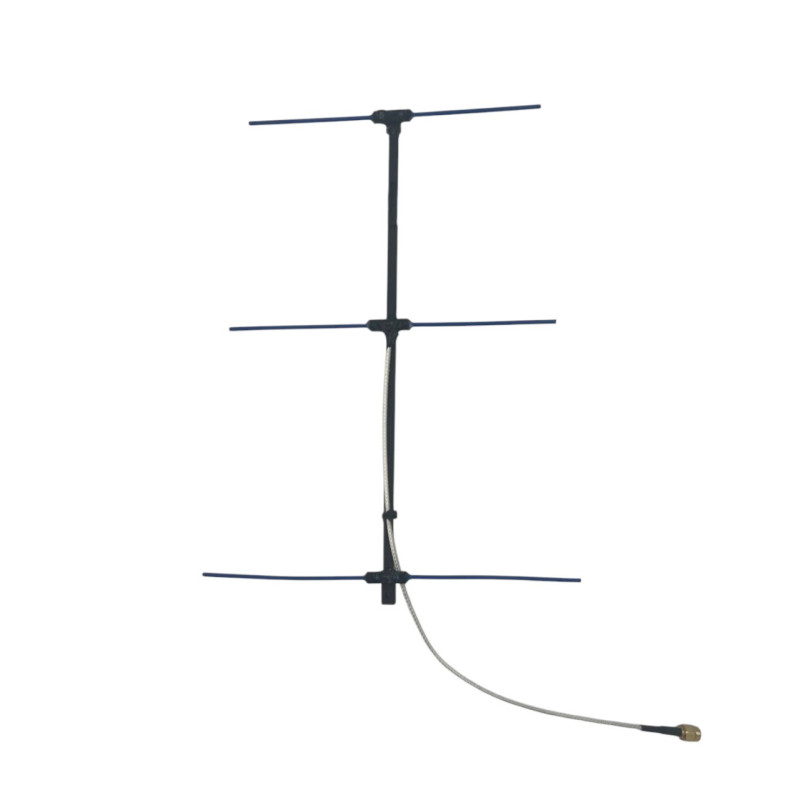

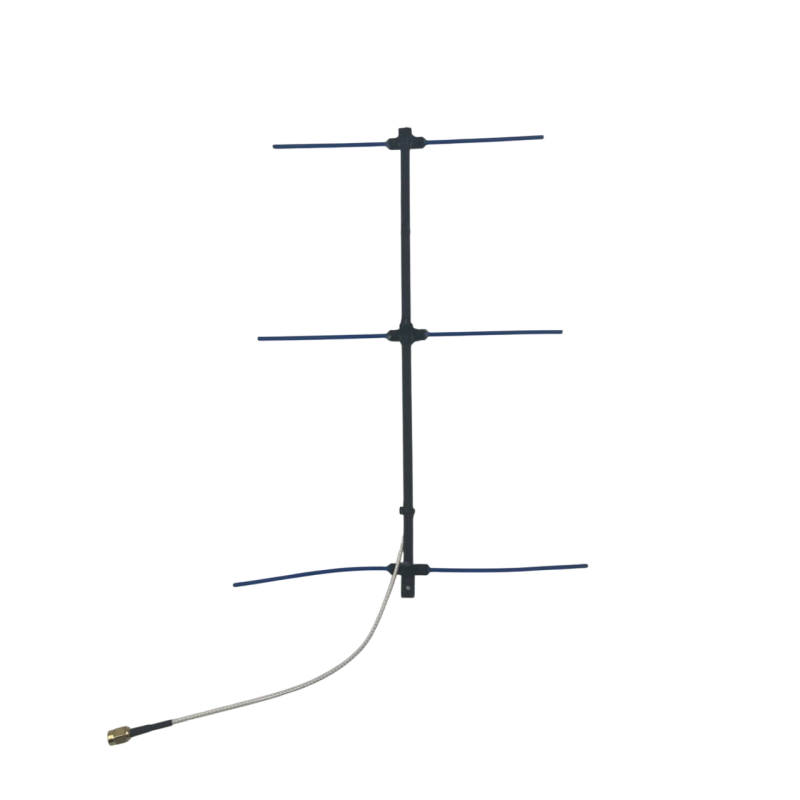

Yagi Antenna 950MHz for Flying Repeaters 7.7dBi SMA

Yagi antenna for flying repeaters for FPV drones — a directional compact antenna from SkyReach, designed for stable operation in the 950 MHz range with an SMA connector. It is ideal for repeaters, FPV transmitters, and other devices where signal directionality and increased communication range are important.

The antenna operates in the 950 MHz frequency range and has a gain of 7.7 dBi, providing noticeable signal amplification at a distance and reduced losses. Linear polarization gives a predictable radiation pattern, and an elongated pattern with a VSWR not exceeding 1.1 ensures minimal output power losses and optimal energy direction. Thanks to these characteristics, the effective communication range can increase up to 15 km, depending on terrain conditions and transmitter power.

The antenna is made of durable plastic, making it lightweight and resistant to environmental influences. The total weight of the antenna is 22 g, the connection cable length is — 240 mm. Connector: SMA.

Available frequency options (in all Yagi versions): 700 MHz, 750 MHz, 780 MHz, 800 MHz, 850 MHz, 900 MHz, 950 MHz, 1000 MHz, 1050 MHz.

Specifications

• Frequency: 950 MHz
• Gain: 7.7 dBi
• Polarization: linear
• Connection cable length: 240 mm
• Connector: SMA
• Material: plastic
• Weight: 22 g
• Operating range (approximate): up to 15 km
• VSWR: not exceeding 1.1

Package Contents

• 1 x directional Yagi antenna

The SkyReach Yagi 950 MHz antenna — a practical choice for users who need a compact and lightweight directional antenna with good gain for flying repeaters, FPV systems, and stationary solutions. The plastic casing provides protection and low weight, and the SMA connector allows for quick connection of the antenna to standard transmitters and repeaters. The directional pattern and high directivity help reduce side interference and increase stable communication range.

Manufacturer: SkyReach. Product category: Antennas > Yagi Antennas.
