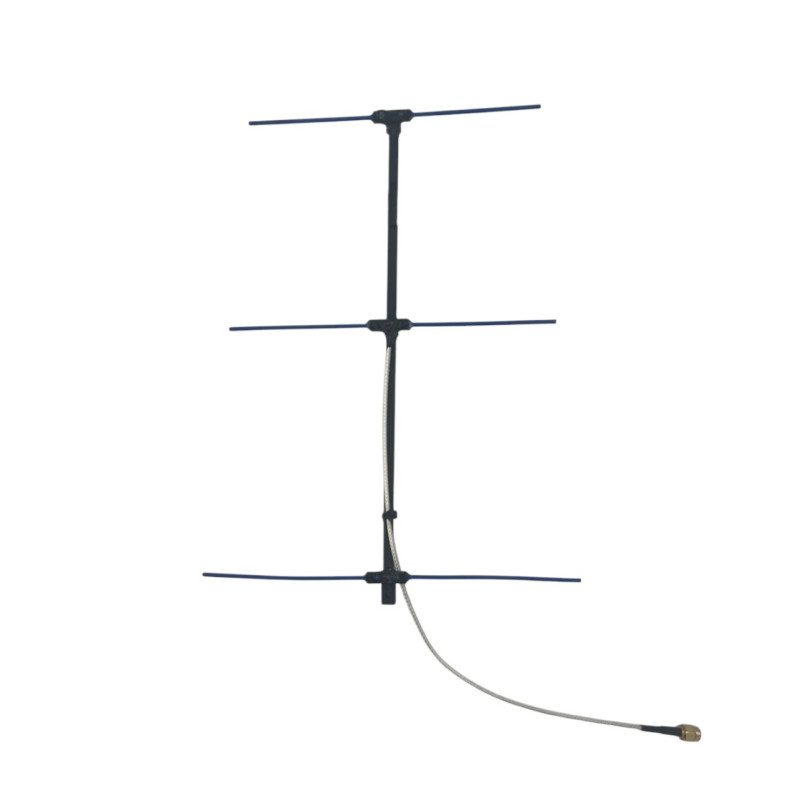

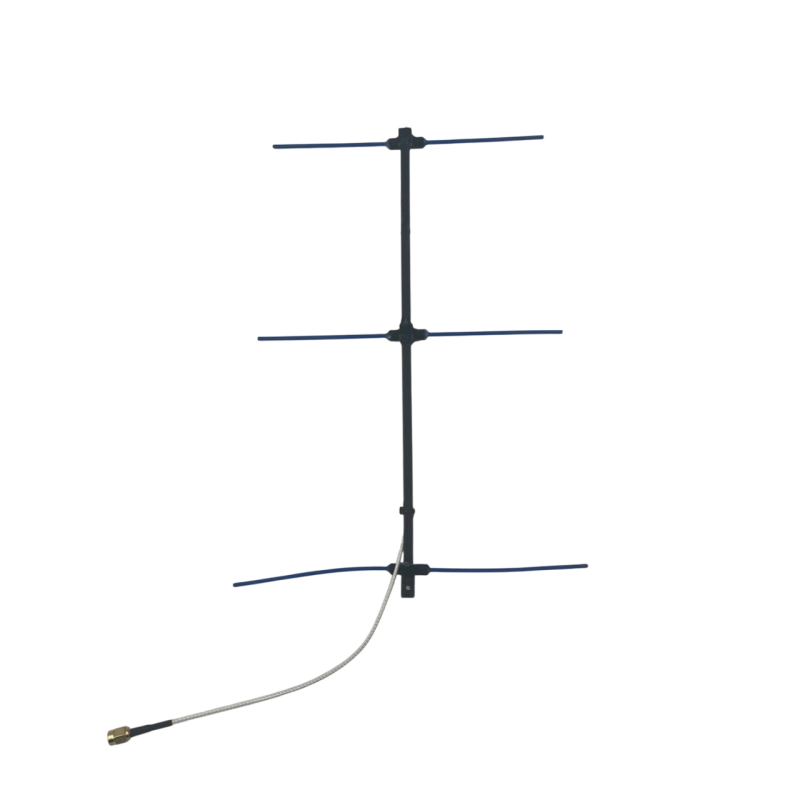

SkyReach Yagi Antenna 780MHz for Flying Repeaters

This professional Yagi antenna was developed by SkyReach specifically for use in FPV drone systems and for flying repeaters. This model combines compact weight with high gain, which increases communication range and stability during flight. The antenna is ideal for applications requiring an elongated directional pattern to focus energy on a specific sector and minimize interference.

Key Features

• Frequency: 780 MHz
• Gain: 7.7 dBi
• Weight: 22 g
• VSWR (Voltage Standing Wave Ratio): not more than 1.1
• Flight Range: increases range up to 15 km
• Radiation Pattern Type: elongated (with minimal power loss)
• Connector: SMA
• Purpose: repeaters, flying repeaters, and other devices requiring stable and long-range communication

The antenna guarantees minimal output power loss due to its low VSWR, which contributes to better signal transfer and increased communication reliability over long distances. Its light weight of 22 g makes it convenient for mounting on multicopters and portable repeaters, without significantly increasing the load on the equipment.

The model demonstrates consistent directivity, allowing the signal to be focused in the desired direction and avoiding unnecessary energy waste to the sides. The 7.7 dBi gain provides a significant increase compared to standard omnidirectional antennas, and the Yagi Antenna's VSWR parameter.
