Yagi Antenna 2200 MHz Plastic 8-9dBi by

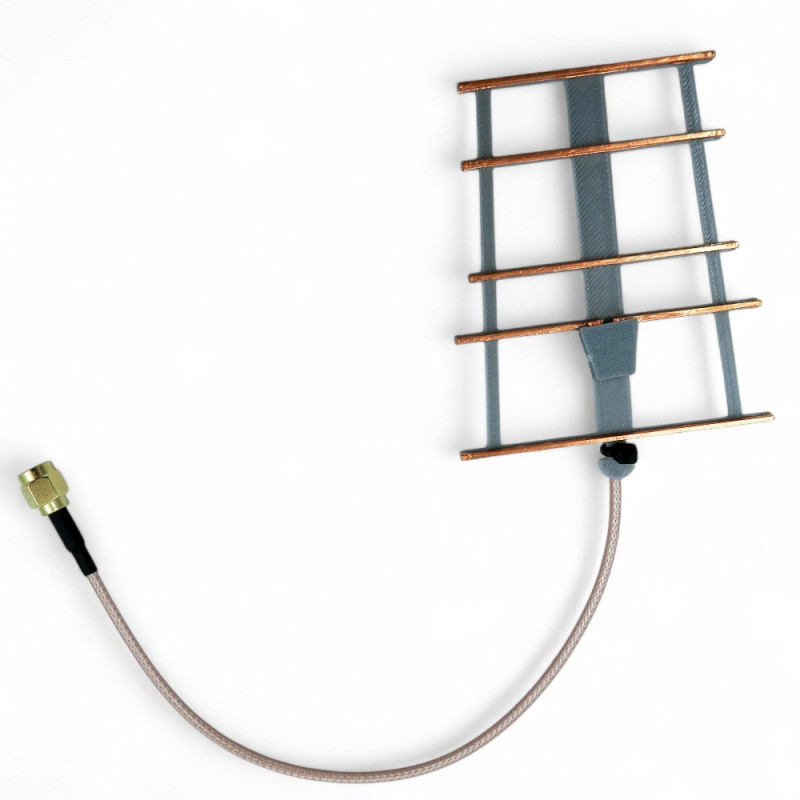

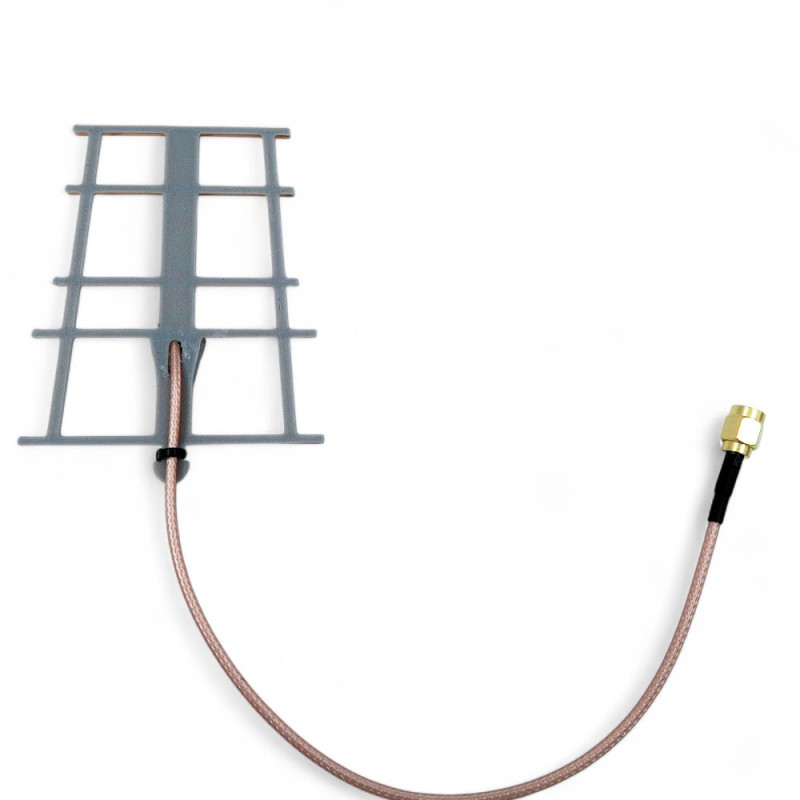

The Yagi Antenna 2200 MHz by [brand] is a directional antenna module that combines a lightweight plastic construction with integrated metal conductors for efficient radiation and reception in the 2200 MHz band. The design includes an active element (dipole), a reflector, and five directors (5 sections), forming a classic Yagi structure with high efficiency and stable gain in the specified range.

Key Features

• Frequency range: 2200 MHz
• Material: Plastic with integrated metal conductors
• Gain: 8-9dBi
• Number of sections (directors): 5
• Beam angle: 40°
• Polarization: Linear
• Cable characteristics: Flexible pigtail
• Connector: SMA
• Size: 87*63*3 mm

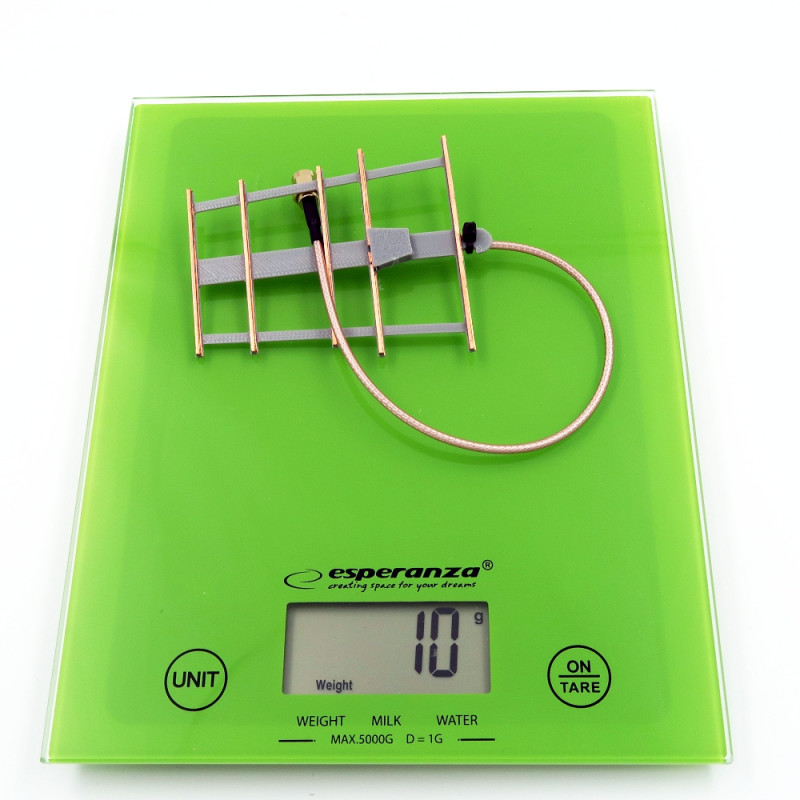

• Weight: 10 g

The antenna has a directional pattern with a 40° beam angle, allowing it to concentrate signal energy in a chosen direction and increase communication range. The 8-9dBi gain makes this model suitable for tasks where high directivity is important without significantly increasing mass and dimensions.

Design Features and Advantages

• Lightweight and low-profile due to plastic structural elements, which is important for mobile and field applications.
• Integrated metal conductors ensure the necessary electrical conductivity and efficient radiation.
• Flexible pigtail and convenient SMA connector allow for quick antenna connection to equipment.
• Compact dimensions of 87*63*3 mm and a weight of only 10 g make the model ideal for drones and portable installations.

Thanks to its parameters, the antenna is suitable for a wide range of tasks: installation on drones for reconnaissance and data transmission, creation of stationary or temporary radio relay points, directional signal amplification for relays and specialized systems. Plastic elements reduce visual and radar detectability glare, which can be critically important in special applications.

The model by [brand] combines a reliable design and technical characteristics that meet the requirements of modern mobile, military, and industrial applications. Product category: Antennas > Yagi Antennas. If directional signal amplification in the 2200 MHz range with minimal weight and size is required, this antenna will be an excellent choice.
