Yagi Antenna 1500MHz 9 Sections 13.4 dBi —
This Yagi antenna from the manufacturer is a directional outdoor antenna designed to operate at 1500 MHz. The model combines compact dimensions with high gain of 13.4 dBi, ensuring stable signal reception and transmission over long distances in one direction. Its linear polarization makes this antenna versatile for applications in radio communication systems, remote video surveillance, telecommunications, Wi-Fi, and some mobile networks.

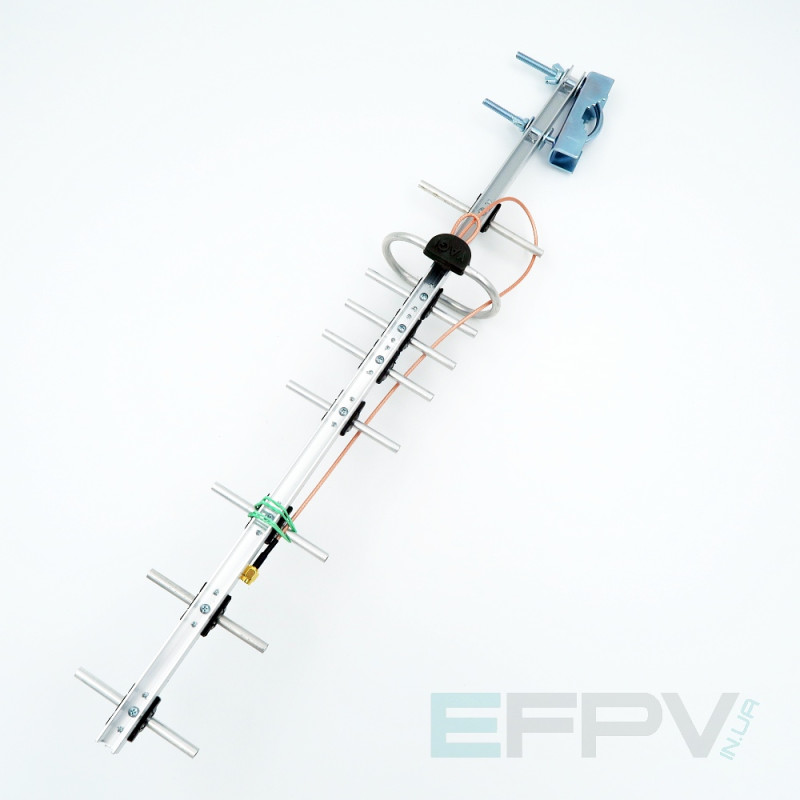

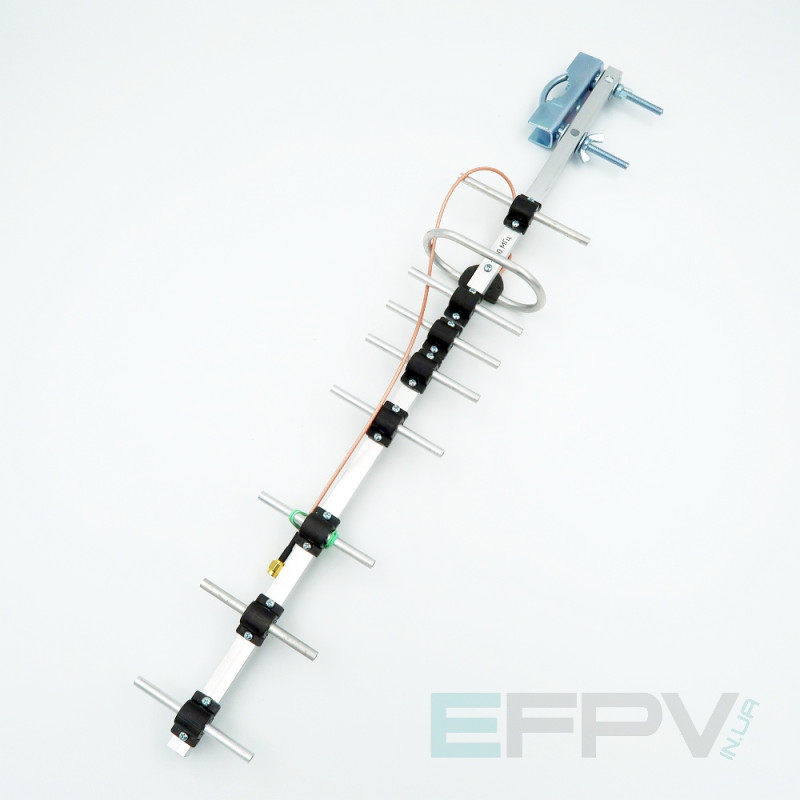

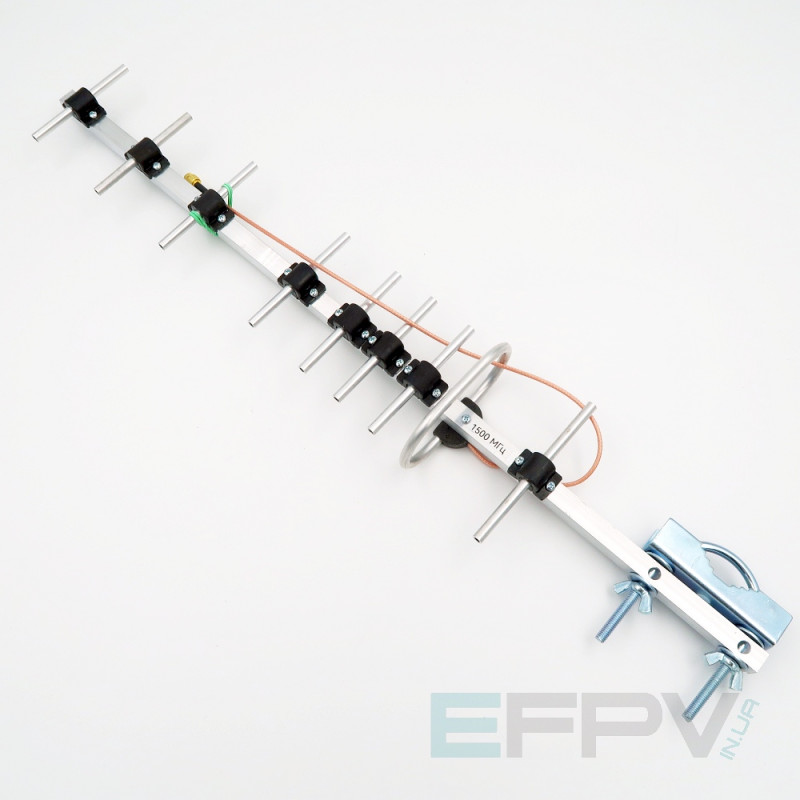

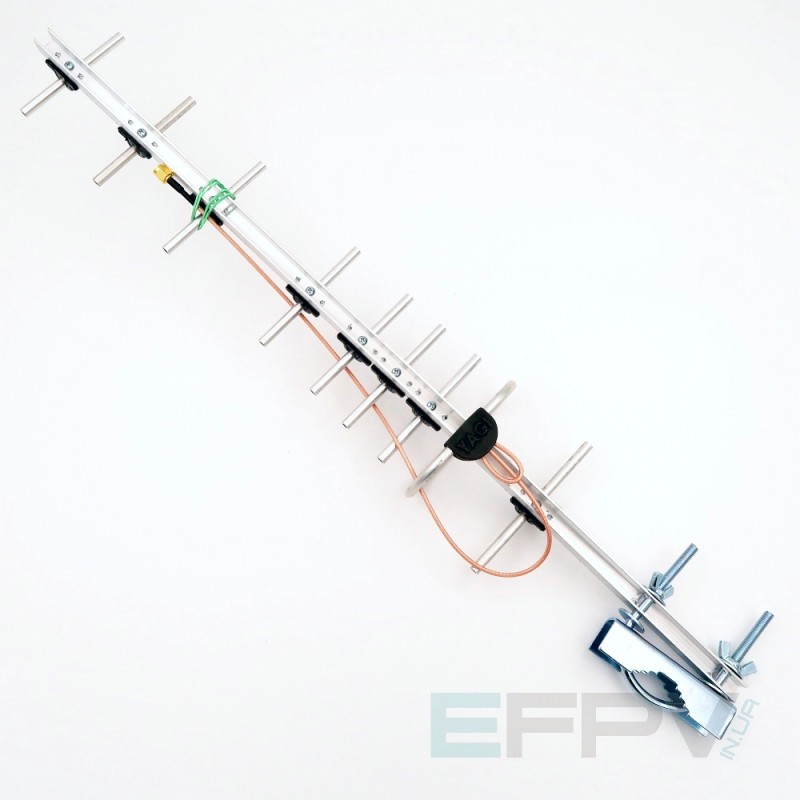

Structurally, the antenna consists of 9 sections (directors) that form a narrow directional pattern with a beam angle of 35°. This configuration reduces the impact of side interference and improves the signal-to-noise ratio in the receiving system. The body and elements are made of aluminum, ensuring low weight and high corrosion resistance for outdoor use.
Key Advantages
- High gain: 13.4 dBi for longer and more stable communication;
- Precise directivity: 35° beam angle for reduced interference;
- Aluminum construction: durability and low weight;
- Compact size: 550*99*56 mm for easy installation;
- Convenient connection: SMA connector;

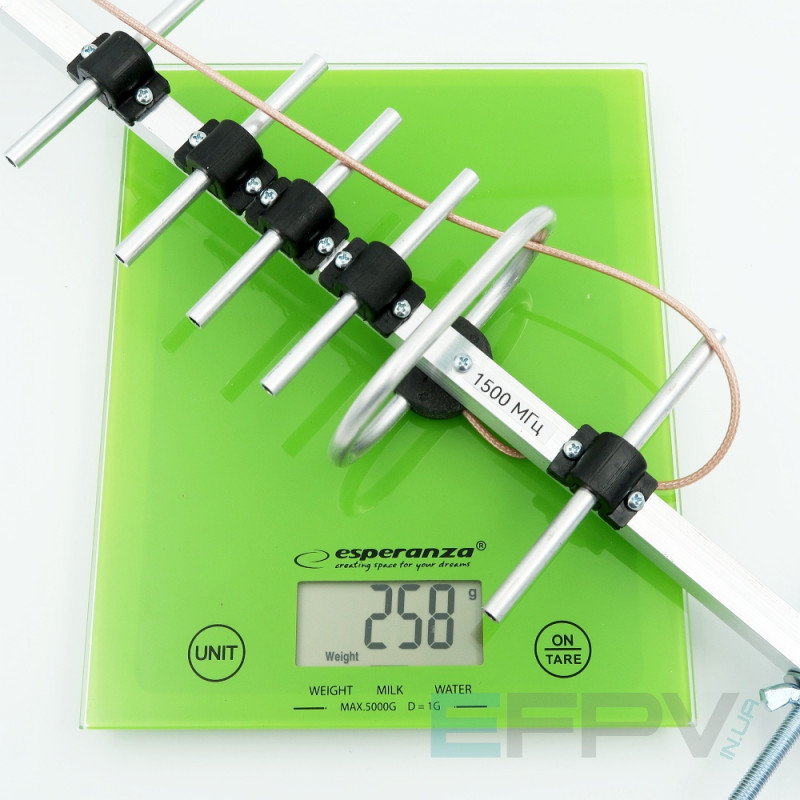

- Lightweight: 258 g — easy to mount on various brackets.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency | 1500 MHz |
| Polarization | Linear |
| Number of Sections (Directors) | 9 |
| Beam Angle | 35° |
| Connector | SMA |
| Material | Aluminum |
| Gain | 13.4 dBi |
| Size | 550*99*56 mm |
| Weight | 258 g |
The Yagi Antenna 1500MHz 9 Sections 13.4 dBi is suitable for both domestic and professional use. It is optimal when directional signal reception or transmission is required, for mounting on outdoor structures, or when connecting equipment with an SMA interface. Thanks to its low weight and dimensions, installation is quick and convenient, and the aluminum construction ensures a long service life even in harsh weather conditions.
This model demonstrates good efficiency in signal amplification tasks at 1500 MHz, when directional communication with minimal interference is needed. Installation on a bracket or anchor structure allows for precise aiming of the antenna at the signal source, reducing losses and improving reception quality.
Yagi antennas can be purchased in our online store, Flash Army. We offer official products from the manufacturer with warranty and technical support. If you need a reliable directional solution for signal amplification — this model will be an excellent choice.
