Product Code: FA103-16618-103
In Stock
262 грн.
This product has a minimum quantity of 12
Buy this product in 1 click:
Main specifications
Connector type:
SMA / RP‑SMA
Material:
copper foil PCBs
Polarization:
RHCP
Weight (depends on size):
6-8 g
Frequency range:
5.55 – 6.05 GHz
All specifications
We will deliver this product:
Payment
Description
*** Minimum order - 3000 UAH! Shipping from a remote warehouse. Shipping time 2-5 days.

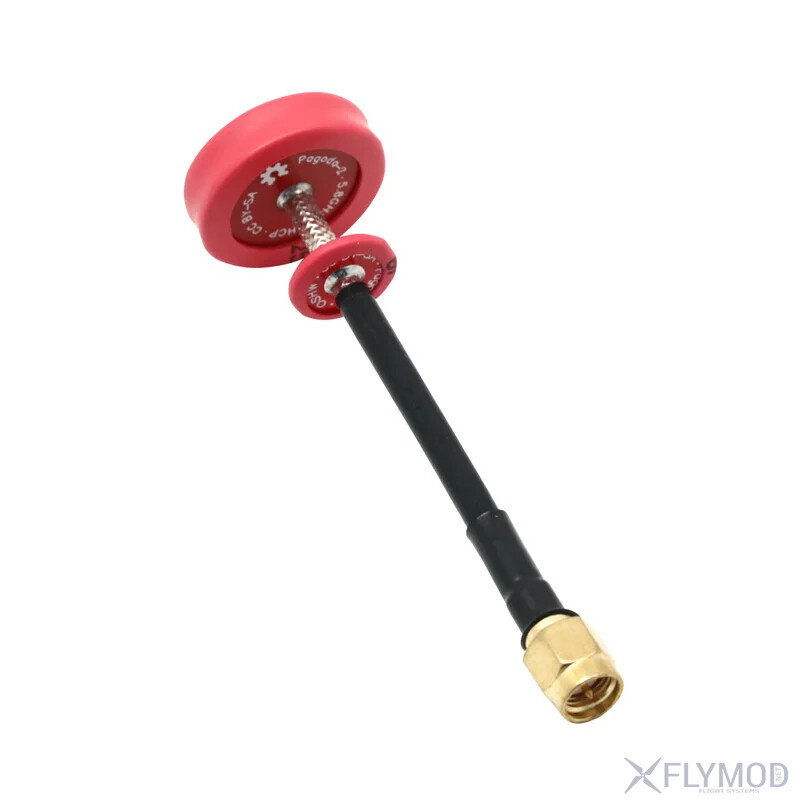

Pagoda-2 5.8G omnidirectional circularly polarized antennas, designed by Maarten Baert. The antenna structure consists of 3-layer PCBs covered with 1oz copper foil, and the metal core rod material is optimized to achieve very low VSWR.
In this version of the antennas, the PCBs are wrapped in heat shrink to protect against damage.
Please note! The color of the antenna may vary depending on the batch!
Specifications
- Center frequency: 5.8G
- Bandwidth: 500MHz (5.55-6.05GHz)
- Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
- Axial ratio:
Specifications
Connector type
SMA / RP‑SMA
Material
copper foil PCBs
Polarization
RHCP
Weight (depends on size)
6-8 g
Size
50 mm x 80 mm
Antennas
Frequency range
5.55 – 6.05 GHz
Beam angle
360° (Omnidirectional)
Enhancements
2 dBi
