HELICAL 5.0GHz Antenna — A Reliable Solution for Circular Polarization

Introducing the Helical antenna from SkyReach — a model that combines the compactness of an open-type design with high efficiency in the 4000-5900 MHz range. Product name: HELICAL 5.0GHz 16dBi RHCP Antenna, 9-turn, Open Type SMA. Designed for applications with right-hand circular polarization (RHCP) where stable and directional coverage is required.

This antenna demonstrates excellent VSWR performance: in the 4000-5900 MHz range, the antenna consistently has a VSWR below 1.5, ensuring minimal losses. Separately, the technical specifications provide a VSWR value of 1.2 for 4000-5300 MHz. Such performance makes it one of the best in its class for impedance matching stability.

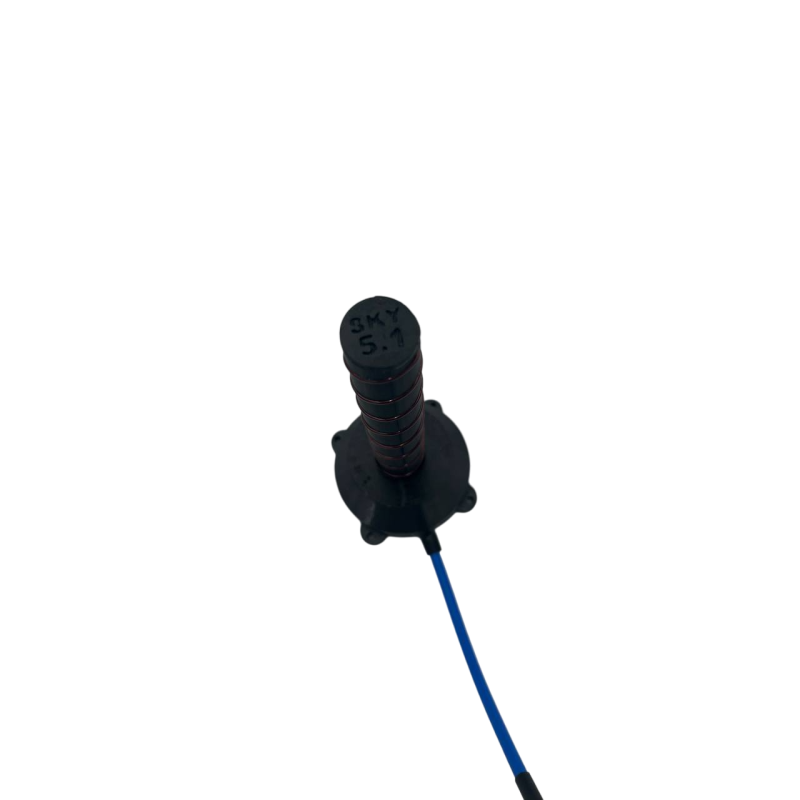

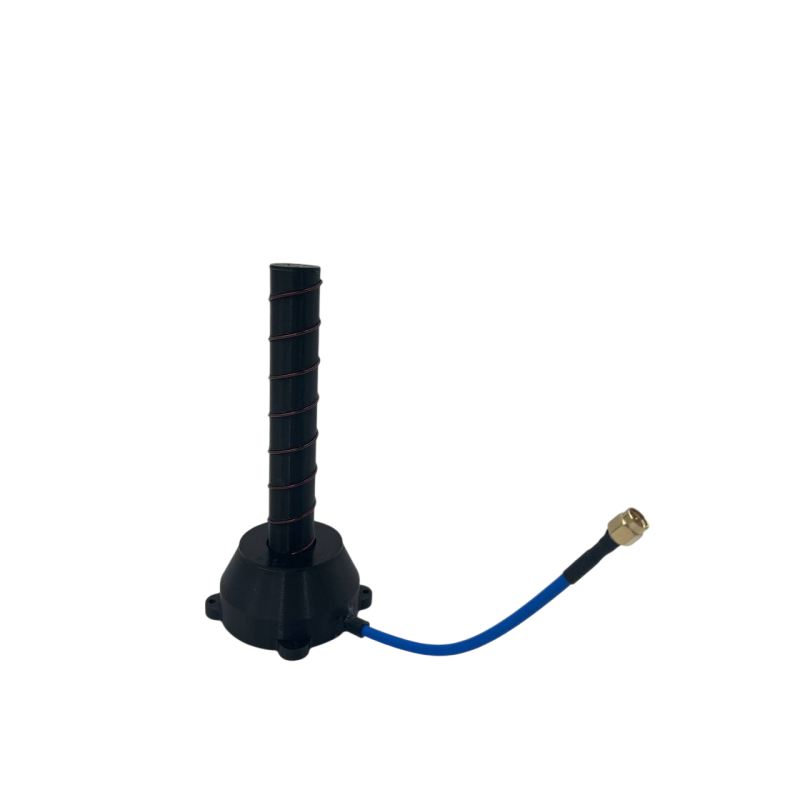

The antenna has a beamwidth of 30 degrees, providing focused coverage for signal transmission and reception over medium and long distances. The design includes 9 turns (turns: 9) with a 1 mm enameled copper wire conductor, ensuring an optimal balance between mechanical strength and electrical characteristics.

Technical Specifications

• Frequency Range: 4000-5900 MHz
• Beamwidth: 30 degrees
• Gain: 12 dBi (in specification) — 16 dBi is also indicated in the model name
• Reflector Diameter: 54 mm
• Cable Length: approximately 9 cm
• Antenna Conductor: 1 mm enameled copper wire
• Turns: 9
• Polarization: RHCP
• VSWR: 4000-5300 MHz — 1.2; in the 4000-5900 MHz range, VSWR < 1.5
• Maximum Input Power: 50 W
• Connector: SMA
• Antenna Weight: g
• Quantity: 1 piece

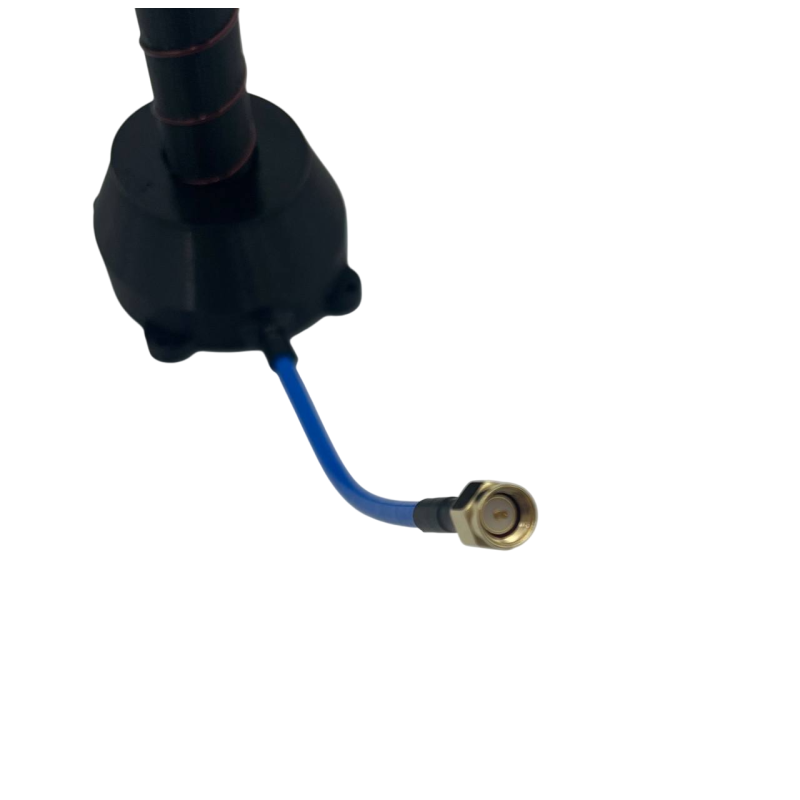

Design Features: The open-type Helical antenna ensures easy installation and cooling, while its compact size (reflector diameter 54 mm) and short cable (about 9 cm) facilitate integration into various systems. Thanks to right-hand circular polarization (RHCP), the antenna better resists multipath interference and reduces mutual interference with linearly polarized devices.

Application: The antenna is suitable for unmanned systems, radio relay links, industrial and professional wireless solutions in the 4–5.9 GHz range, where matching stability and directivity are critical.

Manufacturer: SkyReach. Product Type: Antennas > Circular Antennas > Helical Antenna. The model is supplied as 1 piece, with an SMA connector for easy connection to equipment.

Custom manufacturing available to meet your needs! Check out the improved version of our most popular Helical 9 antenna.
