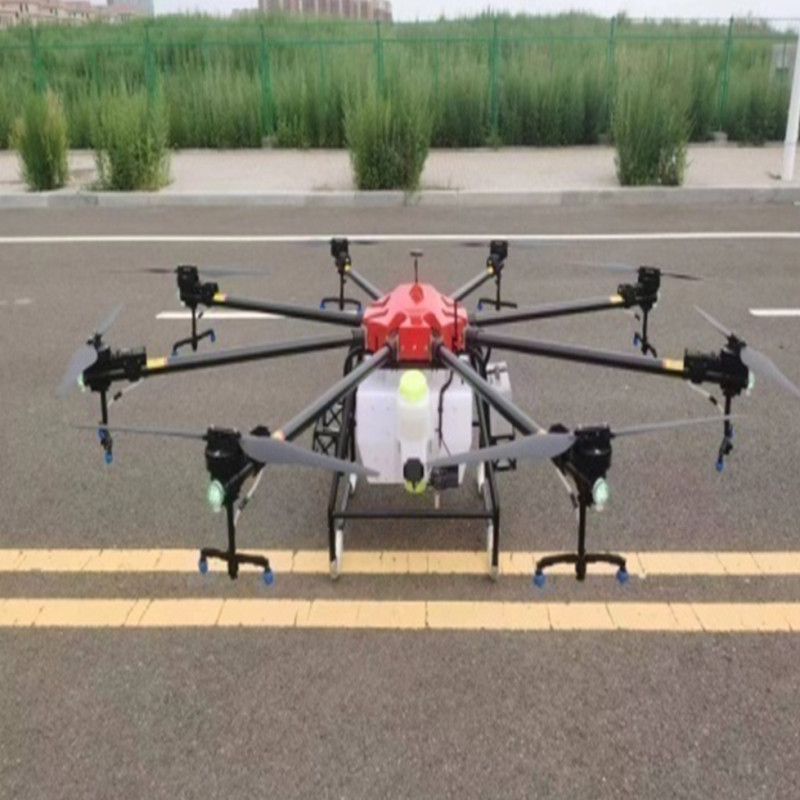

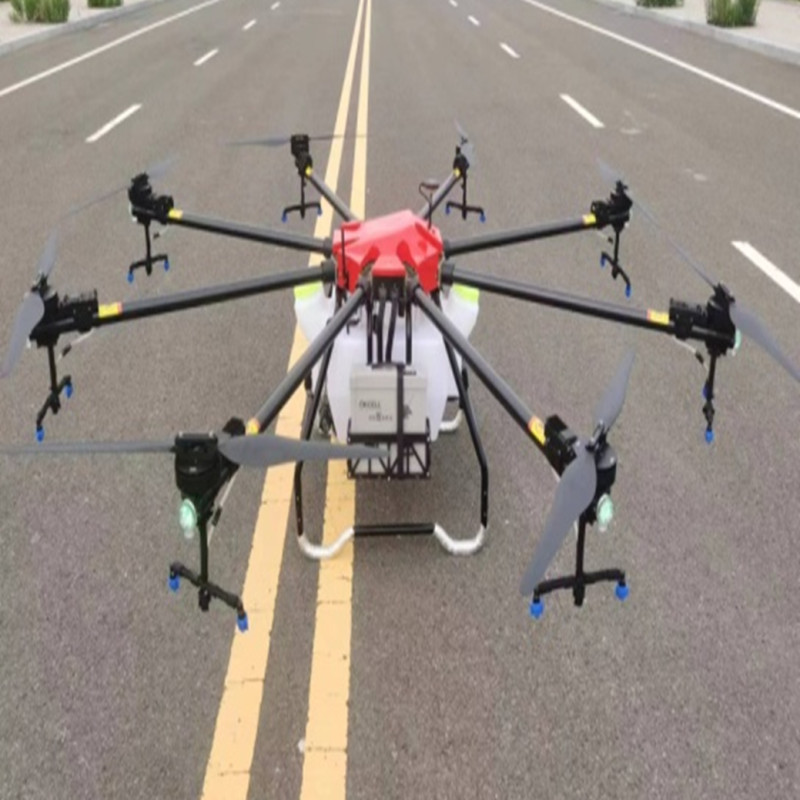

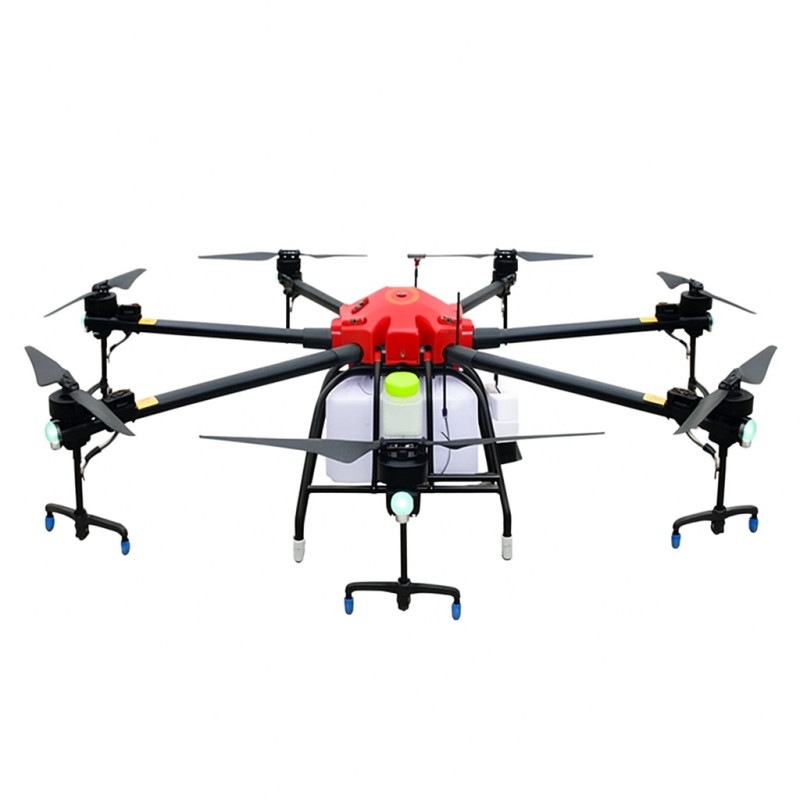

Agrodrone FPVXSF JK8-72 72L Plant Protection UAV
Brand: FPVXSF
Category: Drones & Quadcopters > Agro Drones
Product type: Drones, EW, Drone Detectors, Components > Drones & Quadcopters > Agro Drones
The FPVXSF JK8-72 agrodrone with a 72L tank is a professional unmanned aerial vehicle for field treatment: spraying, applying protective agents, and operational agricultural processing. The model combines high payload capacity, reliability, and intelligent control functions. Delivery time is 15 to 30 days.
Product features:
- Fully autonomous operation
- Automatic route planning
- Night flight function
- Reinforced 4.5 mm carbon arms
- High drop resistance
- Payload — 80 kg, maximum takeoff weight — 160 kg
- Foldable design for convenient transport
- Spraying width — 15-20 m
- Waterproof body
- Powerful dual-channel 42000 mAh battery (high-voltage version)
- Dual spraying system with 16 nozzles, flow rate — up to 16 l/min
- Remote control with a bright 5.5-inch screen
- Waterproof brushless pump and ESC
- Optimized design with hidden wiring and pipelines
Specifications:
- Material: aviation carbon + aluminum
- Chassis span: 2890 mm
- Folded size: 1000×900×2100 mm
- Maximum takeoff weight: 160 kg
- Maximum payload: 80 kg
- Drone weight: 51 kg
- Tank capacity: 72 L
- Flight height: ≤ 20 m
- Flight radius: ≤ 5000 m
- Flight time: 7-20 min
- Flight speed: 1-12 m/s
- Motor lifespan: ≥ 100,000 h
- Frame service life: ≥ 10 years
- Working spraying width: 8-20 m
- Propellers: 43", foldable
- Operating time at full load: 7-10 min
- Hovering: in any position
- Spraying performance: 8-16 l/min
- Spraying system: imported high-pressure anti-drift aerosol nozzle
- Treatment efficiency: ≤ 2500 mu/day
- Safe wind speed for takeoff/landing: ≤ 7 levels
- Battery: 18S30000 mAh
- Flight stability: √√√
- Fall protection: √√√
Flight functions:
- Automatic point setting
- Automatic return
- Automatic obstacle avoidance
- Return on signal loss or low battery
- AB route memory
- Autonomous planning
- Breakpoint memory
- Resume spraying after stop
- GPS system, video transmission, ground station
- Wave radar (optional), avoidance radar (optional)
- Beyond visual line of sight (BVLOS) flights
- Automatic altitude setting
- Flight modes: manual / intelligent / fully automatic
Package contents:
- Basic kit:
- JK8-72 drone — 1 pc
- 14S42000 mAh battery — 1 pc
- Charger — 1 pc
- Spreader — 1 pc (for an additional fee, check with manager)
- Optional modules (for an additional fee, check with manager):
- Obstacle avoidance radar — 1 pc
- CANHUB — 1 pc
- Ground simulation radar — 1 pc
- Pro aerosol nozzles ×2 — 1 set
The FPVXSF JK8-72 is a solution for farmers and agricultural enterprises that require a highly autonomous agrodrone with a large tank capacity (72 L), significant payload capacity (up to 80 kg payload), and a wide range of protective and navigation functions. The robust construction of aviation carbon and aluminum, foldable 43" propellers, waterproof components, and a dual-channel battery ensure reliable operation in field conditions. Additional modules (avoidance radar, CANHUB, special nozzles) allow for expanding functionality for specific tasks.
Key advantages: treatment efficiency up to ≤ 2500 mu/day, spraying performance 8-16 l/min, optimized hidden wiring for increased safety and easy maintenance, BVLOS flight capability for working on large areas, waterproof pump and ESC for reliability in challenging weather conditions.
