EW Jammer «Chugayster‑M» UKR REB System — effective radio jamming device for UAV protection

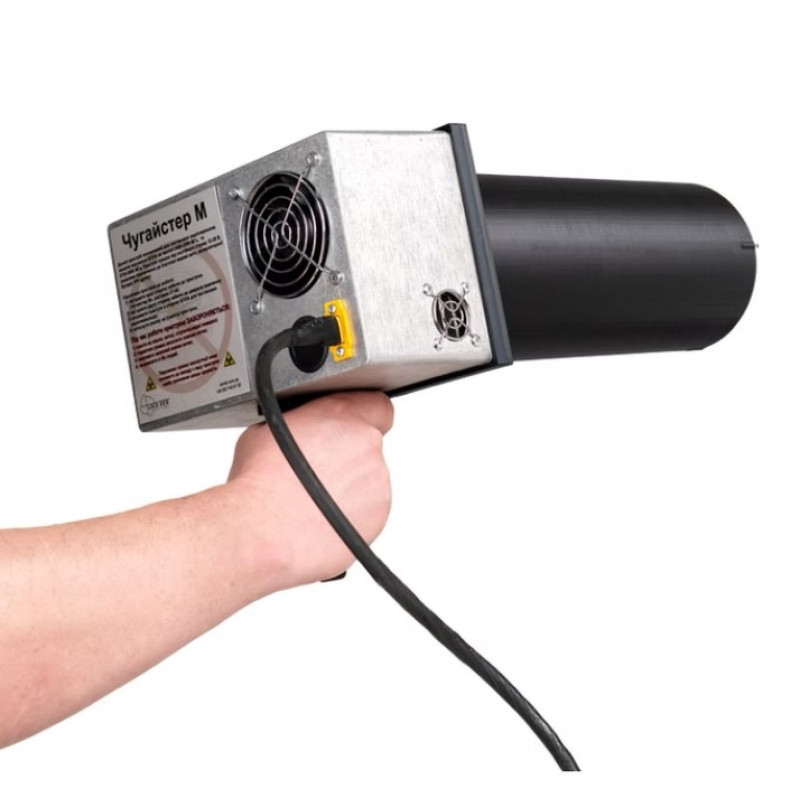

EW Jammer Chugayster‑M from manufacturer UKR REB System is designed to create concentrated radio interference for the control channels of many types of UAVs, including the DJI Mavic series. The device operates at frequencies of 2400–2500 MHz and 5725–5850 MHz, is powered by a 12–28 V DC source, and can run on the included battery or an FPV drone battery. The stated operating range is up to 1000 meters, while in real field tests with an Alientech amplifier, radio suppression of the DJI Mavic multi-rotor control system reached 500 m.
Device Class
Class: EW Jammers > Trench EW Jammers. The device is designed for individual protection of military personnel from DJI Mavic-type drones at control frequencies of 2400–2500 MHz and 5725–5850 MHz.
Features and Design
- Supports two jamming bands: 2400–2500 MHz and 5725–5850 MHz.
- Each module has a power of 40 W; high-quality modules with GAN transistor and circulator are used.

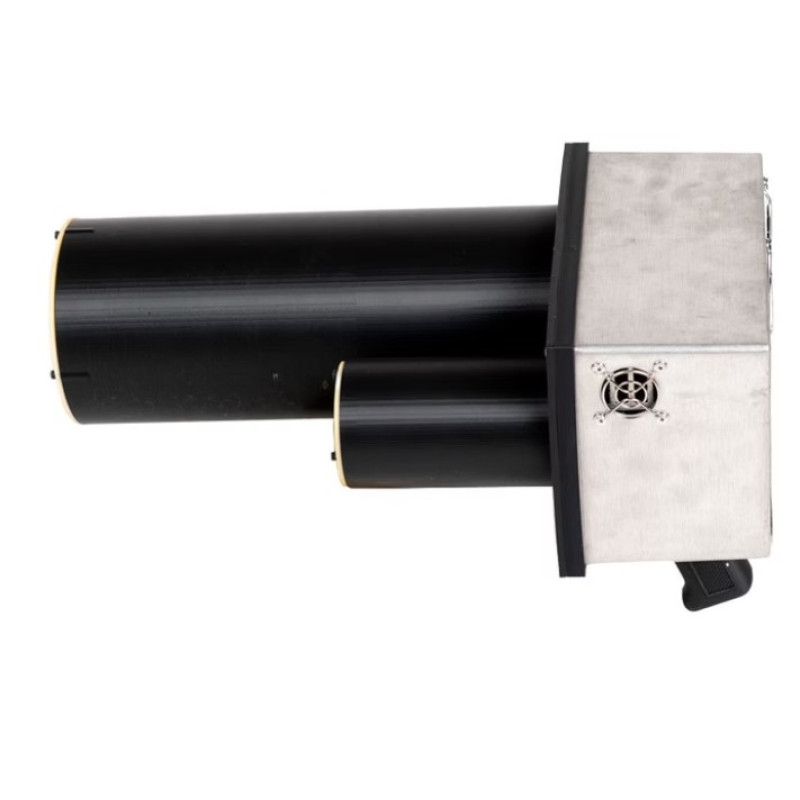

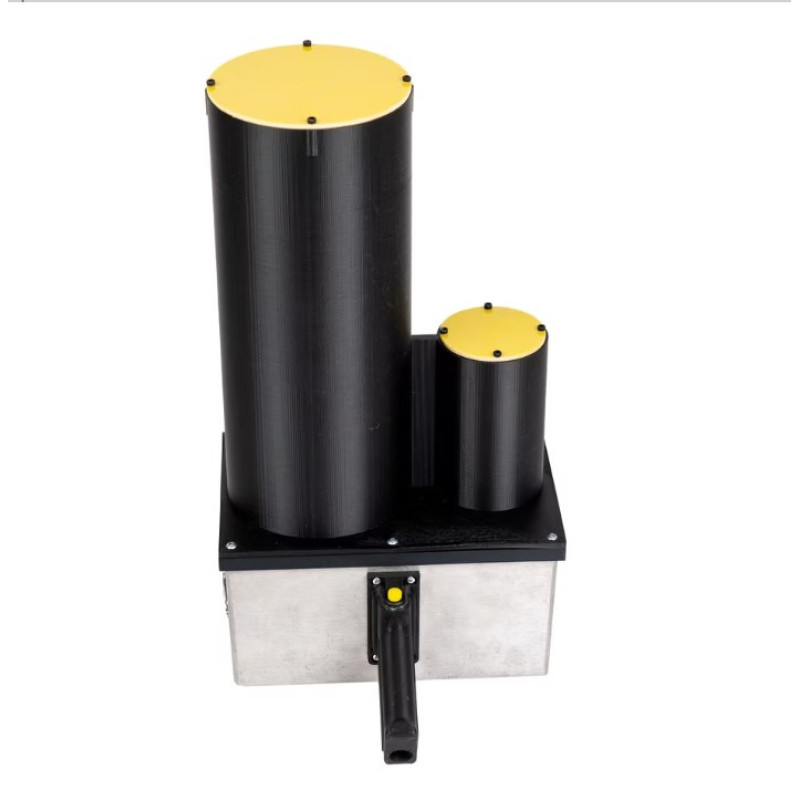

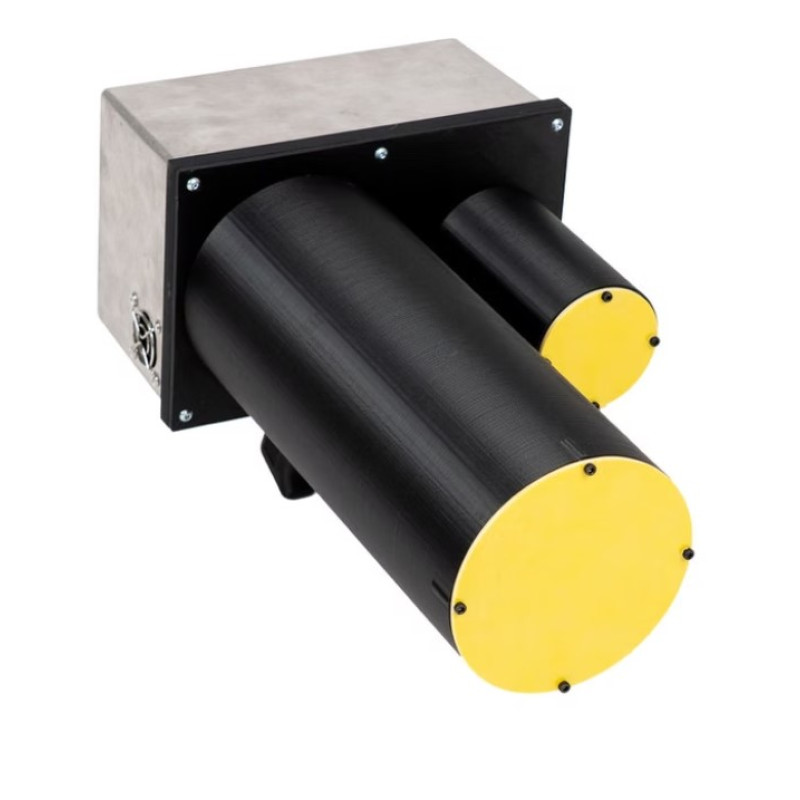

- Antenna type: directional helical antennas; the antenna beam covers approximately 60° horizontally and 40° vertically for concentrated signal probing and suppression.

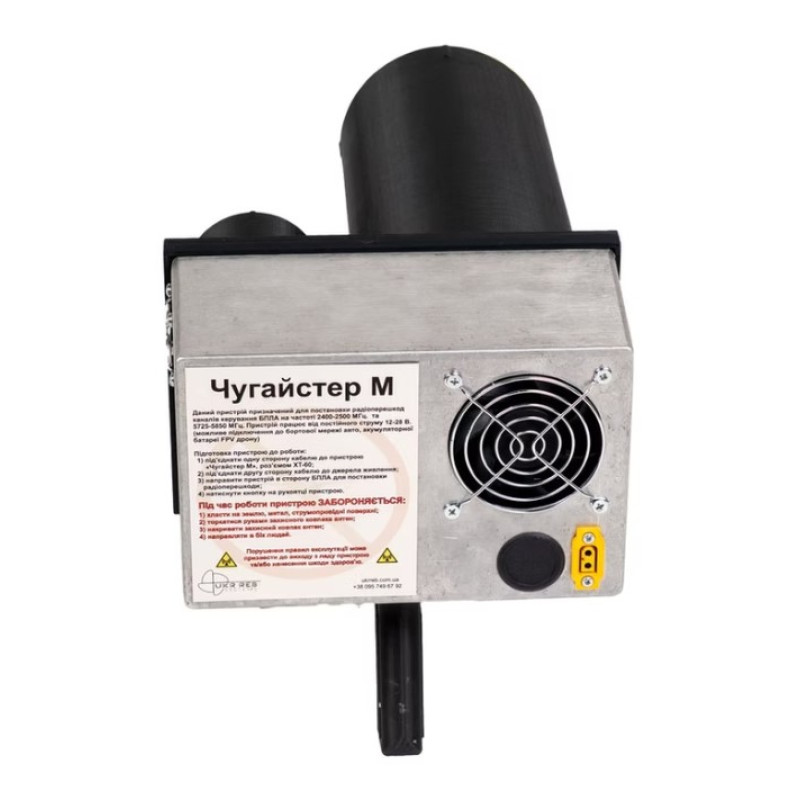

- Cooling: active.
- Casing: metal with plastic protective antenna covers; the design is optimized for field conditions and tactical use.
Technical Specifications
| Parameter | Value |
|---|---|
| Two jamming bands | 1) 2400–2500 MHz, module power 40 W, antenna type: helical; 2) 5725–5850 MHz, module power 40 W, antenna type: helical |
| Modules | GAN transistor and circulator |
| Operating voltage range | 12(-1+3) V and 24(-2+4) V (with possibility of connecting a 12–28 V source) |
| Nominal power consumption | Not more than 360 W |
| Cooling | Active |
| Casing | Metal with plastic protective antenna covers |
| Dimensions (max) | Width 230 mm, Height 300 mm, Length 415 mm |
| Weight (max) | 4.15 kg |

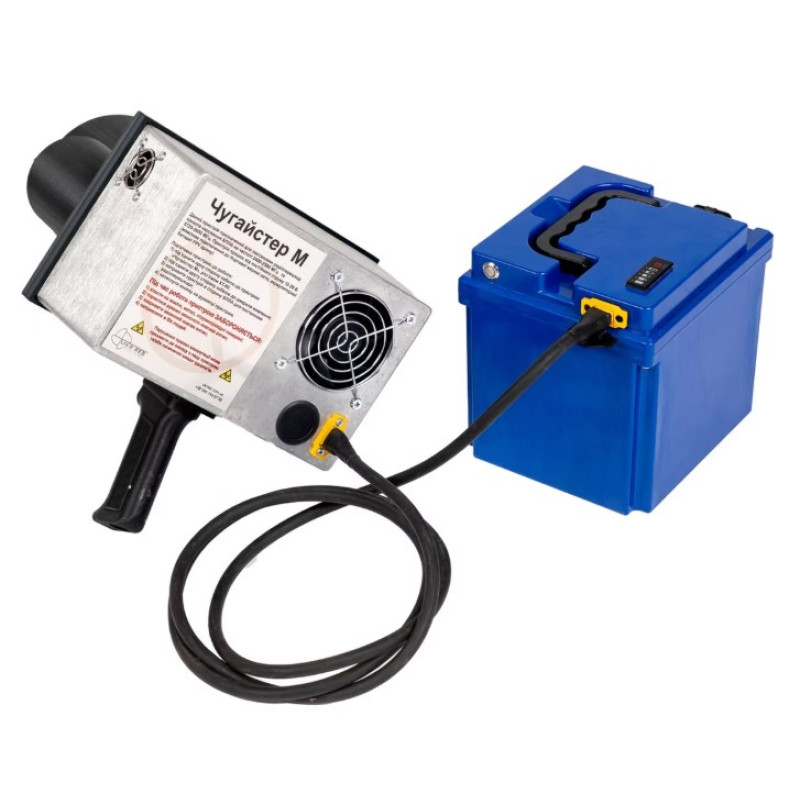

| Power type | DC 12–28 V; included 28 V 20 Ah battery; possibility of powering from FPV battery (6s2p – 8000 mAh) |
| Autonomy | From 28 V 20 Ah battery up to 2 hours; from FPV 6s2p 8000 mAh battery up to 30 minutes |
Test Results and Conditions
Radio suppression of the control system of a DJI Mavic multi-rotor UAV (with Alientech amplifier) was successfully achieved at a range of 500 m.
- Testing conditions: distance from control panel during testing — 3000 m.
- Flight altitude during testing — 50 m.

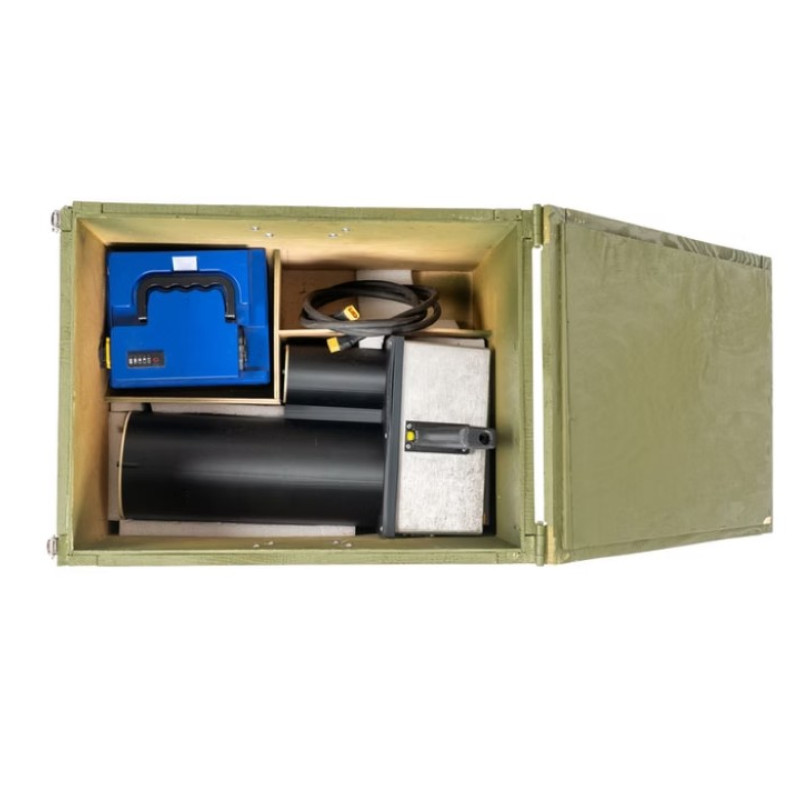

Package Contents
- Radio jamming device «Chugayster» — 1 pc.
- Power cable — 1 pc.

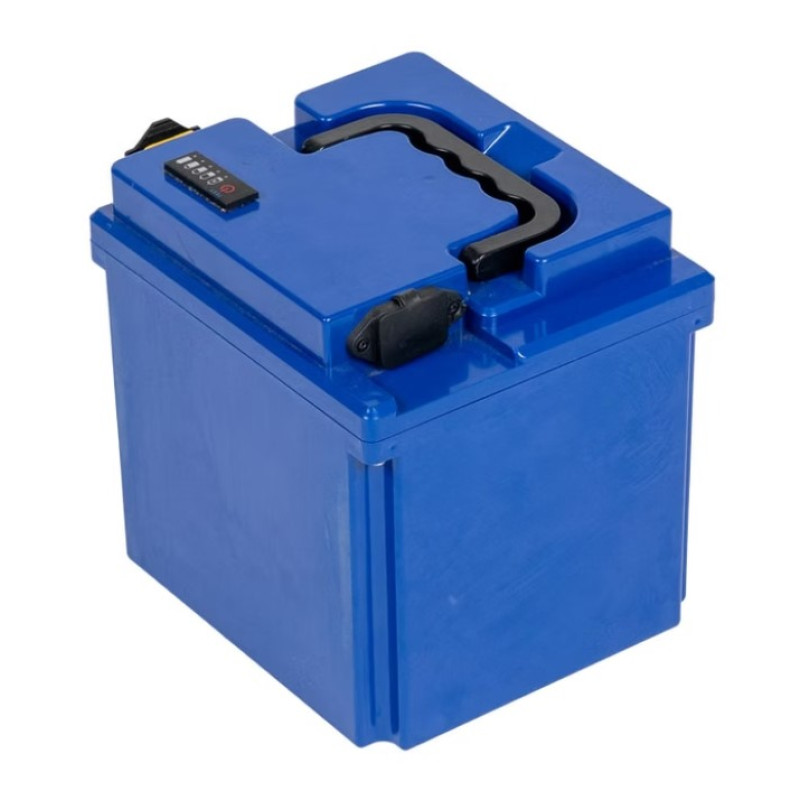

- 28 V 20 Ah battery — 1 pc.
- EW product packaging.
- 28 V 5 A charger.
- Operating manual.
- Passport.
The device has undergone codification by the Ministry of Defense of Ukraine. NATO stock number: 5865-61-018-5999. This compact and powerful EW jammer combines mobility, high radio interference density, and a reliable cooling system, making it suitable for field operations and tactical applications where personnel protection from controlled drone threats is required.
