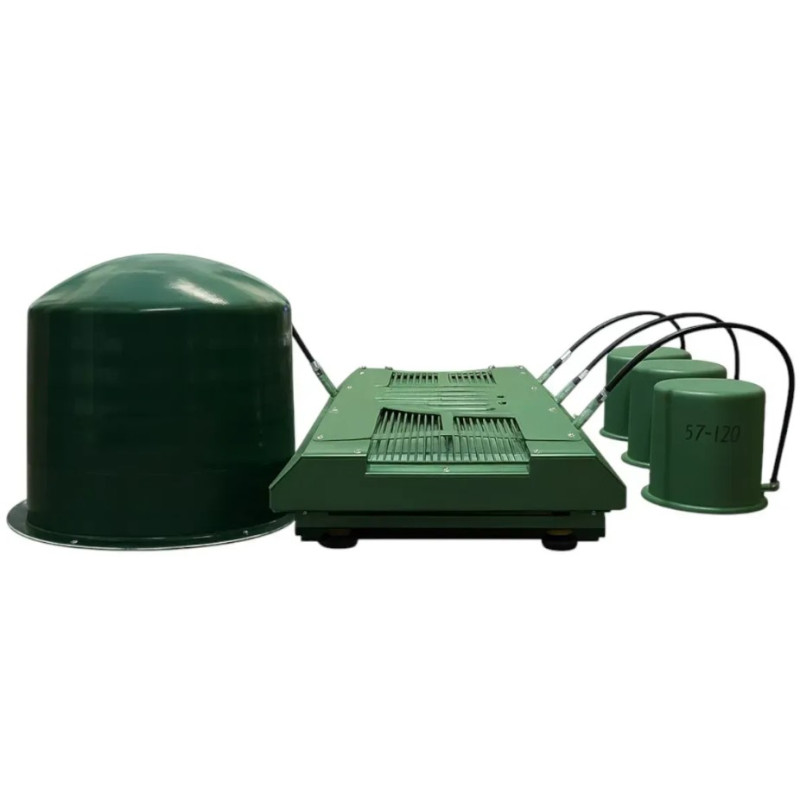

The SHKVARKA TYPE6 V4 electronic warfare (EW) system is a multi-channel jamming system designed for effective blocking of enemy UAV control and data transmission channels in the 300–1050 MHz range.

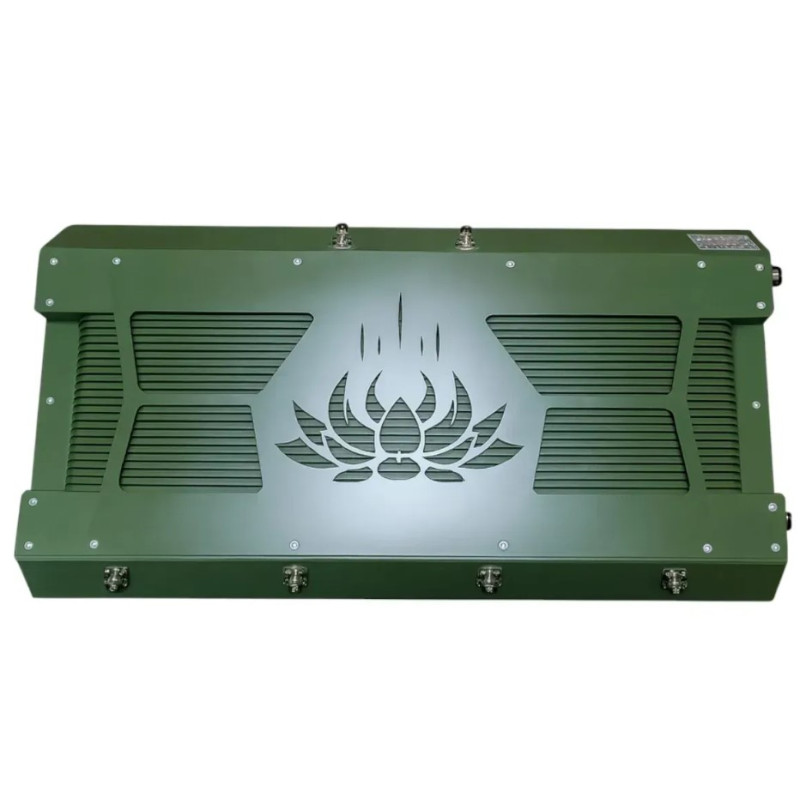

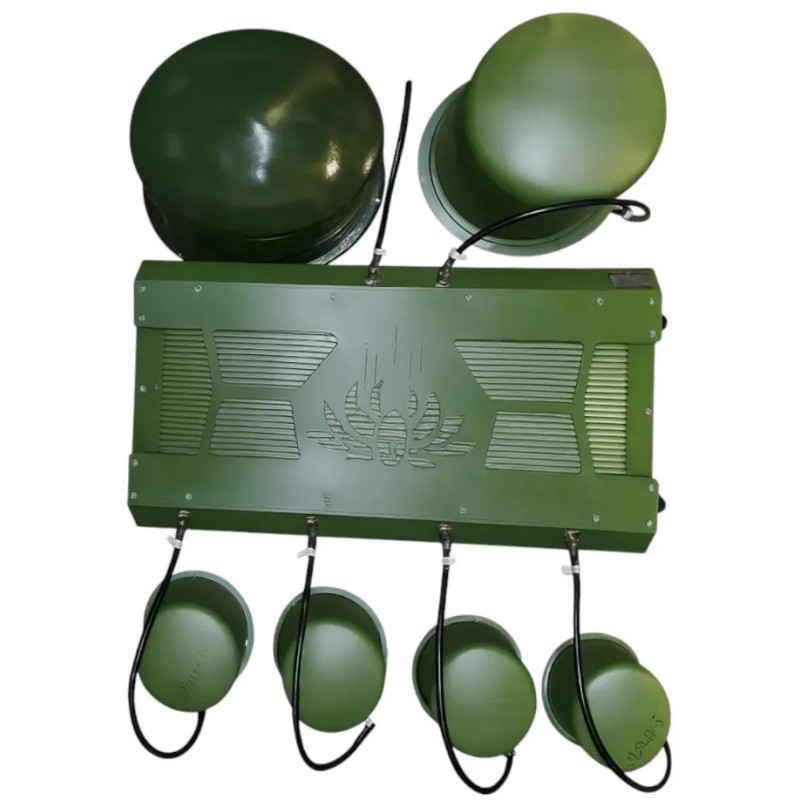

The device is equipped with 6 independent channels, each with a power of up to 50 W, and dome antennas with circular polarization, ensuring a wide range of action. The body is made of aluminum with an improved cooling system and anti-vibration pads, and it is powered by a built-in 28V/105Ah LiFePO4 battery, allowing autonomous operation for up to 5 hours.
This system has been successfully used at the front for several years, proving its effectiveness in numerous combat scenarios and establishing itself as a reliable means of creating a "radio interference dome" for protection against reconnaissance drones and FPV UAVs.
Specifications
| Antenna type | Dome |
|---|---|
| Jamming power at jammer output, W | 50 |
| EW jamming frequency ranges | 300-1050 |
| EW jamming frequency ranges | 300-1200 MHz |
| EW jamming range, m | 150 |
| Detection frequency ranges | 300-1050 |
| Power supply voltage, V | 28 |
| Ability to operate from internal battery | No |
| Continuous operation time on battery, min | 300 |
| Product codified | No |
