WALKSNAIL AVATAR HD NANO KIT V3 Video System
Manufacturer: Walksnail. Product Type: Drones & Quadcopters > Transmitters.
The Walksnail Avatar HD Nano Kit V3 is a compact, lightweight, and functional video system for FPV pilots who require high image quality and easy integration into racing or freestyle drones. The system combines a powerful 500mW transmitter, a wide field of view, and a built-in 32GB recorder, allowing autonomous recording in 1080P/60fps format on a 4:3 aspect ratio sensor without an additional action camera or SD card.
Key Advantages of Avatar HD Nano Kit V3
- Supports 1080P/60fps recording on a 4:3 aspect ratio sensor for natural framing and maximum frame detail.
- Compatibility with a wide power input range of 3.1–13V allows connecting the system to various onboard power sources.
- A powerful 500mW transmitter ensures stable video signal transmission even in challenging operating conditions.
- The V3 Nano camera is extremely compact: 14×14 mm in size and a camera weight of 3g; a 2.1mm lens and 160° FOV make it ideal for minimal frames and racing configurations.
- Built-in 32GB memory allows storing full flight recordings without additional media.
- Canvas mode simplifies OSD setup and system parameter control directly in flight.
- The kit includes all necessary cables and mounts for quick integration into the quadcopter.
Avatar HD Nano Kit V3 Specifications

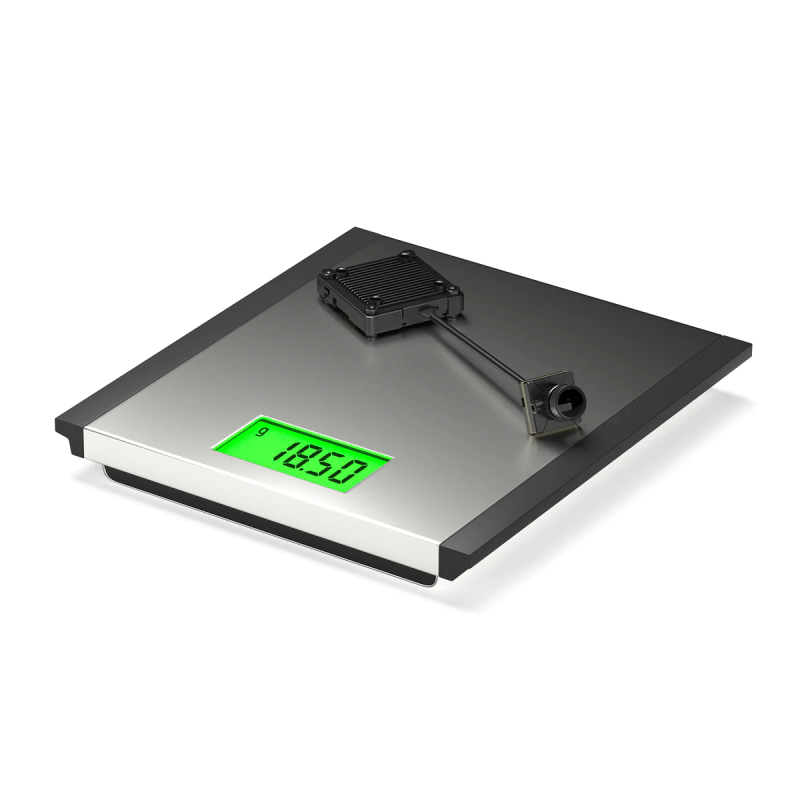

Below are the technical parameters of the kit and its individual components. Please note that the technical specifications indicate the weight of the nano-camera (3g) and the total weight of the kit/module (18.5g).
| Specifications | Parameters |
|---|---|
| Voltage | 3.1~13V |
| Power | 500 mW |
| FOV (Field of View) | 160° |
| Resolution | 1080P/60fps |
| Sensor Aspect Ratio | 4:3 (native) |
| Built-in Memory | 32GB |
| Weight | 18.5g |
| Camera Size | 14×14 mm |
Package Contents
- Avatar HD Nano Kit V3 X1
- 4 Pin USB Cable X1
- 4 Pin Power Cable X1
- M2x4/5/6mm Screws X2
- M2x14mm Screws X4
- M2.5 0.5mm Gasket X4
- Seal 2.1×3.4×1mm X5
- 14 to 19mm Bracket X1
The Avatar HD Nano Kit V3 from Walksnail is an excellent choice for pilots seeking a combination of low weight, compactness, and high-quality video transmission and recording. Thanks to the built-in 32GB recorder and Canvas mode, OSD setup becomes intuitive, while compatibility with a voltage range of 3.1–13V and a transmission power of 500mW ensure reliable operation in various flight configurations.
