Herelink 4K60 Industrial Drone Split camera with HDMI output, EIS 4.0

Brand: Herelink. Category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters. This industrial video camera is designed for integration into professional drones and platforms that require high-quality imaging, hardware reliability, and extensive connectivity options. The Herelink 4K60 combines a powerful chipset, a high-quality sensor, and advanced functionality for mapping, inspections, cinematography, and other tasks.

Brief Description

The device provides video recording with a resolution of up to 4K60FPS, features EIS 4.0 gyroscopic stabilization, and GYROFLOW support for additional software stabilization. Thanks to its flat color profile and the ability to export gyroscope data in CSV format, the camera's footage is easily amenable to professional post-processing. The camera is suitable for industrial use, mapping, inspection work, and filmmaking.

Technical Specifications

• DSP Chipset: Ambarella H22S85.
• Sensor: SONY IMX577.
• Video Resolution: 4K (3840×2160) / 60fps; 4K (4000×3000) / 30fps; 4K Ultra / 30fps; 2.7K / 60fps; 2.5K / 60fps; 1080P / 200fps; 720P / 240fps and other modes.
• Photo Resolution: 16MP, 14MP, 12MP, 8MP and other options.
• Connectivity: 2.4G WIFI + Bluetooth 4.2 (supports control via app or Bluetooth remote; WiFi module needs to be installed separately).
• GPS: possibility to connect a GPS module for recording coordinates in video (GPS module needs to be added).
• HDMI: supports output up to 3840×2160 / 30fps via HDMI output.
• Stabilization: EIS 4.0 gyroscopic video stabilization; GYROFLOW support for improved video stability in post-processing.
• Color Format: supports flat profile for flexible color grading.
• Gyroscope Data Export: supports gyroscope data output in CSV format for synchronization and hardware/software stabilization.
• USB Network Interface: supported (requires special software configuration).
• Settings Restore: supports one-click factory settings restore.
• Input Voltage: wide range 5–24V.
• Port: USB Type-C.

Diagrams, Interfaces, and Instructions

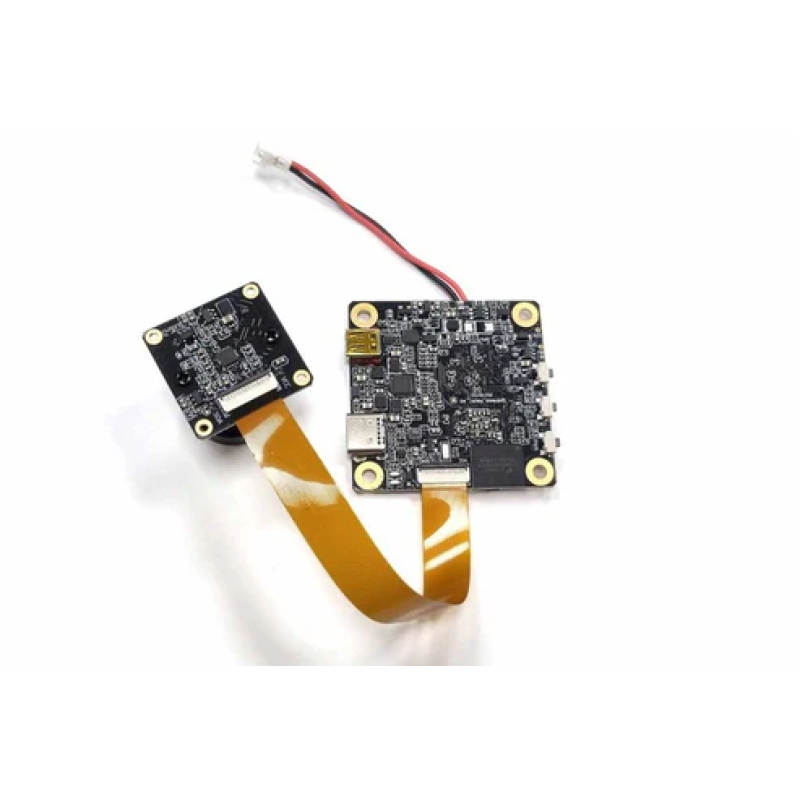

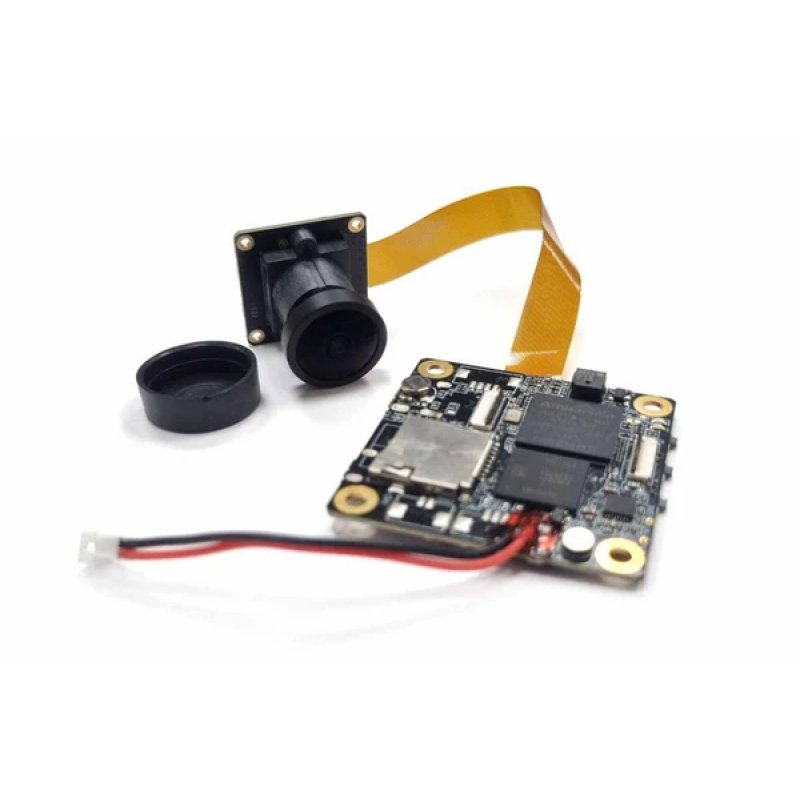

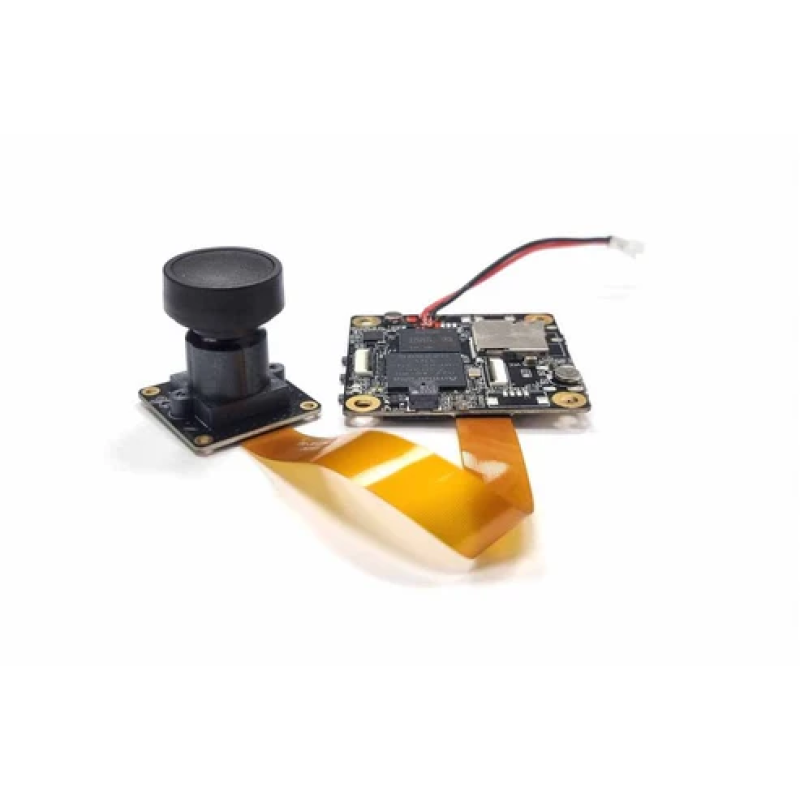

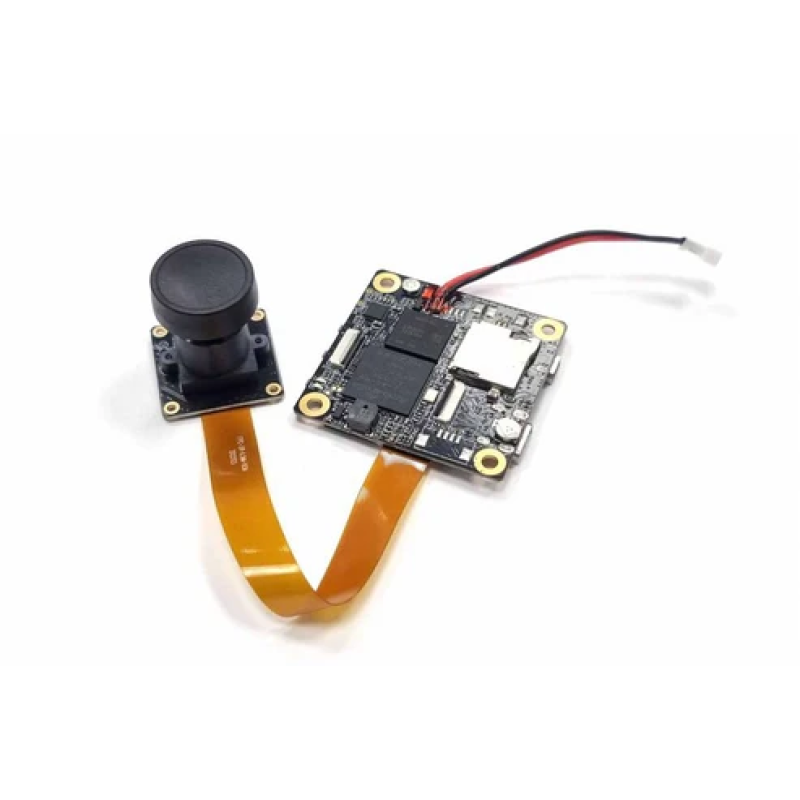

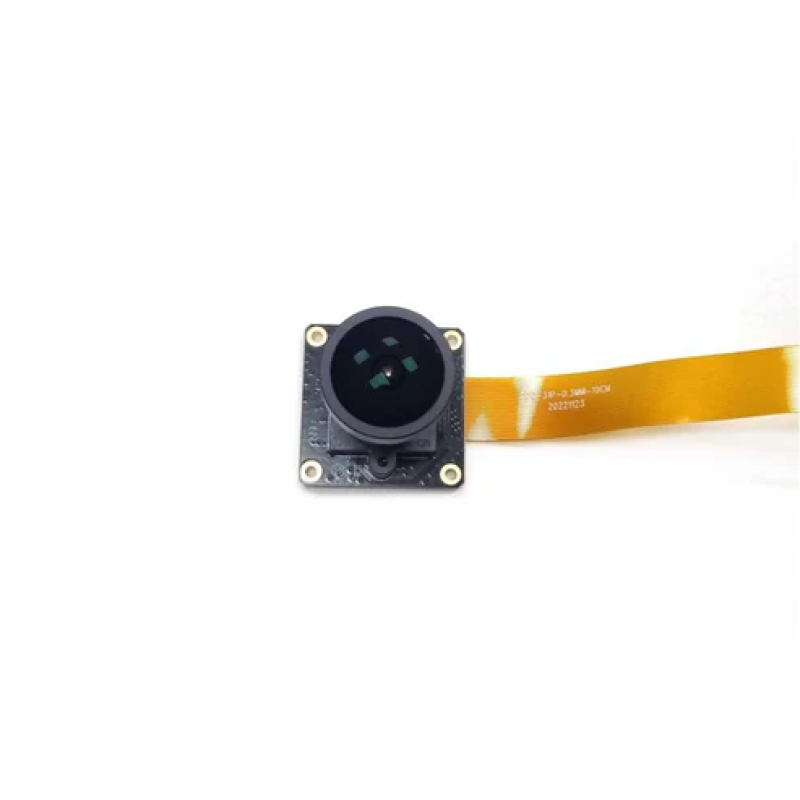

Board Features and Connectivity: The PCBA board has many expansion interfaces reserved for additional modules and customization. A GPS module can be integrated for embedded coordinate recording in video and track synchronization. The board includes ADC key interfaces and two IO outputs for controlling motors or other equipment. Many functions are reserved and can be added or configured according to customer requirements. The default length of the connecting cable between the lens module and the motherboard is 8 cm; custom options up to 20 cm are available.

Button Functions and Control

• Power/Mode Button: camera on/off, switching operating modes.
• OK Button: start and stop video recording.
• Down/Menu Button: move down in the menu, enter playback mode.

The camera provides intuitive hardware control, a wide range of interfaces for integration into drone systems, and the possibility of professional post-processing of captured material thanks to flat profile support and gyroscope data export for further stabilization. The Herelink 4K60 is suitable for industrial applications, mapping, inspections, cinematography, and other tasks requiring stable high-resolution imaging and reliable hardware performance. Other technical and software capabilities can be implemented through additional modules and settings upon request.
