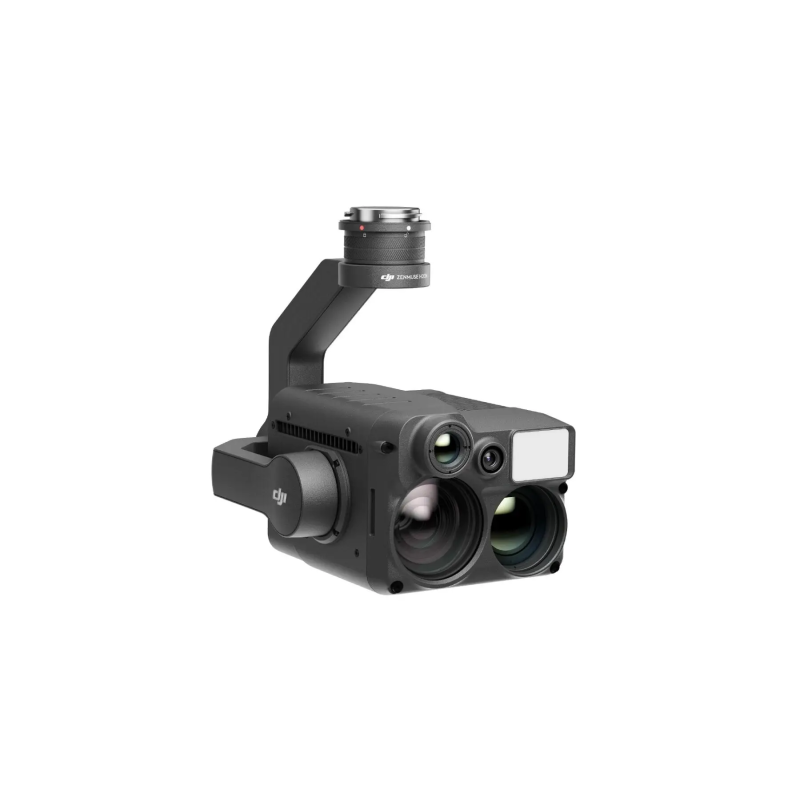

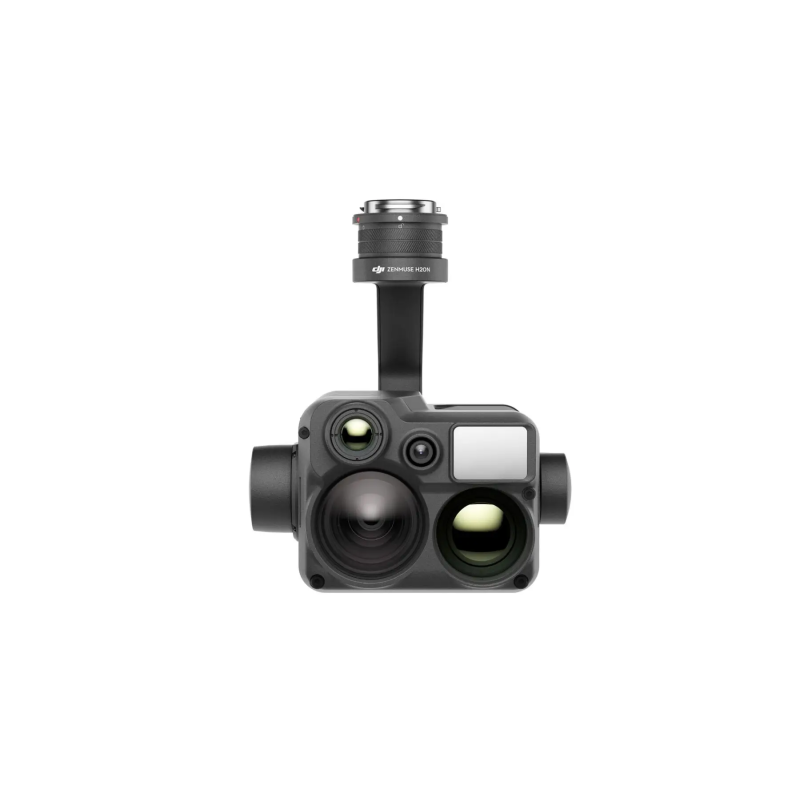

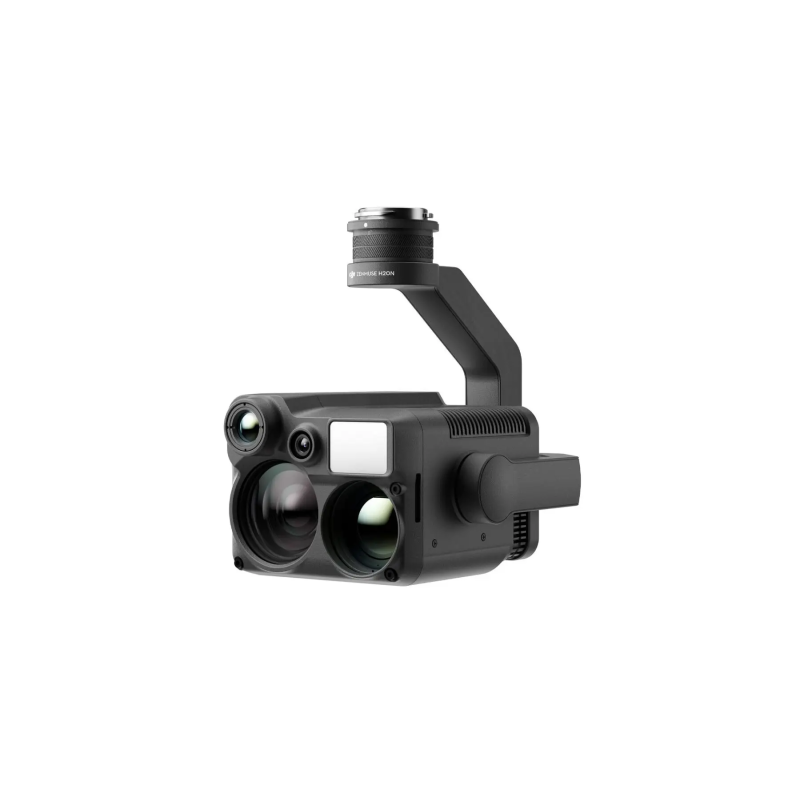

DJI Zenmuse H20N — Advanced Thermal Camera for Night Operations
Product Name: DJI Zenmuse H20N Thermal Camera (ID: 10954). Brand: DJI. Category: Drones & Quadcopters > Drone Components > Drone Parts > Cameras.
The Zenmuse H20N is a comprehensive, multi-functional night vision system designed for professional tasks requiring high sensitivity and precise thermal analysis. The device combines starlight sensors in both telephoto and wide-angle cameras, two enhanced-sensitivity thermal imagers, a long-range laser rangefinder (LRF), as well as hybrid optical zoom and advanced night observation capabilities. This makes the Zenmuse H20N an optimal choice for infrastructure inspections, rescue operations, and night monitoring.
Key Features of Zenmuse H20N
- Starlight Sensors: Integrated sensors in telephoto and wide-angle cameras for improved night vision even in minimal lighting.
- Thermal Imagers: Two operating modes with 640×512 resolution and enhanced sensitivity; features 2× and 8× optical thermal lenses for flexible thermal image detail.
- Hybrid Optical Zoom: Up to 20× hybrid optical zoom, enabling detailed object detection at long distances.
- Laser Rangefinder (LRF): Maximum measurement range of 1200 m; measurement accuracy: ± (0.2 m + D×0.15%).
- Synchronized Split-Screen Zoom: Simultaneous zooming of images from thermal and starlight cameras for faster and more accurate operator analysis.
- Night Image Enhancement: Intelligent algorithms for improving scenes in darkness, enhancing frame readability in limited lighting.
- Temperature Functions: Color palettes for displaying thermal data, isotherms for highlighting specific temperature ranges, and temperature alarms — instant notifications in the DJI Pilot app when set thresholds are exceeded.
- Gain Modes: High and low gain modes available for adjusting the temperature range and adapting to various shooting conditions.
- Image Format: Saves in R-JPEG format with embedded temperature information, facilitating further analysis and processing of thermal data.
The Zenmuse H20N provides accurate temperature measurements and detailed thermal analysis thanks to its compatibility with the DJI Thermal Analysis Tool, which allows importing footage and adjusting parameters such as emissivity and reflected temperature. These capabilities are especially useful during inspections, emergency response, and prolonged night monitoring, where quick and reliable information about the thermal state of objects is crucial.
Model Comparison: DJI Zenmuse H20T vs. DJI Zenmuse H20N
Below is a comparison of the main characteristics of the DJI Zenmuse H20T and DJI Zenmuse H20N models for a better understanding of their differences and applications.
| Feature | DJI Zenmuse H20T | DJI Zenmuse H20N |
|---|---|---|
| Sensor Type | Optical (zoom), wide-angle, thermal imager, LRF | Night vision, thermal imager, wide-angle, LRF |
| Optical Zoom | 23× optical, 200× digital | 20× optical, 128× digital |
| Thermal Imager | 640×512 resolution, thermal analysis | Two modes: 640×512, enhanced sensitivity |
| Night Vision Camera | Absent | Integrated, provides vision in low-light conditions |
| Max LRF Range | 1200 meters | 1200 meters |
| Target Application | Daytime observation, thermal analysis | Night operations, low-light observation |
| Features | AI functions, thermal analysis, auto-tracking | Night vision, automatic target detection in night conditions |
Key Differences:
- DJI Zenmuse H20T is more oriented towards daytime applications with detailed thermal imaging analysis and advanced AI functions for monitoring during daylight hours.
- DJI Zenmuse H20N is equipped with an integrated night vision camera and starlight sensors, enabling operations in low-light conditions — the best choice for rescue operations, night observation, and infrastructure inspections in darkness.
Purpose and Applications
The Zenmuse H20N is ideal for infrastructure inspections, rescue and search-and-rescue operations, night situation assessment, object monitoring, and other tasks where conventional cameras do not provide the necessary image quality. Its modular architecture, integration with the DJI Pilot app, and the ability to receive instant temperature alarms simplify workflow setup and enhance operational responsiveness.
Order the DJI Zenmuse H20N today to enhance the efficiency of your night-time drone operations and gain a reliable tool for professional thermal analysis.
