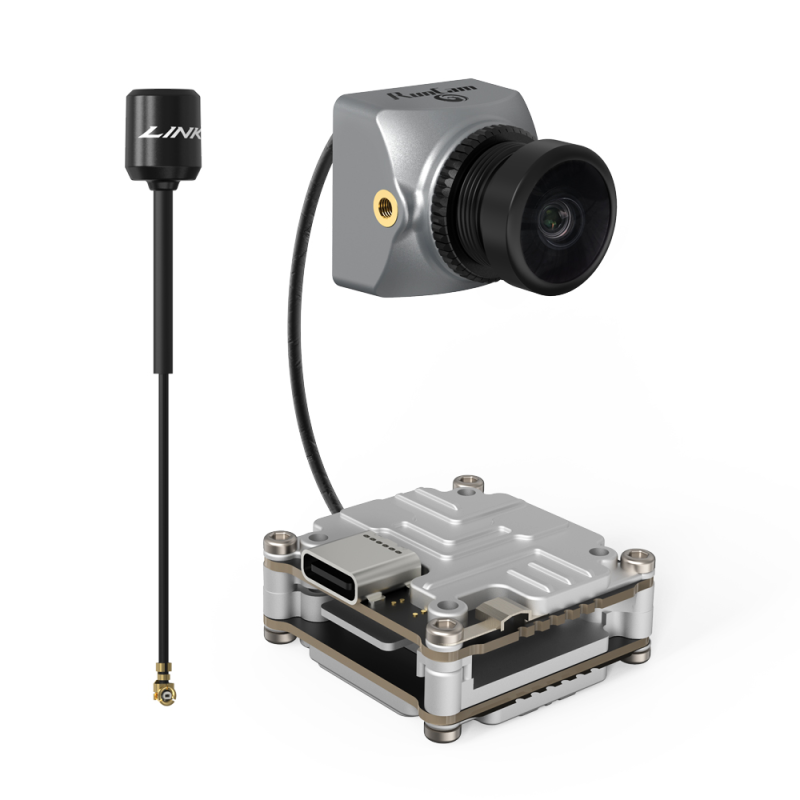

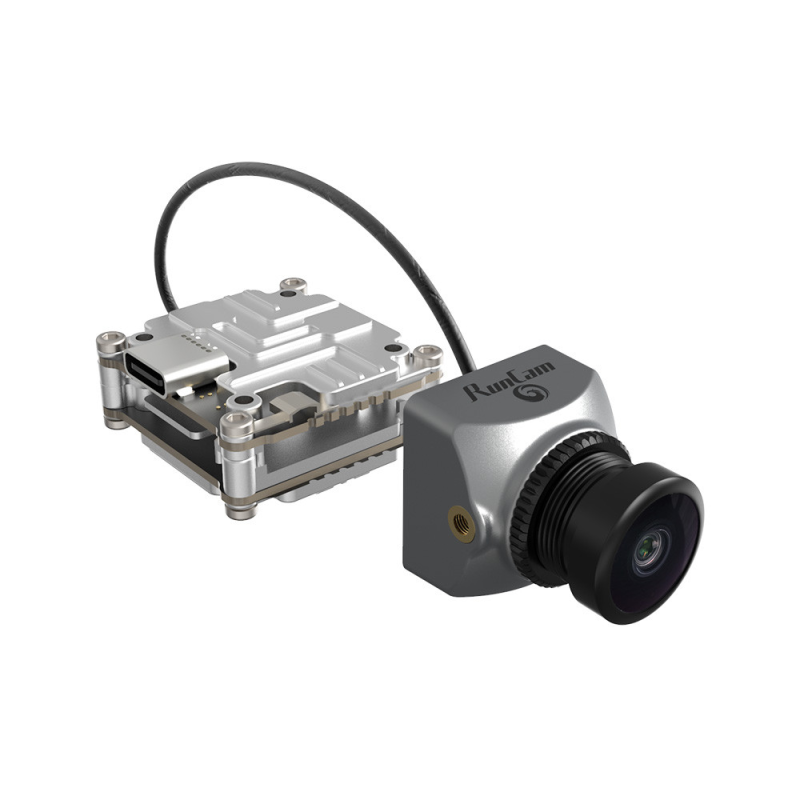

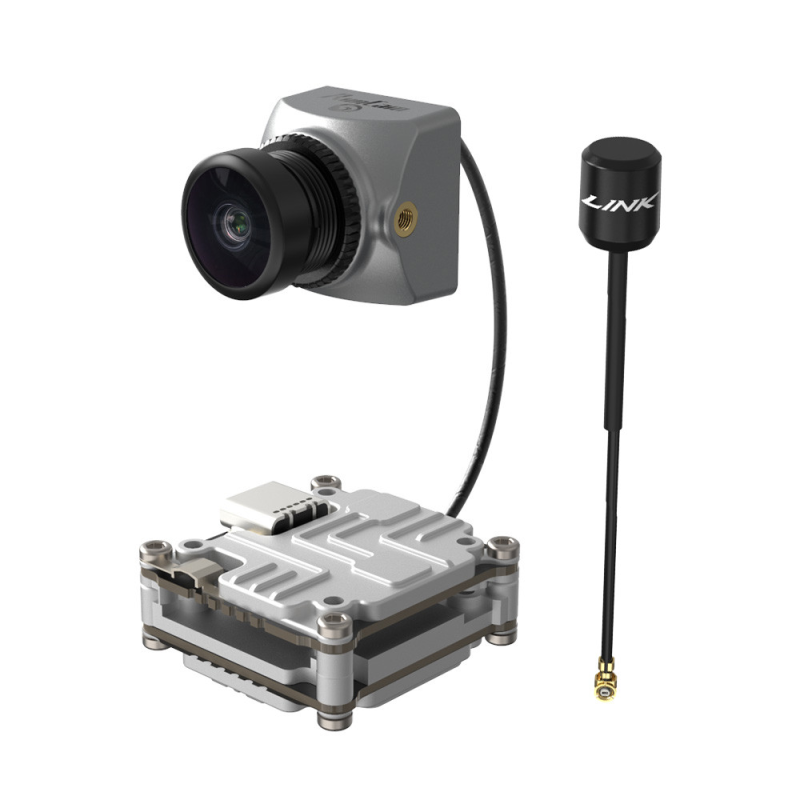

RunCam LINK Phoenix HD Kit — Compact Digital FPV Video System

RunCam LINK Phoenix HD Kit — a ready-to-use kit for racing and freestyle drone pilots who require stable digital transmission with high image quality and minimal latency. The kit includes a digital transmitter and a Phoenix HD camera, which together provide a clear picture, low ping, and ease of integration into your aircraft.

Key Transmitter Specifications

• Product Name: RunCam LINK Phoenix HD Kit
• Frequency: 5.725-5.850 GHz
• Max Distance: FCC/SRRC: less than 4 km; CE: less than 0.7 km
• Power Input: 7.4-26.4 V @ 4-9W
• Dimensions: 29×29×13 mm
• Weight: 19.5 g

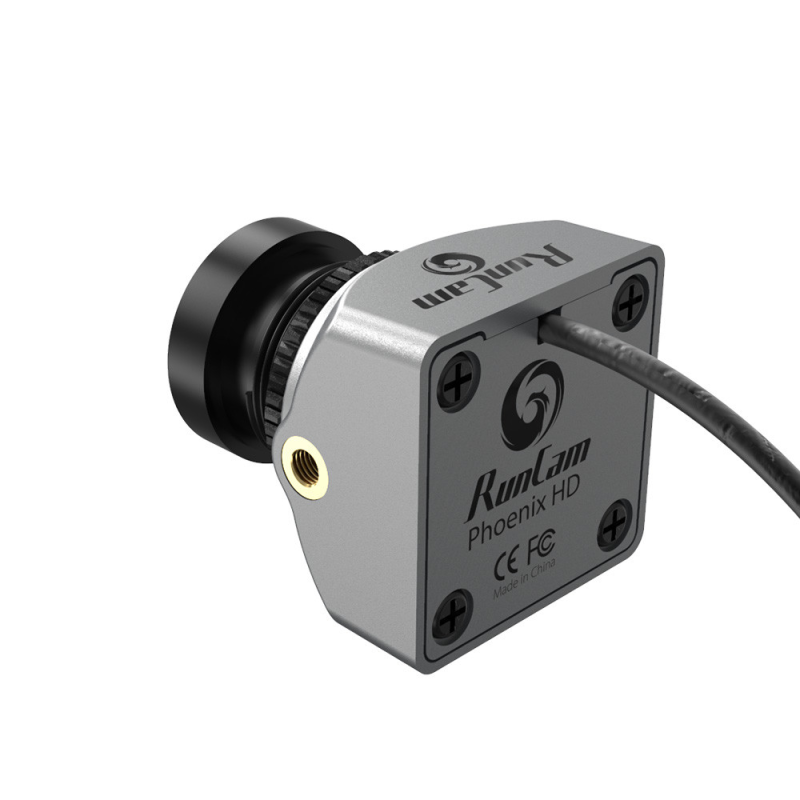

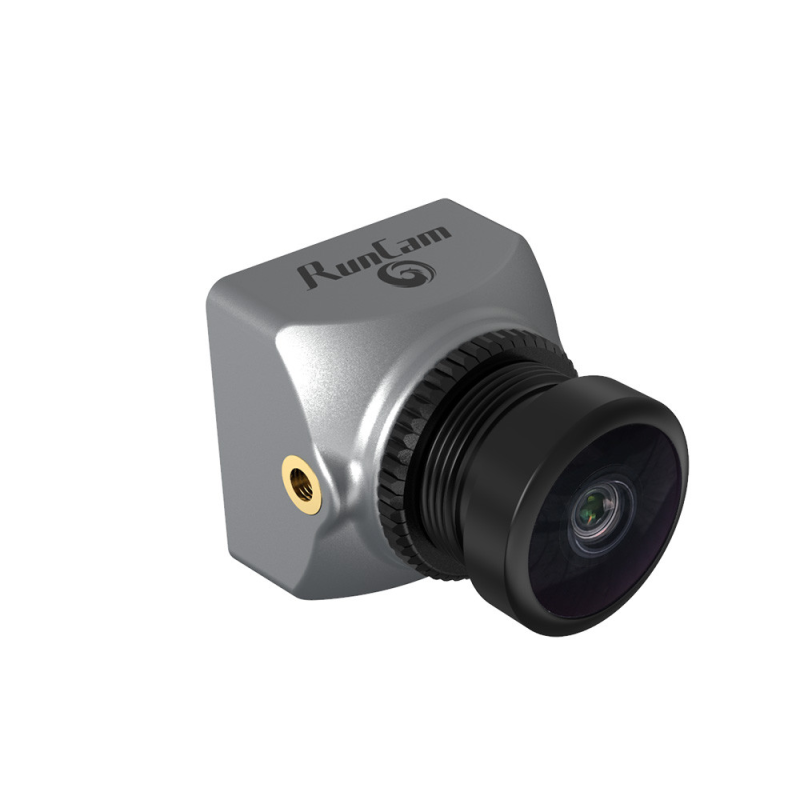

RunCam Phoenix HD Camera Specifications

• Product Name: RunCam Phoenix HD
• Image Sensor: 1/2"
• Resolution: 1280×720 @ 60fps
• Shutter: Rolling Shutter
• Lens (FOV): D: 157°; H: 133°; V: 72°
• Coaxial Cable: 120 mm
• Dimensions: L19 mm W19 mm H23.5 mm
• Weight: 7.5 g

High-Sensitivity Sensor: The Phoenix HD camera is equipped with a 1/2-inch sensor with a sensitivity of 10650 mV/Lux-sec, allowing for high-quality images even in low light or at night. Such light sensitivity ensures better detail recognition and a stable picture in varying lighting conditions.

Low Latency and Smooth Video Stream: At 1280×720 and 60 fps, the total system latency is only 32 ms, which is critical for fast maneuvers and competitions. Low latency provides the pilot with immediate visual feedback and improves drone control.

Multi-User Flight Support: The transmission system supports 8 frequency channels, allowing up to eight drones to fly simultaneously without cross-interference. This is important for training or competitions where each pilot uses their own transmission channel.

Built-in Remote Control Receiver: The transmitter has a built-in remote control receiver, allowing wireless connection of compatible remotes, including the DJI FPV Air Unit, without additional external modules. This simplifies installation, reduces overall weight, and shortens flight preparation time.

Compact and Lightweight: The transmitter, measuring 29×29×13 mm and weighing 19.5 g, along with the camera, measuring L19×W19×H23.5 mm and weighing 7.5 g, make the kit ideal for racing and mini-drones. The small size and low weight allow for optimal placement of equipment on the frame without significant changes to the weight balance.

Power and Energy Consumption: The power input range of 7.4–26.4 V and consumption of 4–9 W allow for the use of various battery configurations and adjustment of output power according to regional requirements (FCC/CE) and flight conditions.

The RunCam LINK Phoenix HD Kit — an ideal combination of digital image quality, reliable transmission, and ease of integration into existing systems. The kit combines a high-sensitivity camera and a low-latency digital transmitter with eight-channel support and a built-in remote control receiver, making it an excellent choice for ambitious pilots and teams.

Brand: RunCam.

Product Category: Drones and Quadcopters / Drone Components / Drone Spare Parts / Transmitters.
