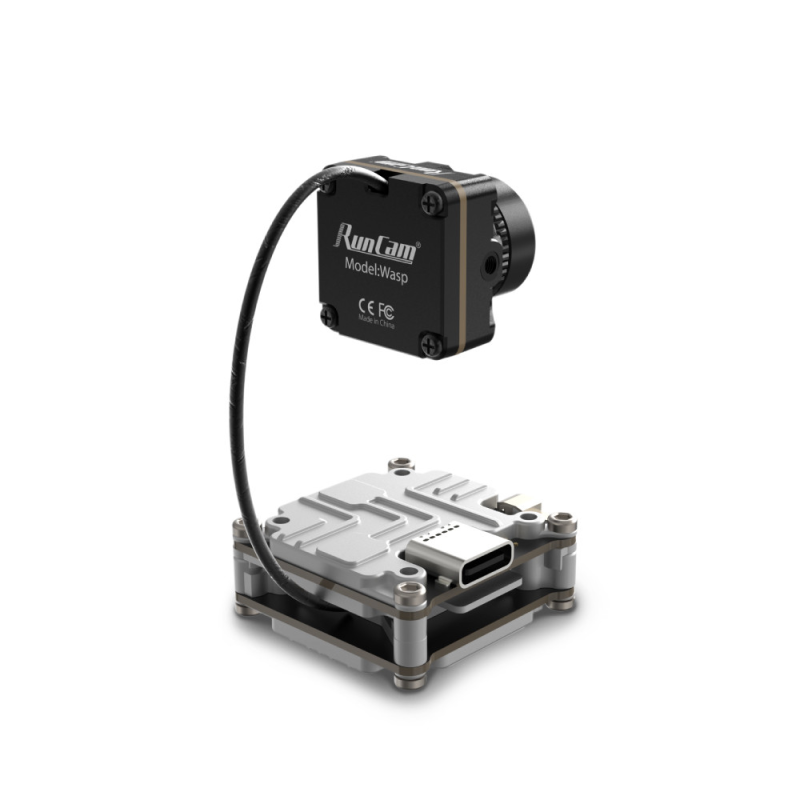

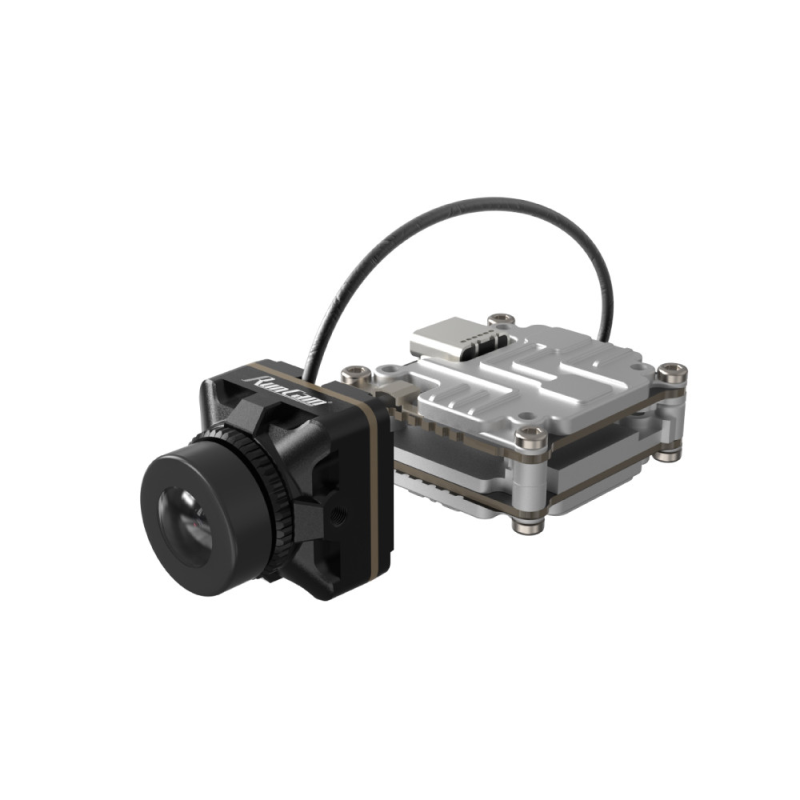

RunCam Link Wasp — Digital Video System for DJI FPV

The RunCam Link Wasp from RunCam is a ready-to-use digital FPV system kit, specifically designed for use with DJI FPV. The set combines the RunCam Link digital video transmitter and the RunCam Wasp HD camera, providing video transmission at 720P resolution at 120 frames per second. Thanks to the camera's 1/3″ sensor and a wide viewing angle of up to 155° FOV, the pilot gets a bright, high-contrast, and detailed image during flight.

Key Advantages

• Supports 120fps, 50Mbps with a 4:3 aspect ratio.
• Low-latency mode up to 28 ms for quick control response.
• Up to 8 channels for simultaneous use — Link Wasp has 8 channels, allowing up to 8 drones to fly simultaneously without cross-interference.
• Extended 155° FOV provides a wide field of view.

Technical Specifications

Wasp (Camera):

• Sensor: 1/3″
• Lens: FOV D:155° H:125° V:96°
• Coaxial Cable: 120mm
• Dimensions: 19mm x 19mm x 19mm
• Shutter: Rolling Shutter
• Weight: 7.5g (with cable)
• Resolution: 720P at 120fps (4:3)

Link (Video Transmitter):

• Frequency: 5.725-5.850 GHz
• Max Distance: FCC/SRRC:
• Power Input: 7.4-26.4 V at 4-9W
• Size: 29mm x 29mm x 13mm
• Weight: 19.5g

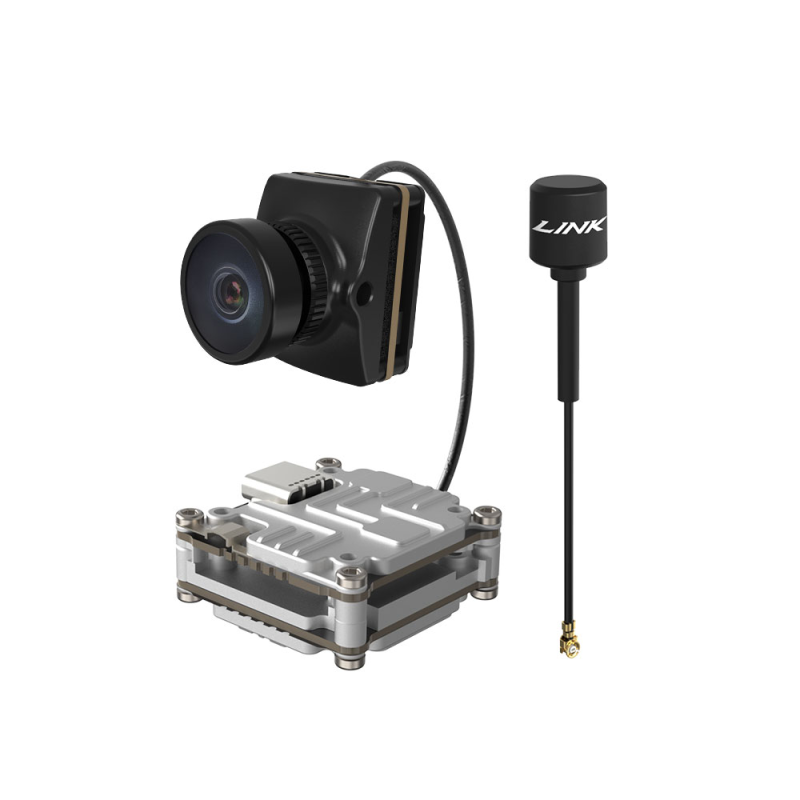

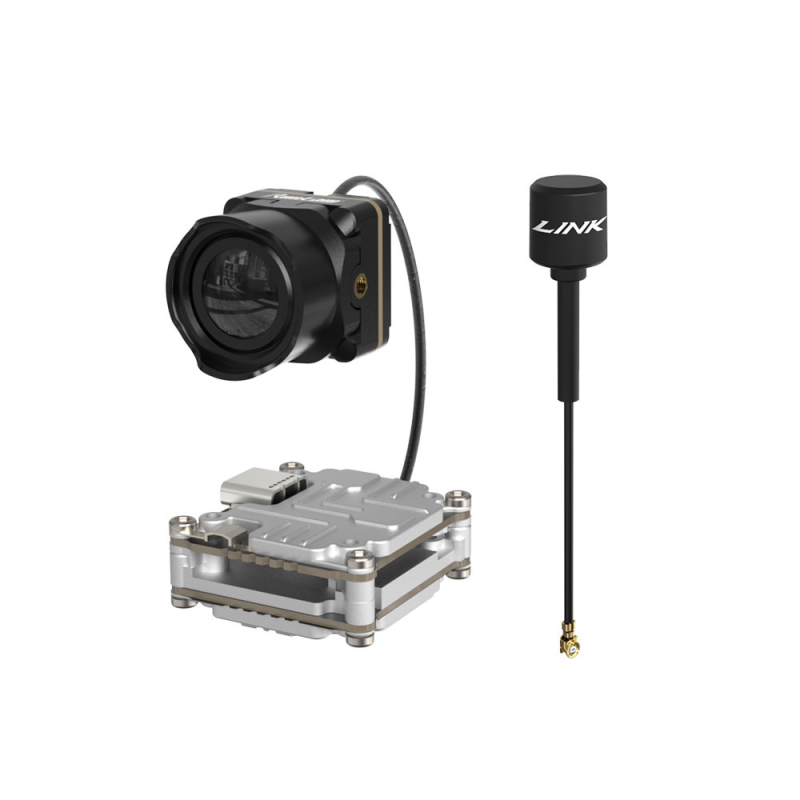

Package Contents

• 1x Wasp Camera
• 1x Link VTX (Video Transmitter)
• 1x IPEX Antenna
• 1x JST-SH 1.0 6pin Cable

This kit is ideal for pilots seeking a low-latency digital HD stream with excellent image clarity. The combination of a compact 19 x 19 mm camera with a lightweight video transmitter allows for system integration even into small chassis and racing drones, without adding significant weight to the structure. The camera's weight of 7.5g (with cable) and the transmitter's weight of 19.5g make the kit very light for mounting on sports and agile quadcopters. Support for 120fps and 50 Mbps transmission ensures a smooth, high-frame-rate image, while the minimal 28 ms latency provides an advantage for quick control response.

The 8 available channels in the Link system allow for simultaneous flights of multiple quadcopters without significant signal interference. The 5.725-5.850 GHz frequency range is compatible with modern FPV receivers, and the ability to power from 7.4 to 26.4 V makes the system flexible for connection to various battery configurations. The compact dimensions of the camera and transmitter (camera: 19mm x 19mm x 19mm; transmitter: 29mm x 29mm x 13mm) allow them to be installed even in limited chassis space.

Product Category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters.

Choose RunCam Link Wasp for high-quality video and reliable drone performance — it's a ready-made solution for those who value high frame rates, a wide viewing angle, and minimal transmission latency.
