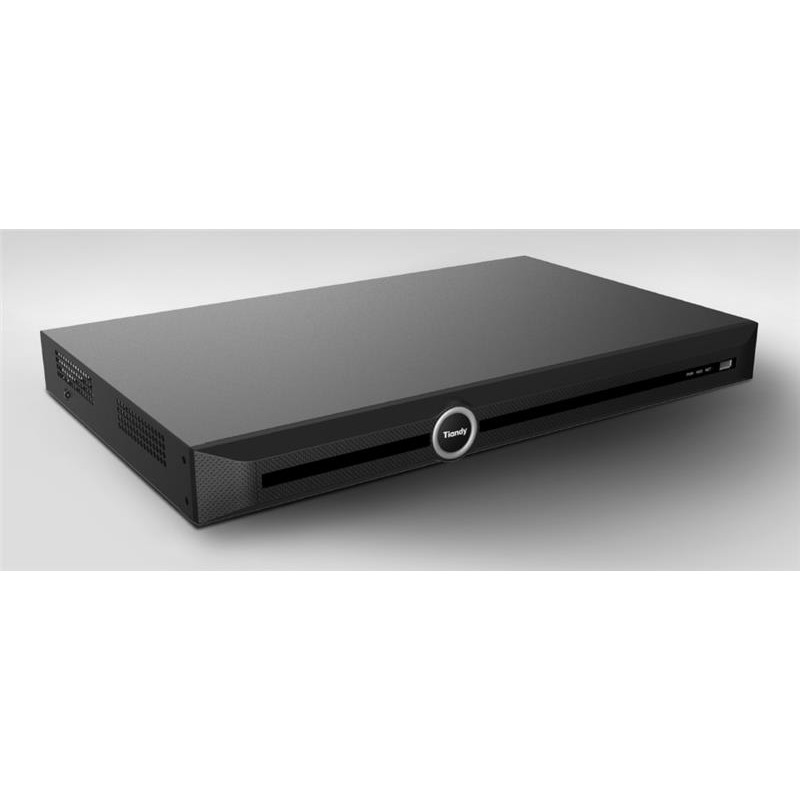

Tiandy TC-R3220 Spec:I/B/K/V3.1

H.265 2HDD 20-Channel Lite Series NVR

• Supported camera resolution: up to 8MP
• Input/Output bandwidth: 160 Mbps / 64 Mbps
• 2×USB2.0
• 1×HDMI 1×VGA
• 1×RJ-45, 10/100 Mbps self-adaptive network
• 2×SATA interfaces up to 10 TB per HDD
• Operating conditions -10º~55º
• DC12V 3.3A

HD Input

• Video formats S+265/H.265/ S+264/H.264
• Ability to connect third-party ONIF, RTSP network cameras
• Supports real-time viewing, storage, and playback of connected cameras with up to 8 MP resolution
• 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×20

HD Output

• 1×HDMI and 1×VGA simultaneous outputs
• 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16

Various Applications

• Centralized management of IP cameras, including setup, import/export of real-time information display, updates
• Supports camera analytics: line crossing; double crossing; perimeter; object abandonment; object missing; loitering; running; parking; heat map; abnormal video; abnormal audio; queue detection; crowd detection; safety helmet detection; people counting; tracking link for PTZ cameras; smoke and fire detection; ambient temperature measurement; face recognition; human body temperature measurement; smart motion; human/vehicle classification.
• Intelligent archive search: heat map; early warning search; behavior search; thermographic search; queue search; face search.
• Face search attributes: gender; age
• Web6 supports plugin-free viewing and can view video in all browsers
• Supports cloud update
