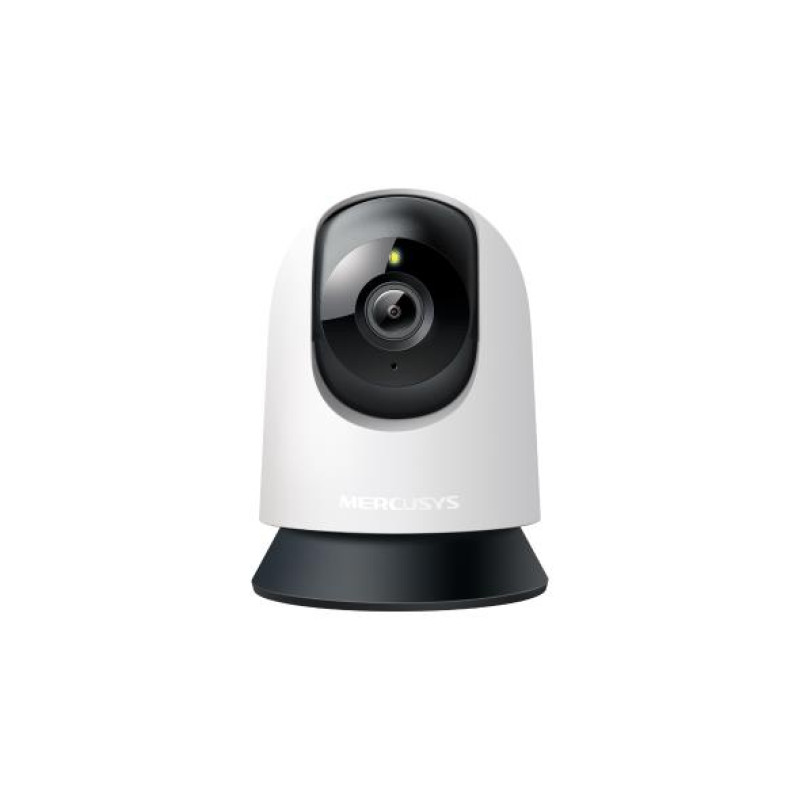

Home Wi-Fi Pan/Tilt Security Camera

• High-Definition Video - Records crystal-clear 1080p high-definition video, ensuring users get sharp and detailed footage.
• Pan and Tilt - Provides a 360° horizontal view, ensuring complete area coverage.
• Smart Detection - Intelligently tracks motion 24/7, ensuring objects stay in view even in complete darkness with night vision. Get instant notifications for detected motion, people, or baby cries.
• Night Vision - With enhanced night vision up to 12 meters, the MC200 allows users to monitor their homes around the clock.
• Two-Way Audio - Listen and respond in real-time via the built-in microphone and speaker. Communicate with family and pets anytime.
• Free Local Storage - Supports microSD cards up to 512 GB for local storage, providing a secure and cost-effective way to store video footage.
• Cloud Storage Supported - Store videos using MERCUSYS cloud storage services.
• Customizable Block Zone - Customize your privacy zone to easily block unwanted views.
• Voice Control - Compatible with Google Assistant and Amazon Alexa, enabling hands-free control.

Image Sensor

1/3.2” Progressive Scan CMOS Sensor, not Starlight Sensor

Lens

Focal Length: 4mm,
Aperture: F2.0,
Field of View: 87° (Diagonal), 74° (Horizontal), 40° (Vertical)

Motion Range

Mechanical Pan Range: 340° (360° Pan Coverage),
Mechanical Tilt Range: 70° (110° Tilt Coverage)

Night Vision

850 nm IR LED (12 m)

Interface & Button

1× Reset Button
1× MicroSD Card Slot (up to 512 GB)

Camera

Maximum Resolution

1920 × 1080 Pixels

Digital Zoom

Supports 10.8x Zoom

Frame Rate

15/20/25/30 fps (15 fps default)

Video Compression

H.264

Live View

Yes

Image Enhancement

/

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio

Siren Volume

88 dB (level measured at 10 cm)

Video & Audio

Security

128-bit AES Encryption with SSL/TLS

SOFTWARE

Local Storage

Micro SD Card Slot
(Support up to 512 GB)

Cloud Storage

MERCUSYS Camera Care Cloud Storage (Subscription required)

Storage

Network Connectivity

Wi-Fi Connection

Wireless Connectivity

11 Mbps (802.11b)
54 Mbps (802.11g)
72.2 Mbps (802.11n)

Max. Distance Between Hub and Camera/Doorbell

/

RTSP

Yes

ONVIF

Yes

Network

Power Source

9V DC Power Adapter

Input Voltage

100-240V AC, 50/60 Hz, 0.3 A

Output Voltage

9.0 V/0.6 A

Power

Sensor

/

AI Detection

Motion Detection
Person Detection
Baby Cry Detection

Activity Zones

Yes
*Only works with motion detection.

Output Notification

System Notification

Detection & Notifications

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

/

Mounting Options

Tabletop and Ceiling Mount

Operating Temperature

0 ºC ~ 40 ºC (32°F ~ 104°F)

Storage Temperature

-40°C~60°C (-40°F~140°F)

Operating Humidity

10%~90% RH, non-condensing

Storage Humidity

0%~90% RH, non-condensing

Charging Temperature

/

Dimensions ( W x D x H )

78.4 × 78.4 × 105.6 mm

General

Certifications

CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

Package Contents

Pan/Tilt Home Wi-Fi Camera (MC200) × 1
Power Adapter × 1
Mounting Anchors × 2
Mounting Screws × 2
Mounting Template Sticker × 1
Quick Start Guide
