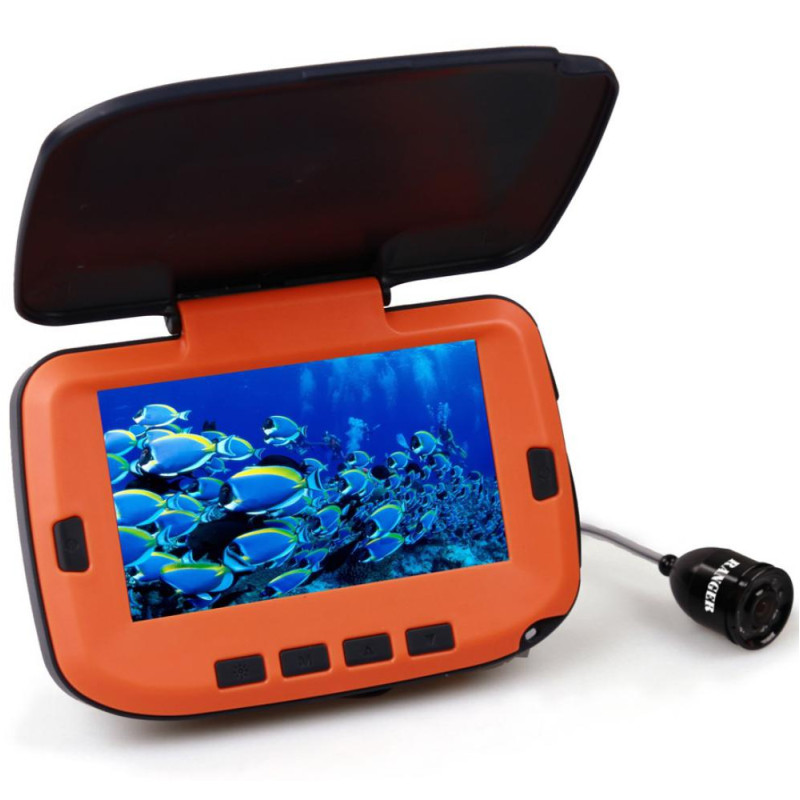

Underwater Camera Ranger Lux 20 record (Art. RA 8860)

Underwater Video Camera Ranger Lux 20 record (Art. RA 8860) from the Ranger brand is a reliable and easy-to-use underwater surveillance system designed for fishing, surveying bodies of water, locks, and inspecting engineering structures. The Ranger Lux 20 record model combines the advanced features of previous versions and comes with an 8-gigabyte memory card for recording videos and photos, allowing you to review material at home or publish it online.

Key Advantages

The camera withstands operation in salty and oily water, works in temperatures ranging from -20 to +60 °C, and is easily charged from a standard USB charger or Power Bank. One of its main features is adjustable infrared illumination with the option for complete shutdown, which reduces glare underwater and improves image quality in clear water. This makes the device ideal for summer fishing and for working in low-light conditions.

Technical Specifications

• Color display: 4.3 inches with 480x272 resolution
• Operating time: up to 7 hours; 2600 mAh battery
• Power supply: charged via USB or Power Bank
• Infrared illumination: 8 infrared diodes with adjustable and shutdown capability
• Memory card: 8 GB included
• Visibility in clear water: up to 7 meters
• Viewing angle: 120 degrees
• Sensor: CMOS, provides HD image with up to 1000 TVL resolution
• Cord length and strength: 15 meters, withstands loads up to 15 kg
• Housing: durable aluminum alloy with anti-corrosion and heat-resistant coating
• Additional protection: display cover protects against sunlight and glare; the cover can be removed if needed
• Design convenience: a reel with the camera is attached to the rear cover of the display to prevent loss and for convenient storage

Functional Capabilities and Applications

The underwater camera is an excellent alternative to a fishfinder: it displays the underwater landscape in real time, allows studying fish behavior, and checking the bottom. In addition to underwater use, the device is effective for inspecting pipes, chimneys, and other low-light spaces. It is widely used in water management and for technical monitoring of facilities.

Package Contents

• monitor
• video camera
• power adapter
• rod mount
• float
• 8 GB memory card
• carrying bag with shoulder strap

The camera is very easy to operate: no lengthy setup is required — default parameters are set for optimal performance. Brightness, contrast, and full color disablement can be adjusted in the settings for better visibility in various conditions.

Warranty period: 6 months.

Additional materials: Ranger Lux 20 record video camera review
