COOAI DVR-PCB Video Recorder (5-30 V, PAL/NTSC/AHD720P)

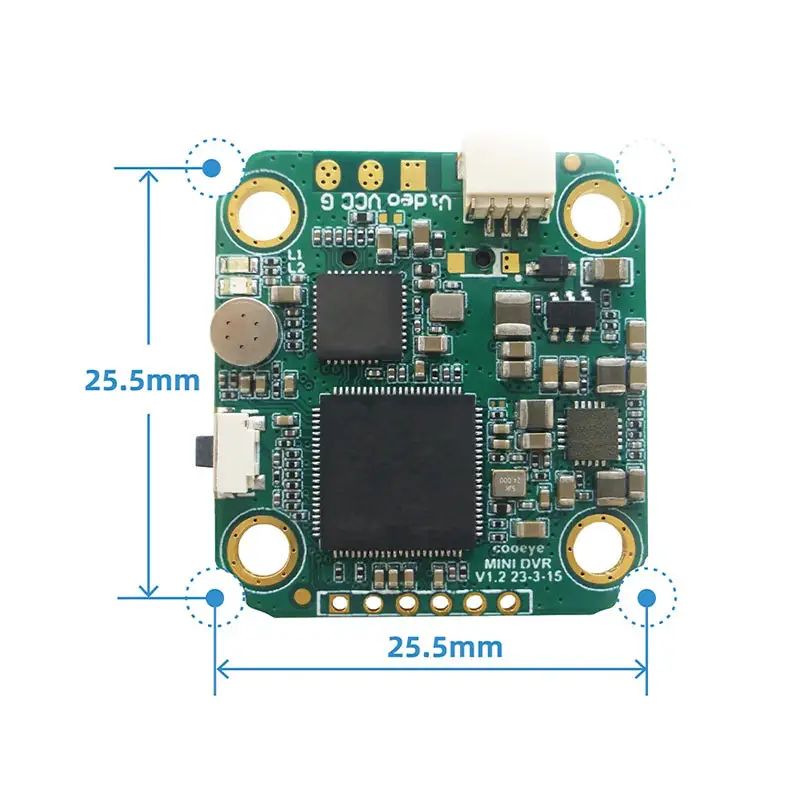

The COOAI DVR-PCB video recorder is an ultralight and compact module for FPV recording, created by the COOAI brand specifically for drones, quadcopters, and RC aircraft. The device features minimal dimensions of 26 x 28 x 6 mm and a weight of approximately 4 g, allowing for effortless integration into the aircraft body or other compact equipment.
The recorder supports PAL, NTSC, and AHD720P video standards with automatic format detection for the connected camera. The recording format is AVI. The built-in microphone allows for simultaneous audio and video recording (there is no separate audio input). The device provides both continuous recording and cyclic mode with file intervals of 5-30 minutes, as well as a "watermark" function for marking video footage.
Power is supplied within a wide range of 5-30 V with recommended values of 5 V or 9 V; current consumption is up to 230 mA at 5 V. The module features an auto-start function upon power-up and LED status indicators for ease of use. Support for Micro SD memory cards up to 512 GB allows for archiving large volumes of video recordings.
Areas of Application
The COOAI DVR-PCB is ideal for RC aircraft modeling, installation in miniature aircraft bodies, FPV systems, and other projects where weight, size, and ease of integration are crucial. Compatibility with CVBS and AHD camera types expands application possibilities with various video modules.
Advantages
- Ultralight and compact body: 26 x 28 x 6 mm, weight ~4 g.
- Support for multiple video signal standards (PAL/NTSC/AHD720P) with automatic camera format detection.
- Built-in microphone for audio recording without additional inputs.
- AVI recording format and Micro SD support up to 512 GB.
- Auto-start function, LED indicators, and 5-30 min cyclic recording mode.
| Specifications | Value/Description |
|---|---|
| Supply Voltage | 5-30 V |
| Video Signal Standards | PAL, NTSC, AHD720P |
| Resolution | PAL: 960x768/ up to 50 FPS |
| NTSC: 960x640/ up to 60 FPS | |
| AHD720P: 1280x720/ 25/30/60 FPS | |
| Built-in Microphone | Yes |
| Camera Support | CVBS, AHD |
| Video Format | AVI |

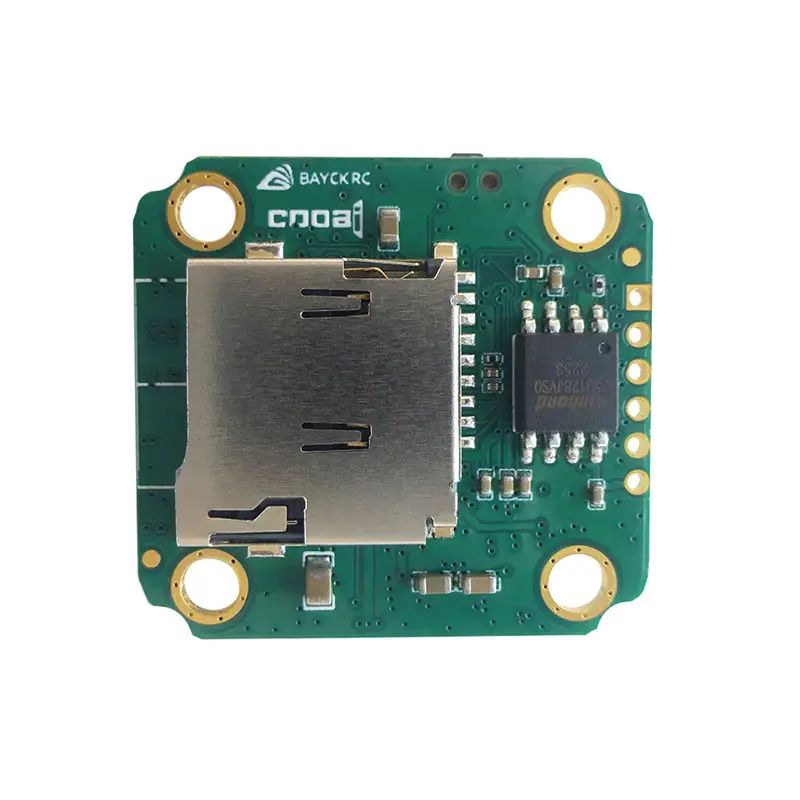

| Memory | Micro SD, up to 512 GB |
| Weight | Approximately 4 g |

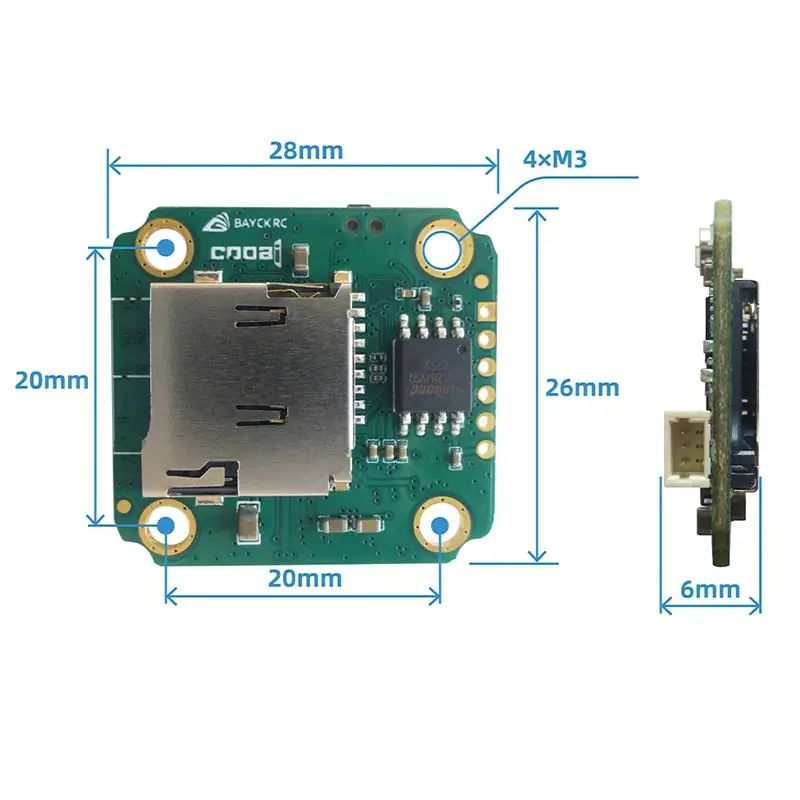

| Dimensions | 26 x 28 x 6 mm |
| "Watermark" Function | Yes |
| Current Consumption | Up to 230 mA at 5 V |
| Recommended Power | 5 V or 9 V |
| Recording Mode | Continuous or 5-30 min |
| Audio Input Type | Built-in microphone |
| Auto-start Mode | Yes |
| Maximum Memory Card Capacity | Up to 512 GB |
| Supported Recording Formats | CVBS, AHD720P |
| Supported Video Signal Standards | PAL, NTSC, AHD720P |
| Compatibility | RC aircraft, quadcopters, drones |
| Operating Temperature | From -10°C to +60°C |
Package Contents:
FPV video recorder – 1 pc.

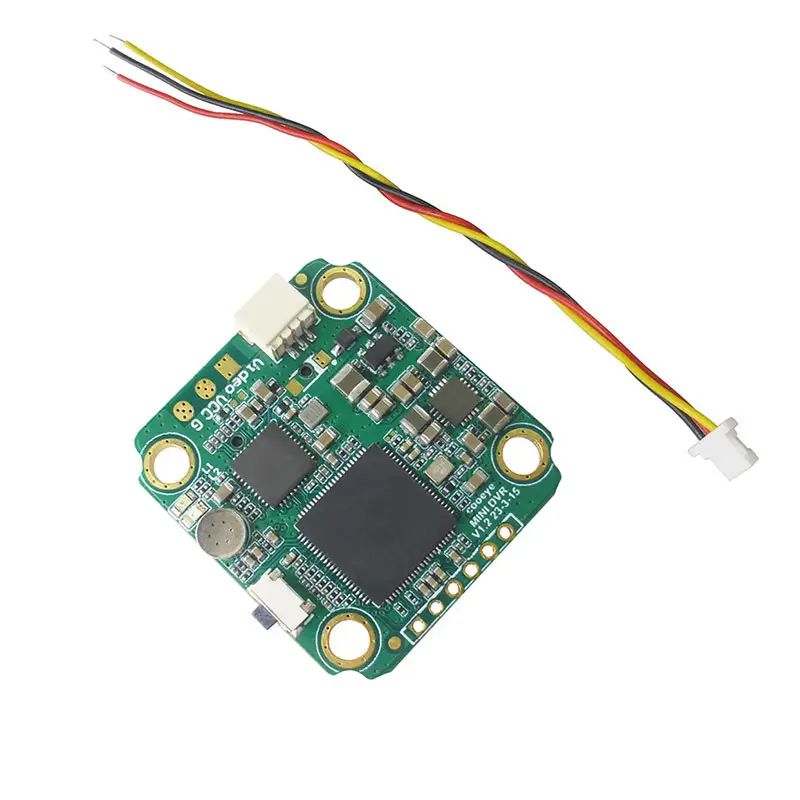

3-pin cable – 1 pc.
User manual – 1 pc.
The COOAI DVR-PCB is an optimal choice for users who need an inexpensive, reliable, and extremely lightweight recorder for integration into FPV systems and RC aircraft. The combination of CVBS/AHD support, automatic standard detection, audio recording capability, and archiving to large Micro SD cards makes this module a practical addition to your equipment. The device is suitable for applications in a temperature range from -10°C to +60°C and ensures ease of use thanks to auto-start and status indicators.
