Video Transmitter VTX 9CH 1.2-1.3GHz 1W6 — a high-performance module for FPV flights, combining a wide range of settings, compact dimensions, and reliability. Manufacturer: China. This transmitter is ideal for amateur and professional drone configurations due to its versatile design: dimensions of 36×22×7 mm and a weight of only 10 g allow for easy integration into small and medium frames without additional load on the platform. Support for CVBS PAL/NTSC video formats ensures compatibility with most cameras and FPV receivers on the market.

Specifications

• Frequency range: 1.2-1.3 GHz


• Transmission power: adjustable from 14 dB (25 mW) to 32 dB (1600 mW)


• Number of channels: 9

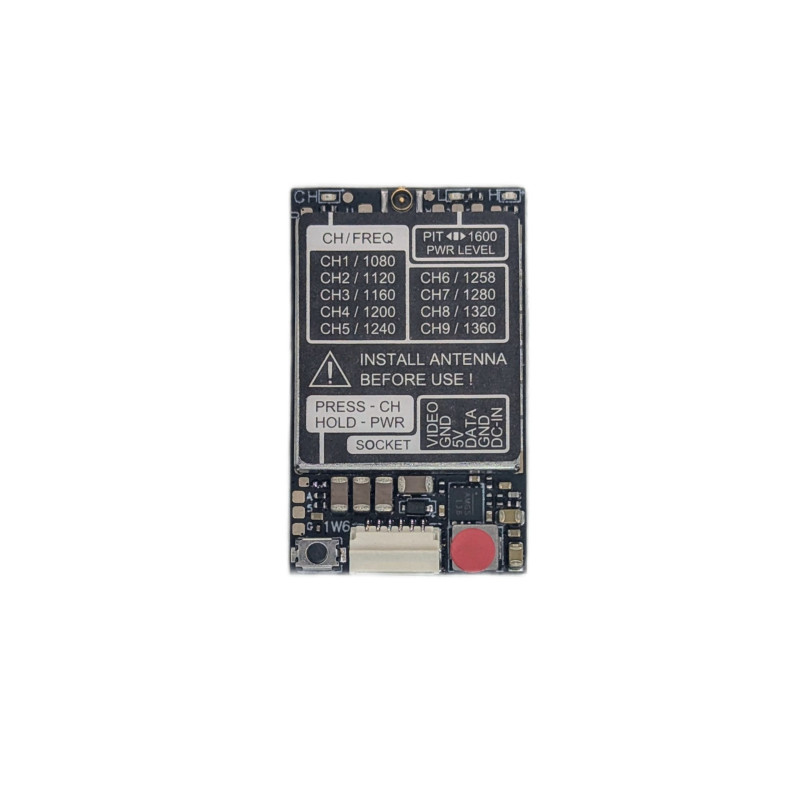

• Channel list (frequencies):
  • CH1 - 1080
  • CH2 - 1120
  • CH3 - 1160
  • CH4 - 1200
  • CH5 - 1240
  • CH6 - 1258
  • CH7 - 1280
  • CH8 - 1320
  • CH9 - 1360


• Input voltage: DC 7-36 V (supports 13-65 Lipol batteries)


• Power consumption: 400 mA (220 mA at 12 V)


• Operating temperature: from -10 °C to +60 °C


• Video input format: CVBS PAL/NTSC


• Dimensions: 36×22×7 mm


• Weight: 10 g

Advantages and Features

• Stable signal over long distances: operation in the 1.2-1.3 GHz range reduces the likelihood of interference and ensures clear image transmission during long-range flights.


• Flexible power adjustment: a wide range of output power allows selecting the optimal mode for indoor or outdoor flights.


• Compactness and ease of installation: small size and low weight simplify mounting in most drone frames and designs.

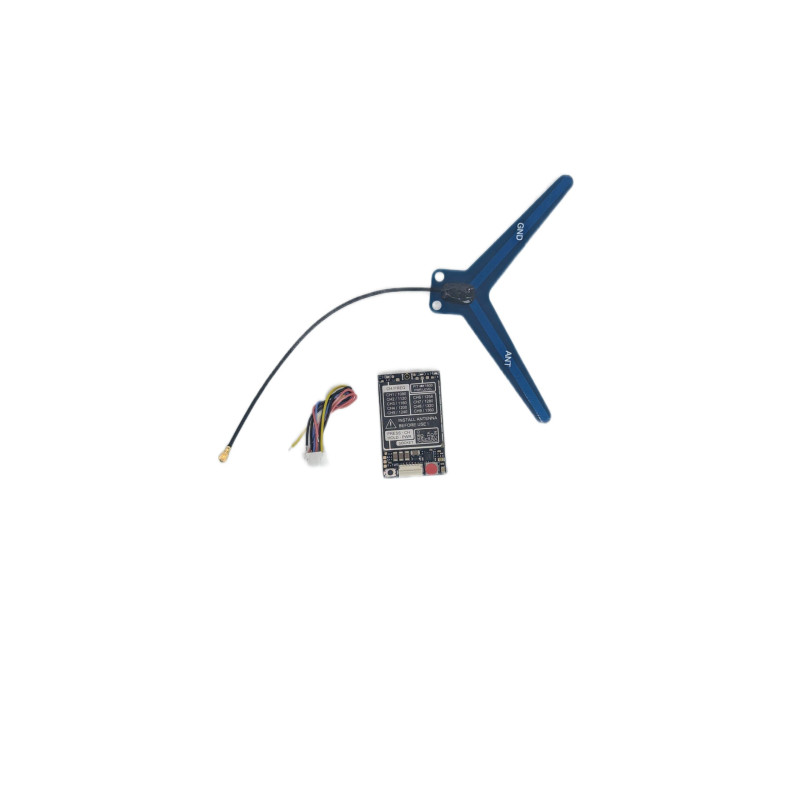

• Compatibility with various antennas: supports directional "patch" and helical antennas for maximum range and signal quality.


• Universal power supply: support for a wide voltage range from 7 to 36 V makes the transmitter compatible with various drone power configurations.

Additional information: item SKU/ID 10911. The classic set of settings and technical parameters makes the VTX 9CH 1.2-1.3GHz 1W6 an excellent choice for FPV enthusiasts and professional pilots who require reliable video transmission over medium and long distances. Category: Drones & Quadcopters > Transmitters. The product is manufactured in China, compatible with most CVBS cameras, supports 9 channels, and a wide power range for versatile application.
