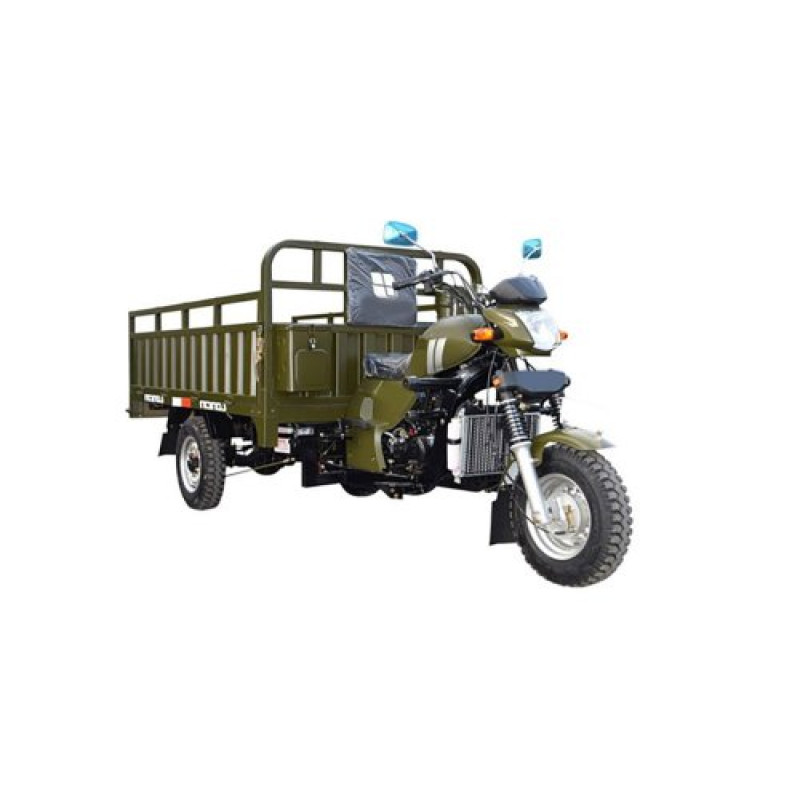

Cargo Motorcycle Loncin LX250ZH-11

Introducing the Loncin LX250ZH-11 cargo motorcycle from the LONCIN brand — a practical and reliable solution for transporting goods in challenging conditions. This model is designed as a single-seater work vehicle (1 seat) with a robust frame structure and reinforced components for daily operation on farms, construction sites, in utilities, and small businesses. The Loncin LX250ZH-11 combines economical fuel consumption, convenient loading thanks to its tilting bed and drop sides, and a durable cardan shaft drive that reduces the need for frequent maintenance.

Key Specifications at a Glance

• Engine Type: 1-cylinder, 4-stroke, gasoline;
• Engine Displacement: 250 cm3;
• Power: 15.4 hp;
• Gearbox Type: mechanical with reverse, 5+1 transmission;
• Fuel Injection System: carburetor;
• Cooling System: liquid;
• Engine Start: kickstarter / electric starter;
• Maximum Speed: 65 km/h;
• Fuel Consumption: 3.5 l/100 km;
• Load Capacity: 1000 kg;
• Weight: 430 kg;
• Fuel Tank Capacity: 16 l;
• Battery Capacity: 18 Ah;
• Rear Wheel Drive: cardan shaft;
• Motorcycle Type: dump truck;
• Body Dimensions (LxWxH): 2200x1300x400 mm;
• Overall Dimensions (LxWxH): 3450x1450x1450 mm;
• Wheelbase: 2350 mm;
• Tire Size (front/rear): 4.5-12;
• Front Suspension: reinforced telescopic fork;
• Rear Suspension: leaf spring with shock absorber;
• Brakes: drum brakes front and rear;
• Body Functions: tilting and drop sides (rear/left/right).

The Loncin LX250ZH-11 chassis is designed for heavy loads: a reinforced front telescopic fork and a rear leaf spring with a shock absorber ensure stability on uneven roads and long-term operation. Drum brakes on both axles guarantee reliable braking when fully loaded. Front and rear tires of size 4.5-12 provide good traction and stability during maneuvering.

The cardan shaft drive to the rear wheel reduces the need for frequent servicing compared to chain drives and increases transmission reliability. An 18 Ah battery ensures stable operation of the electric starter and electrical equipment, simplifying engine start-up and operation in various weather conditions. The combination of a kickstarter and an electric starter provides additional confidence in starting the engine in any conditions.

Operational parameters make the LX250ZH-11 economically viable: fuel consumption of 3.5 l/100 km with a 16 l tank capacity allows for work tasks to be completed without frequent refueling. A maximum speed of 65 km/h and a 5+1 transmission with reverse make driving convenient both on the road and when maneuvering on site.

The body dimensions — 2200x1300x400 mm — allow for transporting large volumes of goods, while the overall vehicle dimensions of 3450x1450x1450 mm and a wheelbase of 2350 mm provide an optimal balance between maneuverability and a load capacity of 1000 kg. The motorcycle's weight is 430 kg, which was taken into account during the design of the suspensions and body.

Key technical specifications are in the table below:

The Loncin LX250ZH-11 is a practical, economical, and durable cargo motorcycle with good load capacity, a well-designed body, and reliable components for daily intensive use.
