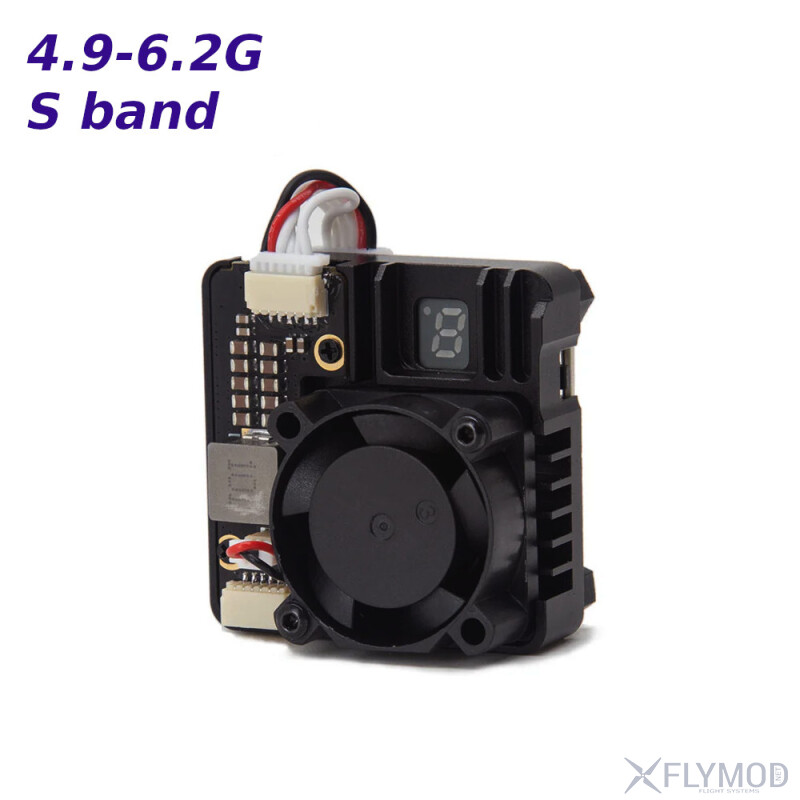

The SKYZONE TX2501 Video Transmitter ensures stable transmission on 64 channels in the frequency range from 4990GHz to 6184GHz. The CNC machined metal casing and built-in fan help prevent overheating. Transmission power is adjustable from 25 to 2500mW, and can reach 3000-3500mW, allowing flexible selection of the signal level. The video transmitter supports X Band (5GHz), Low Band and S band, which allows for an extended frequency range for signal transmission. The operating voltage range from 9V to 26V ensures stable operation even under varying conditions. Convenient control via button or IRC, as well as an LED display, help quickly change settings and monitor the transmitter's status.

Features

• Supports X Band (5GHz), Low Band and S band
• CNC casing and fan for heat dissipation
• Adjustable output power 25/800/1600/2500mW, and can reach 3000-3500mW
• Wide input voltage range 9-26V
• LED segment display, easy to check VTX status
• Button/IRC control, quick channel and power change
• Allows individual 1MHz frequency use at 4990-6184GHz

Specifications

• Operating voltage: 9-26V
• Frequency range: 4990-6184GHz
• Power: 25/800/1600/2500mW, max 3000-3500mW
• Protocol: IRC/Button control, LED display
• Antenna connector: MMCX
• Mounting pattern: 30.5*30.5*M3
• Size: 38.8x38.6x22.5mm
• Weight: 27.5g

Package Contents

• 1 x SKYZONE TX2501 CNC 4.9-6.2G 2.5W 64-channel L/X/S band VTX video transmitter
• 1 x cable
• 1 x MMCX/SMA cable
• 1 x screw set
