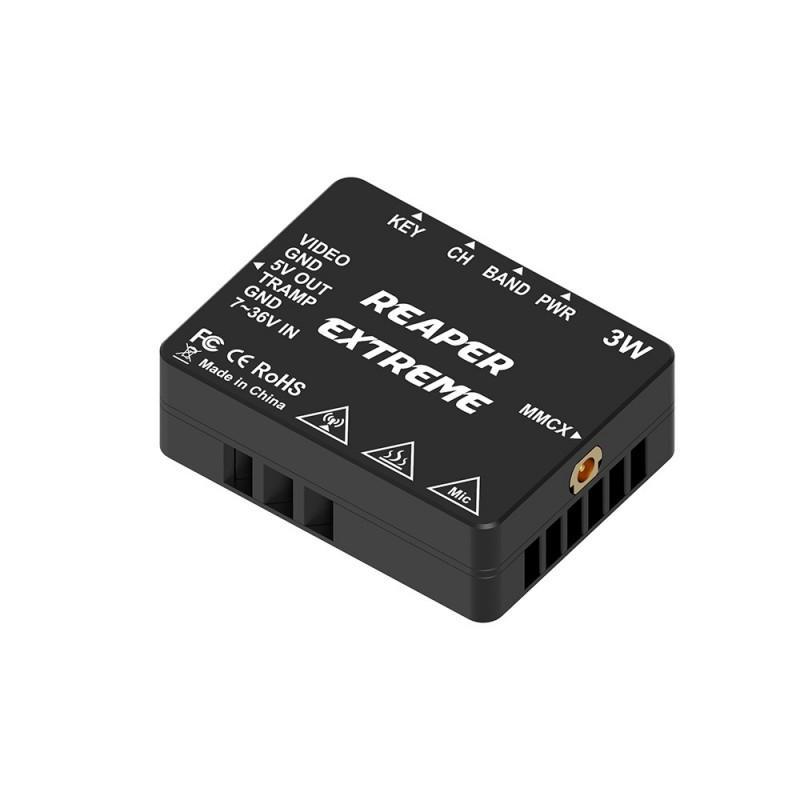

Foxeer Reaper Extreme 3W V2 Video Transmitter
Foxeer 4.9~6G Reaper Extreme 3W 80CH VTx Video Transmitter — a high-performance analog VTx from Foxeer, designed for long-range FPV flights and environments with intense radio interference. This module combines a maximum output power of up to 3W and support for 80 channels across 10 bands, ensuring flexible configuration and stable video signal transmission.
Key Features
- Model: Foxeer Reaper Extreme 3W V2
- Frequency Range: 4.9~6G (80 channels, 10 bands)
- Output Power: up to 3W, modes 25mW / 200mW / 500mW / 1500mW / 3000mW
- Power Supply: 9–36V (supports 3S–8S LiPo batteries)
- Current Consumption: approximately 1.4A at 10V
- Camera Output Voltage: 5V

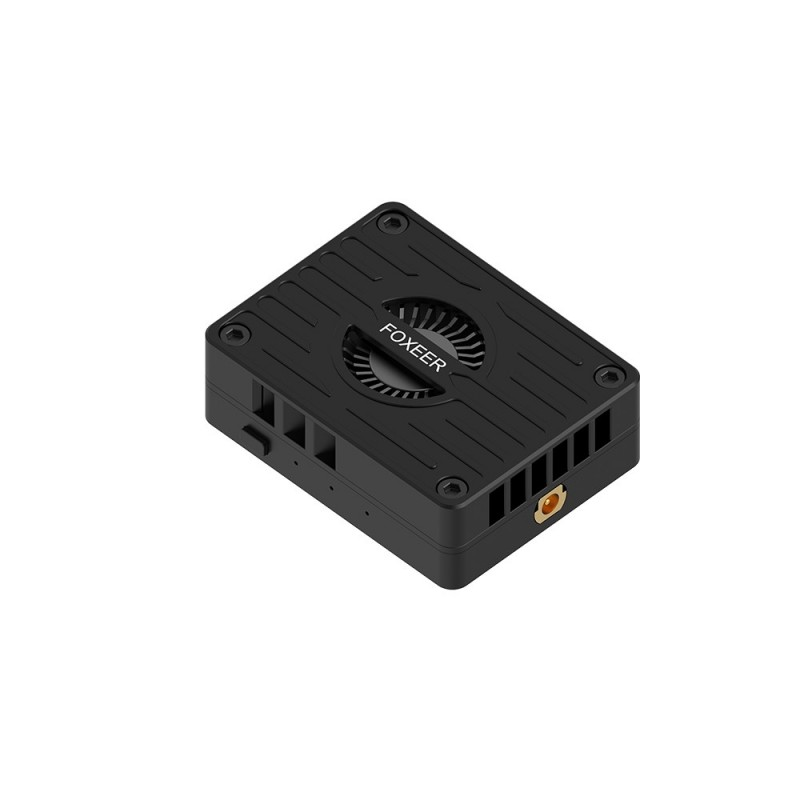

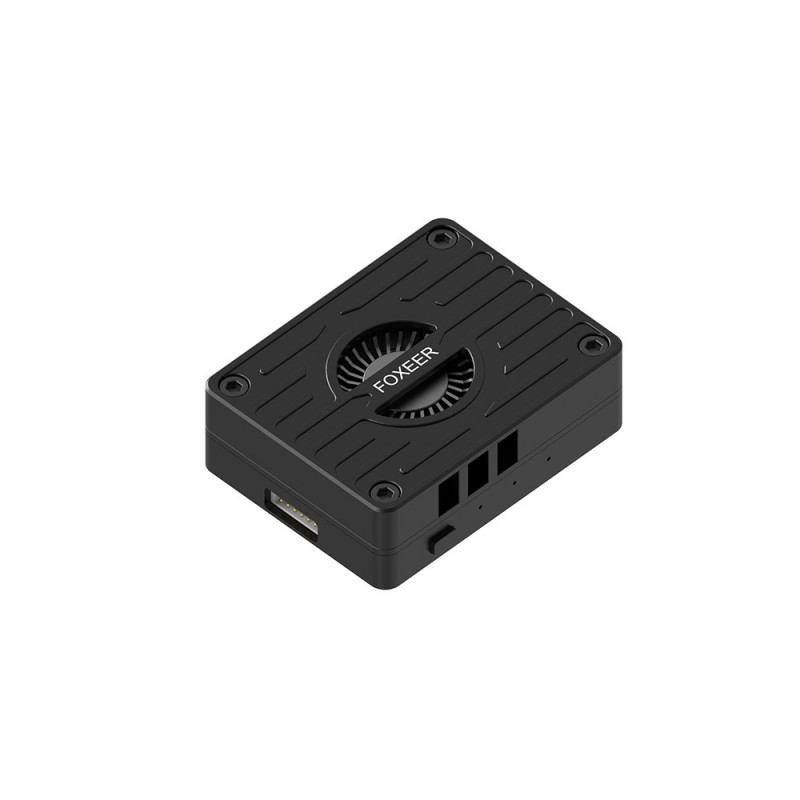

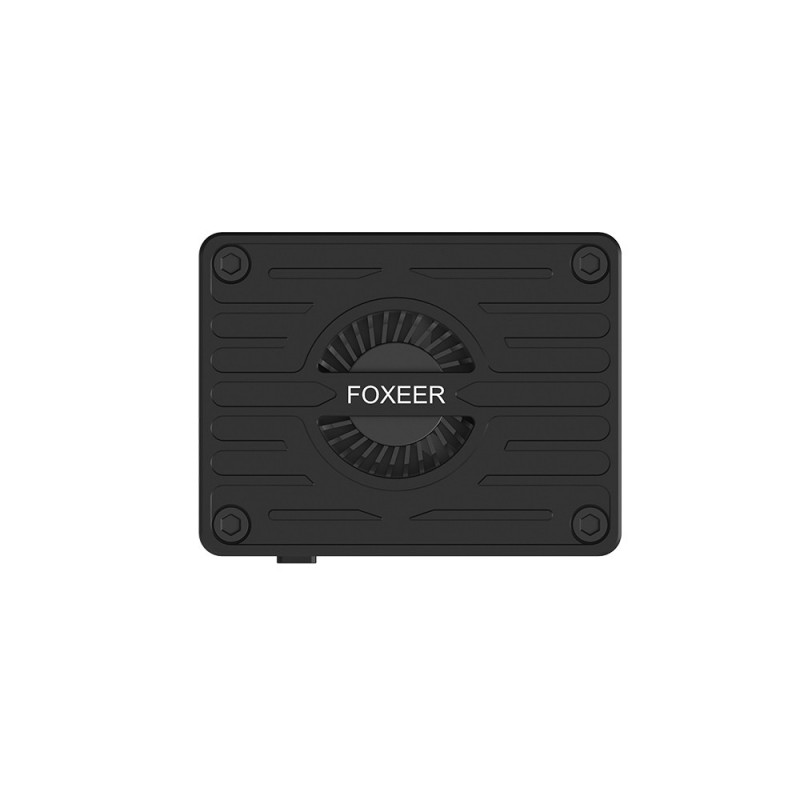

- Cooling: active, with built-in fan
- PIT Mode: supported (activated by double-pressing the button)

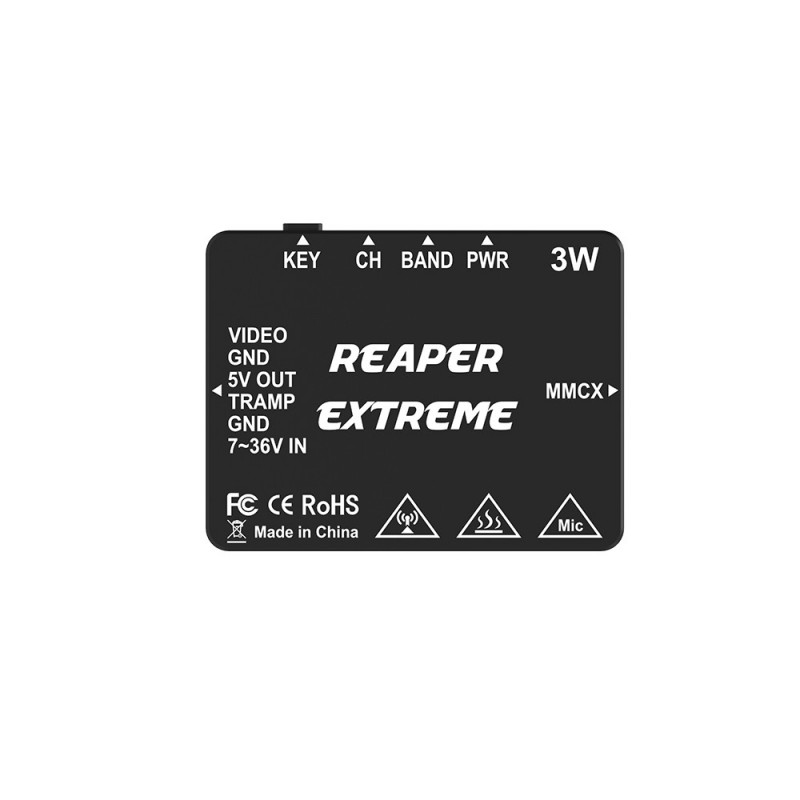

- Control: button on the housing or via Tramp protocol (configured from ground controller)
Control Details and Compatibility
The transmitter has 5 power levels, allowing you to select the optimal mode for various tasks — from testing and training flights to long-range missions and competitions. PIT mode reduces power to a minimum for safe on-site testing. If Tramp protocol control is used, the physical button is deactivated, and all settings are made from the ground controller (e.g., via Betaflight). Note: Betaflight supports only up to 64 channels, so 2 bands must be excluded before uploading the configuration.
Technical Specifications
- Input Voltage Range: 9–36V (3S–8S LiPo)
- Current Consumption: ~1.4A at 10V
- Output Voltage (for camera): 5V
- Number of Channels: 80 (10 bands)
- Power Levels: 25mW / 200mW / 500mW / 1500mW / 3000mW
- Dimensions: 38 × 29.2 × 11.5 mm
- Weight: 15.2 g
- Active Cooling: yes, with fan
- PIT Mode: supported
- Control: button or Tramp protocol
Frequency Bands
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F (Fatshark) | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R (Raceband) | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Package Contents
- 1 × Foxeer Reaper Extreme 3W V2 Video Transmitter
- 1 × Silicone Connection Cable
Foxeer Reaper Extreme 3W V2 — an ideal choice for pilots who require maximum range and reliable video transmission in challenging conditions. With its wide frequency range, variable power modes, active cooling, and Tramp protocol control capability, this VTx is suitable for both long-range missions and competitions. Manufacturer: Foxeer. Product Category: Drones & UAVs > Transmitters.
