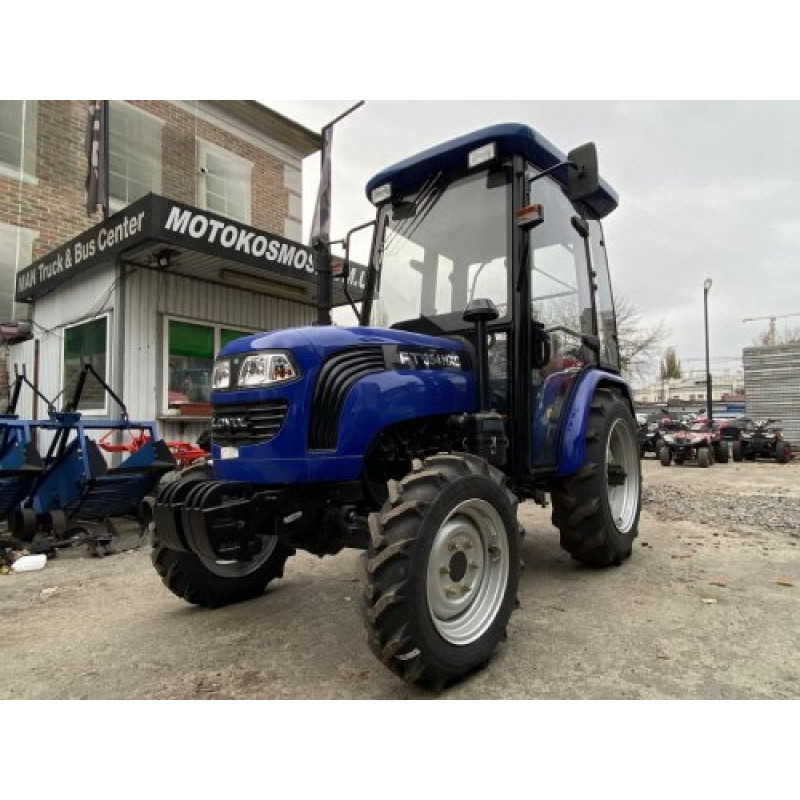

Foton FT 354 HXC Mini Tractor with Cabin

Brand: Foton. Category: Tractors > Mini Tractors. The Foton FT354HXC mini tractor with cabin combines compact dimensions and reliable power, designed for use in private households, small and medium-sized farms, gardens, the municipal sector, and for private customers. The machine provides 35 hp (25.70 kW) and is designed for intensive use thanks to its well-thought-out cabin ergonomics and enhanced off-road capability.

At the heart of the model is a 4L22BT diesel engine — a 4-stroke, non-turbocharged engine with direct injection and four vertical cylinders. The engine displacement is 2155.21 cm3, cylinder bore/piston stroke is 85/95 mm. The starting system is an electric starter. Cooling is liquid-closed with forced circulation of coolant, and the fan is driven by a V-belt. Nominal crankshaft speed is 2350 rpm. Nominal engine fuel consumption is ≤ 268 g/kW*h, nominal oil consumption is 2.31 g/kW*h.

The cabin provides comfort and protection for the operator from weather conditions, and the machine's equipment enhances convenience and productivity: power steering for easy maneuvering, rear differential lock for improved off-road capability on difficult terrain, and reverse for convenient maneuvering. The adjustable track width allows the tractor to be adapted for various crops: rear wheels adjust between 1155 - 1520 mm, front wheels — 1290 / 1390 mm. Minimum ground clearance is 290 mm, wheelbase is 1790 mm.

For expanded functionality, mounted and trailed implements are recommended: potato diggers, seeders, potato planters, various types of cultivators, sprayers, rakes, dozer blades, and other equipment. With the right attachments, the Foton FT354HXC allows for tillage, sowing, and harvesting, hilling, inter-row cultivation, watering and spraying, transportation of bulk and solid cargo, hay mowing, snow removal, and general territory maintenance.

Advantages and Service

  • Affordable price with high quality components and assembly.
  • Reliable design and efficient cooling system, reducing the risk of overheating during intensive work.
  • Convenient and safe operation thanks to power steering, differential lock, and reverse.
  • Ability to precisely adjust track width for different crops and conditions.
  • Powerful power take-off (PTO) shaft with 540/1000 rpm modes for a wide range of attachments.

Flash Army online store offers to purchase the Foton FT354HXC mini tractor with cabin with delivery across Ukraine. We guarantee prompt service, technical support by phone, assistance in choosing compatible attachments, and organization of delivery and service maintenance.

Key Technical Specifications

Main model parameters:

Engine brand

4L22BT

Engine power, hp (kW)

35 (25.70)

Wheel formula

4x4

Engine type

diesel, 4-stroke, direct injection, non-turbocharged

Number and arrangement of cylinders

4, vertical

Engine starting system

electric starter

Cooling system

liquid, closed,

with forced circulation of coolant

Cooling system fan drive

V-belt drive

Engine displacement, cm3

2155.21

Cylinder bore / piston stroke, mm

85 / 95

Nominal engine fuel consumption,

g / kW * h

≤ 268

Nominal engine crankshaft speed, rpm

2350

Nominal traction force, kN

5.8

Engine oil type

mineral or semi-synthetic for diesel engines

Nominal engine oil consumption,

g / kW * h

2.31

Transmission (gearbox)

(4+1) x 2

Transmission and rear axle oil type

Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)

Front axle oil type

Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)

Rear differential lock

+

Clutch

dry, 1-disc,

constantly closed type

Main drive

direct

Brakes

on rear wheels,

brake drums

Power take-off (PTO) shaft

rear, splined

Hydraulic system pump type

gear pump

Power take-off (PTO) shaft speed, rpm

540 / 1000

Maximum lifting capacity of mounted mechanism, kg

550

Minimum ground clearance, mm

290

Wheelbase, mm

1790

Wheel track, mm

front

1290 / 1390

rear

1155 - 1520

Tire size

front

6.50x16

rear

11.20x24

Minimum turning

radius, m

without brakes

2.6

with brakes

3.1

Travel speed, km / h

forward

1.71-25.76

reverse

2.23 - 10.29

Fuel tank capacity, L

29.00

Engine crankcase capacity, L

5.00

Transmission and rear axle crankcase capacity, L

20.00

Front axle crankcase capacity, L

3.50

Oil volume in lift crankcase, L

9.50

Engine cooling system volume, L

12.00

Number of hydraulic outputs

1

Compressor

-

Power steering

+

Hour meter

+

Suspension seat

-

Roll-over protection structure (ROPS)

-

Front weights

6 x 9 kg.

Rear weights

-

Overall dimensions (L x W x H), mm

3240 x 1440 x 2380

Curb weight, kg

(excluding fuel in tank)

1666

If you have questions about operation or purchase, please contact a Flash Army manager by phone — we will help with your choice, suggest compatible attachments, and arrange delivery and service maintenance.
