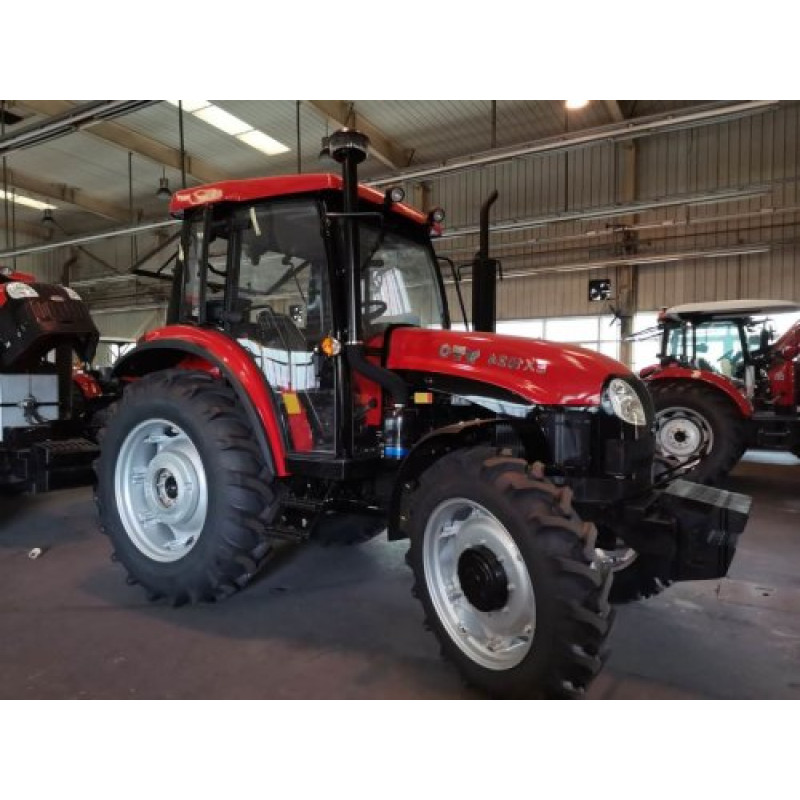

YTO EX1024 — Powerful and Reliable Tractor for Medium and Large Farms
The YTO EX1024 tractor from the YTO brand is a versatile all-wheel-drive unit designed for intensive use in agriculture and municipal services. The model combines a robust design, an efficient PERKINS-licensed diesel engine, and a well-thought-out cabin configuration for long work cycles. The YTO EX1024 is suitable for field cultivation, working with mounted equipment, transportation, and performing complex traction tasks.
Key Advantages of the Model
- Powerful PERKINS-licensed diesel engine — 76 hp (102 kW) with turbocharging and intercooler for economical and stable traction.
- Reliable 12+4 transmission with a 12" dual-action single-disc clutch for smooth and convenient gear shifting.
- Versatile hydraulic system with a capacity of 45 l/min and three pairs of hydraulic outlets for connecting various mounted and trailed equipment.
- Powerful 76 hp PTO with 540/1000 rpm modes for driving various working mechanisms.
- Comfortable cabin with air conditioning, heating, sound insulation, multimedia options, and a wide range of equipment for safe and comfortable operator work.
Technical Specifications:
| Engine Type | PERKINS license, 4-cylinder diesel, turbocharged with intercooler, water cooling, mechanical fuel injection, pre-start heating, cyclonic air filter with oil bath |
| Engine Power, hp (kW) | 76 (102) |
| Rated Engine Crankshaft Speed, rpm | 2300 |
| Clutch | Single-disc 12", dual-action (made in China) |
| Transmission | 12+4 |
| Hydraulic System: Type / Number of Hydraulic Outlets | Combined / Separate (depending on delivery) / 3 pairs |
| Hydraulic Pump Type | Gear pump driven by engine |
| PTO: Power, hp | 76 |
| PTO: Speed, rpm | 540/1000 |
| Mounted Mechanism Lifting Capacity, kg | 2650 |
| Hydraulic System Capacity, l/min | 45 |
| Rear Differential Lock | Mechanical |
| Steering | Hydraulic, independent |
| Front / Rear Tire Size, inch | 11.2-28 / 16.9-34 |
| Turning Radius, m | 4.5 |
| Ground Clearance, mm | 450 |
| Overall Dimensions: LxWxH, mm | 4300x2300x2750 |
| Wheelbase, mm | 2314 |
| Curb Weight, kg | 4700 |
| Brakes | Disc, in oil bath, with hydraulic drive |
| Fuel Tank Capacity, l | 115 main + 50 l auxiliary (option) |
| Cabin Equipment | Air conditioner, cabin filter, heater, radio with MP3 player, 12V socket, sun visor, comfortable seat (with seat belt), auxiliary seat, sound-insulating cabin lining, fire extinguisher bracket |
| Additional Equipment Package (included in price) | Fuel system filter-separator; synchronized gear shifting; 12" clutch; double auxiliary hydraulic cylinders for hitch; toolbox; single-circuit pneumatic trailer brake system with compressor; drawbar and towing device for trailers, auxiliary fuel tank, external hitch control lever |
Application and Recommendations
The YTO EX1024 is recommended for farmers, owners of medium and large farms, and municipal services that require reliable traction and versatility. Thanks to its 2650 kg lifting capacity for mounted mechanisms, 45 l/min hydraulic system capacity, and powerful PTO, the tractor pairs excellently with plows, cultivators, seeders, and trailers. The optional auxiliary fuel tank and extensive additional equipment package make the model autonomous and convenient for long-term field operation.
The well-designed cabin with air conditioning, heater, sound insulation, and a comfortable seat enhances operator productivity and safety during work. The disc brake system in an oil bath with hydraulic drive ensures reliable braking when transporting heavy loads. Hydraulic steering and mechanical rear differential lock improve maneuverability and off-road capability in challenging conditions.
Brand: YTO. Model: YTO EX1024. Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
