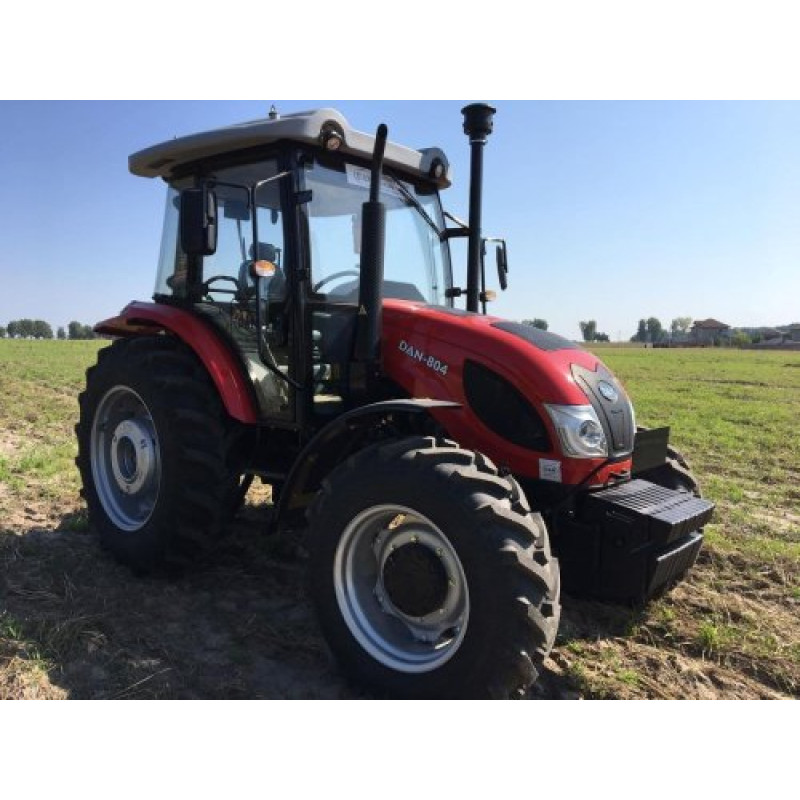

DAN 804 Tractor is a powerful universal agricultural tractor from the DAN brand, designed for intensive work in the field, on the farm, and in municipal services. The model combines a reliable design, modern mechanics, and a comfortable sealed cabin with air conditioning and heating, ensuring operator comfort under all operating conditions. Thanks to a 4-cylinder diesel engine under Perkins license and a robust transmission, the tractor demonstrates high productivity and durability.
Key Advantages
- Engine: 4-cylinder diesel engine under Perkins license – reliability, maintainability, and stable operation under significant loads.
- Power 80 hp (58.84 kW) at nominal 2400 rpm – sufficient for a wide range of mounted and trailed equipment.
- Robust transmission: 24+8 mechanical gearbox and LUK twin-disc clutch for smooth engagement and torque transfer.
- Powerful PTO 51 kW with 540/1000 rpm modes and a lifting capacity of the three-point hitch of 2500 kg – an effective solution for heavy operations.
- Comfortable sealed cabin with standard equipment: filters, air conditioner, cabin heater, fire extinguisher stand, and tool box – for long-term work without reducing operator productivity.
Full Technical Description
Below are the detailed technical specifications of the DAN 804 model. All parameters are indicated according to factory data for accurate equipment selection and work performance.
Technical Specifications:
| Engine type | 4-cylinder diesel engine, Perkins license |
| Engine power, hp (kW) | 80 (58.84) |
| Engine displacement, L | 4.94 |
| Nominal engine crankshaft speed, rpm | 2400 |
| Air cleaning system | External filter with oil bath |
| Clutch | LUK twin-disc |
| Gearbox | Mechanical, 24+8 |
| Hydraulic system: type / number of hydraulic outlets | combined / 3 pairs |
| Hydraulic pump type | Gear pump with engine drive |
| PTO: power, kW | 51 |
| PTO: speed, rpm | 540/1000 |
| Three-point hitch lifting capacity, kg | 2500 |
| Rear differential lock | Mechanical |
| Front / rear wheel track, mm | 1530-2030/1400-2100 |
| Steering | Hydraulic, independent |
| Front / rear tire size, inch | 11.2-28 / 13.6-38 |
| Turning radius, m | 5.2 |
| Ground clearance, mm | 430 |
| Overall dimensions: LxWxH, mm | 4300x2100x3000 |
| Wheelbase, mm | 2320 |
| Curb weight, kg | 4450 |
| Brakes | Disc, in oil bath, with hydraulic drive |
| Fuel tank capacity, L | 135 |
| Cabin equipment | Sealed cabin with filters, cabin heater, air conditioner, fire extinguisher stand, tool box and accessories |
The DAN 804 tractor is suitable for working with various mounted and trailed implements thanks to its powerful PTO, powerful engine, and reliable transmission mechanics. Mechanical rear differential lock and hydraulic steering provide excellent off-road capability and maneuverability on difficult terrain, while a large ground clearance of 430 mm and optimal dimensions of 4300x2100x3000 mm simplify work in fields and on rough terrain.
The sealed cabin with air conditioning and heating creates comfortable conditions for long-term operation, and the large fuel tank capacity of 135 L and a curb weight of 4450 kg emphasize the tractor's purpose for intensive work in farms and the municipal sector. DAN 804 is an optimal solution for farms and municipal work where a combination of power, reliability, and ergonomics is required.
