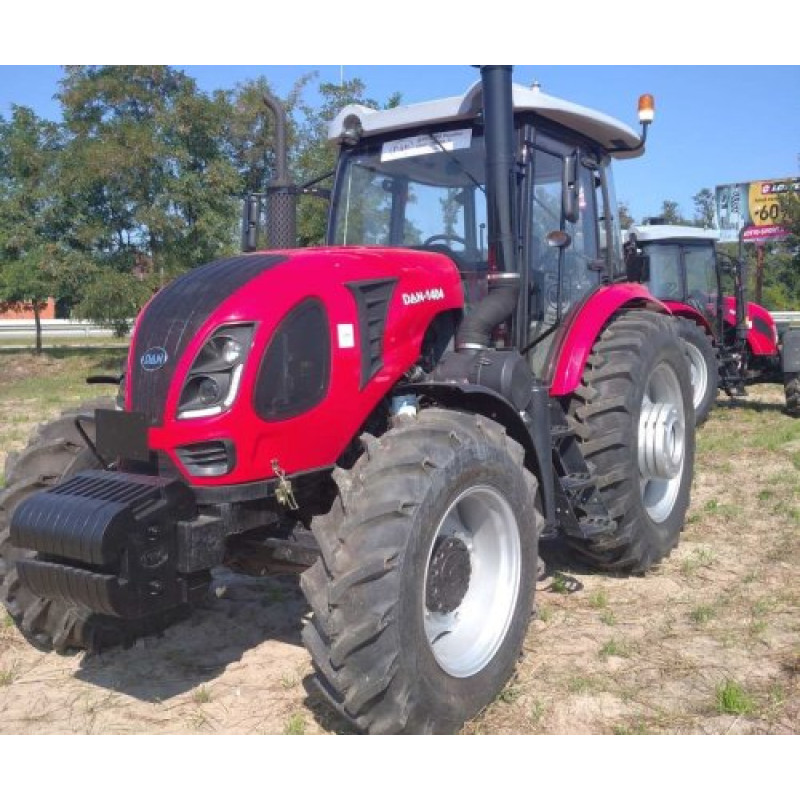

DAN 1404 Tractor — Powerful Universal Tractor

The DAN 1404 tractor from manufacturer DAN is a modern machine in the Tractors > Mini Tractors category, designed for intensive agricultural, municipal, and construction operations. The model combines a powerful 6-cylinder Perkins-licensed diesel engine, a well-designed cabin with comfort and safety systems, and reliable mechanics, ensuring high productivity in the field, on the farm, or at the construction site.

Brief Description and Advantages

The DAN 1404 is equipped with a 6-cylinder diesel engine (Perkins license) with a displacement of 7.72 liters and a nominal crankshaft speed of 2400 rpm. The engine power is 140 hp (102.97 kW). The air purification system uses an external filter with an oil bath, and the clutch is a LUK twin-disc, guaranteeing reliable torque transmission. The 12+12 mechanical gearbox provides a wide range of speeds for various tasks: from field work to transportation and connecting attachments.

Technical Specifications:

Technical Specifications:

Detailed Description of Functions and Capabilities

The combined hydraulic system with three pairs of hydraulic outlets and a gear pump driven by the engine ensures stable oil supply and correct operation of working parts under load. The PTO with 64 kW power and 540/1000 rpm modes allows connecting a wide range of mounted and trailed equipment: headers, spreaders, plows, hydraulic lifts, and other implements.

The hitch lifting capacity of 4500 kg makes the DAN 1404 suitable for lifting heavy agricultural and construction implements. Reliable disc brakes in an oil bath with hydraulic drive provide effective braking under heavy loads, and the mechanical rear differential lock increases проходимость on difficult terrain.

Tire sizes 14.9-26 front and 18.4-38 rear, adjustable track width 1822-2153 mm front and 1662-2262 mm rear, ground clearance 470 mm, and turning radius 6 m ensure good maneuverability and stability on various types of soil. The 2700 mm wheelbase and dimensions 5150x2300x3200 mm, along with a curb weight of 6200 kg, provide a stable platform for heavy work, and the 220 L fuel tank ensures long autonomous operation without frequent refueling.

• Reliable Perkins diesel engine, 6 cylinders, 7.72 L
• Power 140 hp (102.97 kW) at 2400 rpm
• Mechanical 12+12 transmission for flexible speed control
• PTO 64 kW, 540/1000 rpm for various attachments
• Hitch lifting capacity 4500 kg

The tractor cabin is sealed, equipped with filters, a cabin heater, air conditioner, a fire extinguisher holder, and a toolbox — all of which enhance comfort and safety during long shifts. The tractor is suitable for large agribusinesses, rental farms, municipal enterprises, and construction work where high productivity, reliability, and operator comfort are required.

Brand: DAN. Model: DAN 1404 Tractor. Category: Mini Tractors.
