Functions

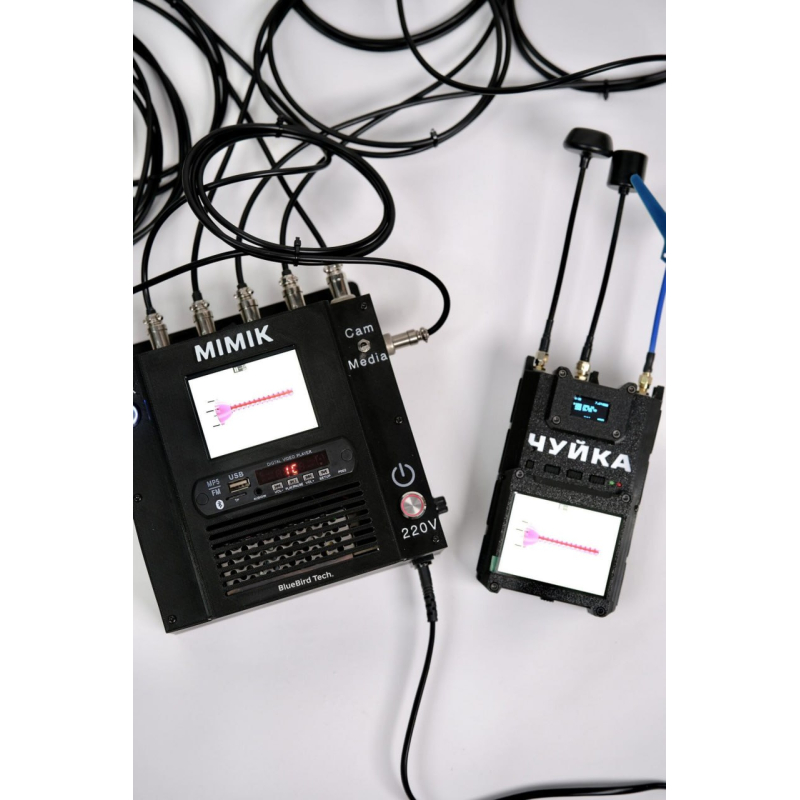

The "Mimic" FPV Drone Video Signal Test Simulator from BlueBird Tech is designed to check the functionality of drone detectors.

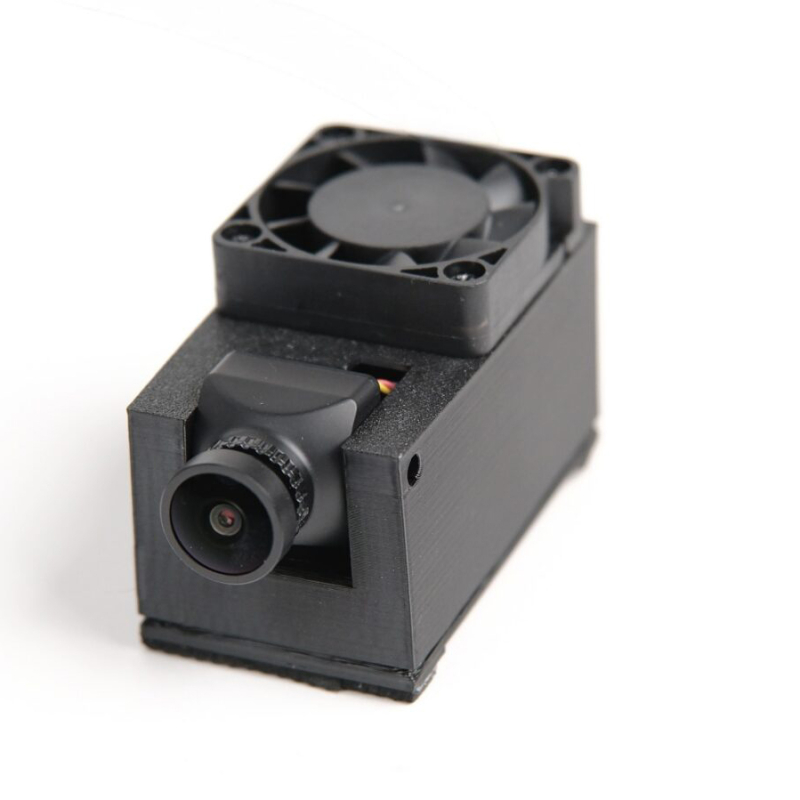

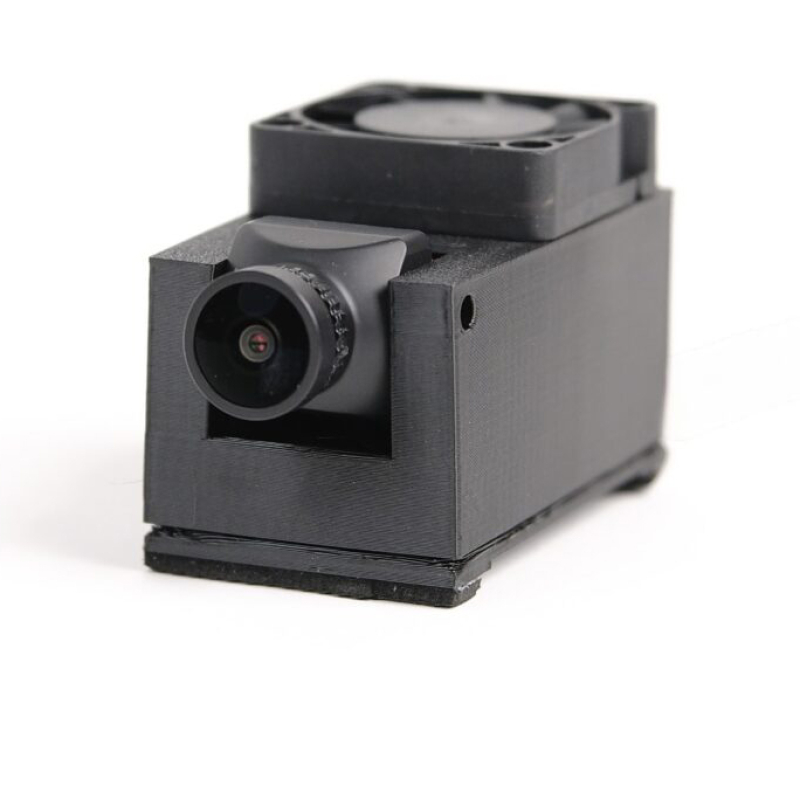

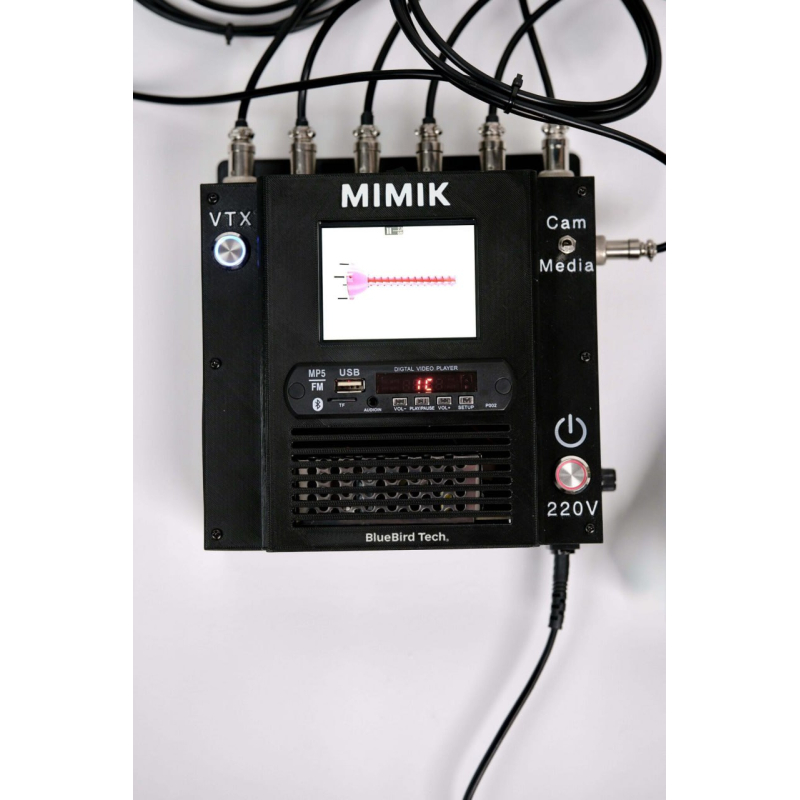

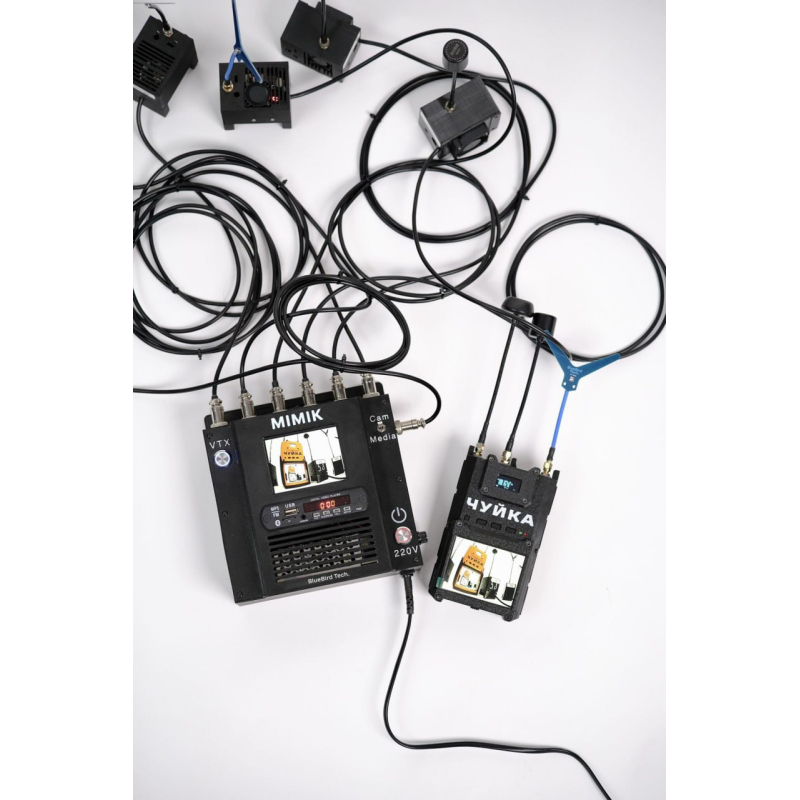

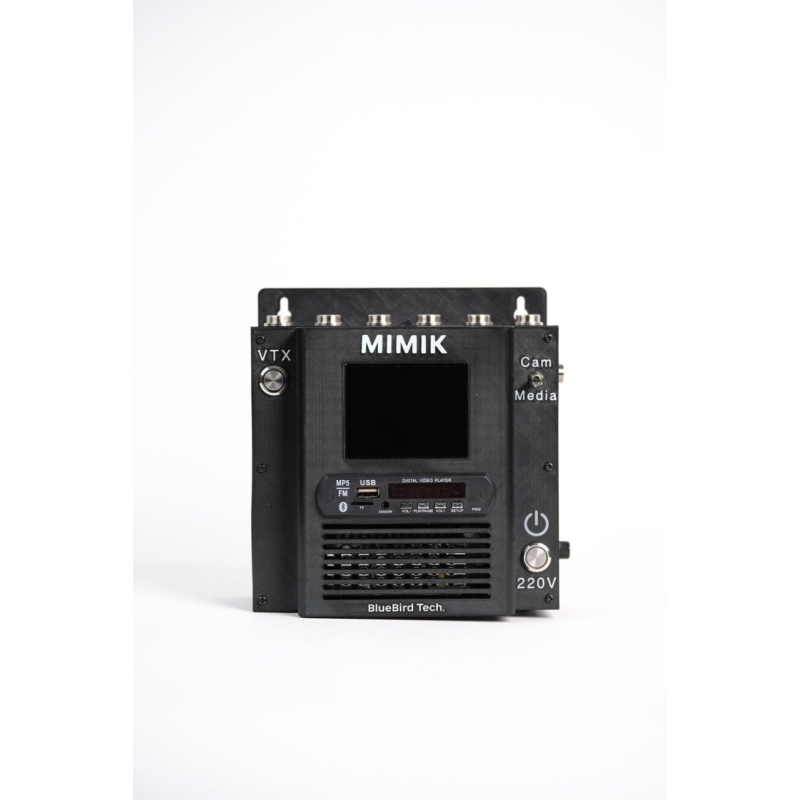

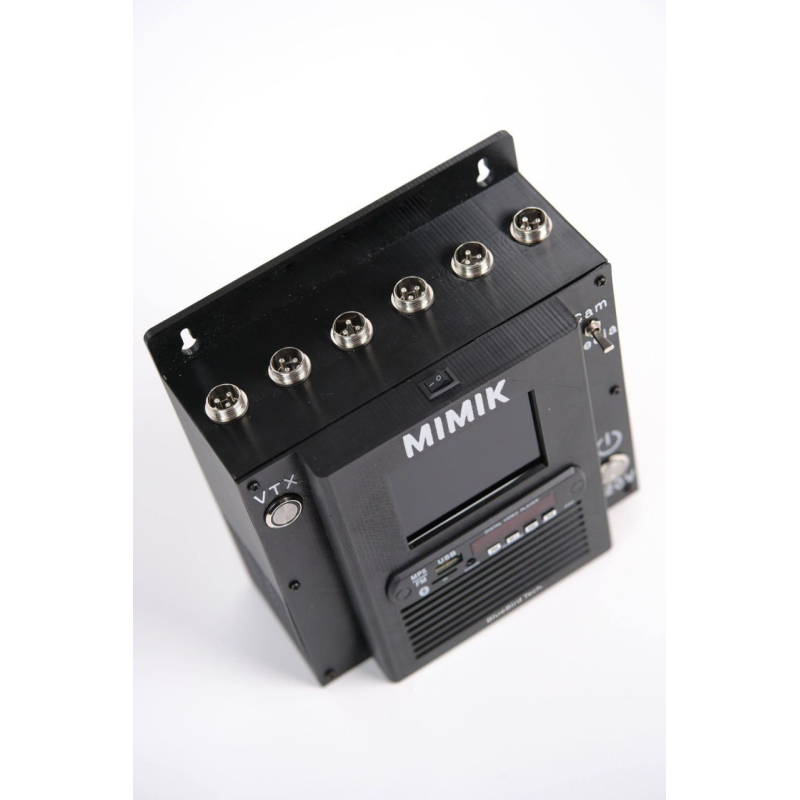

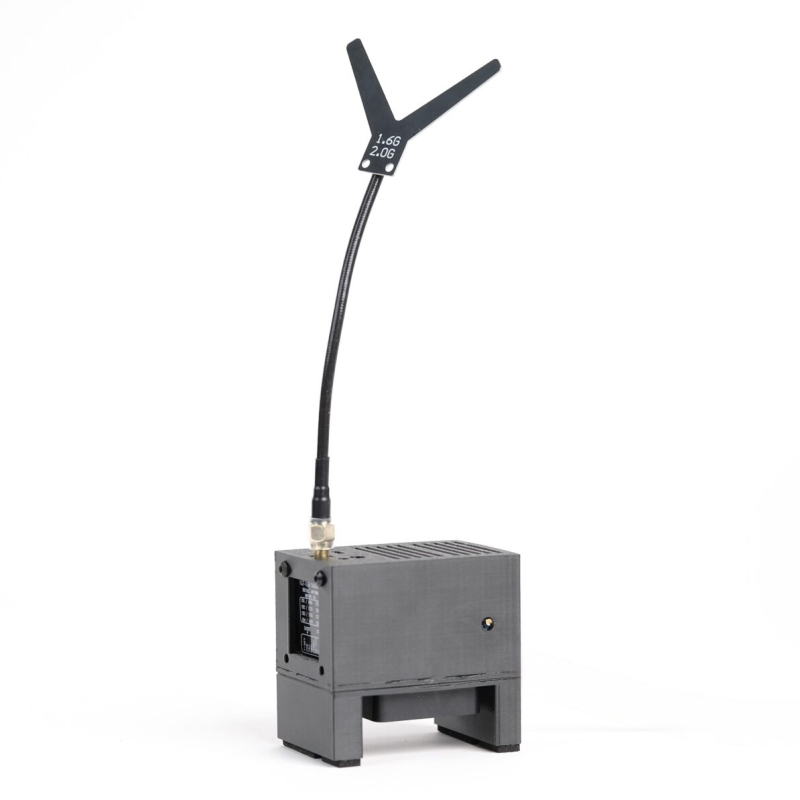

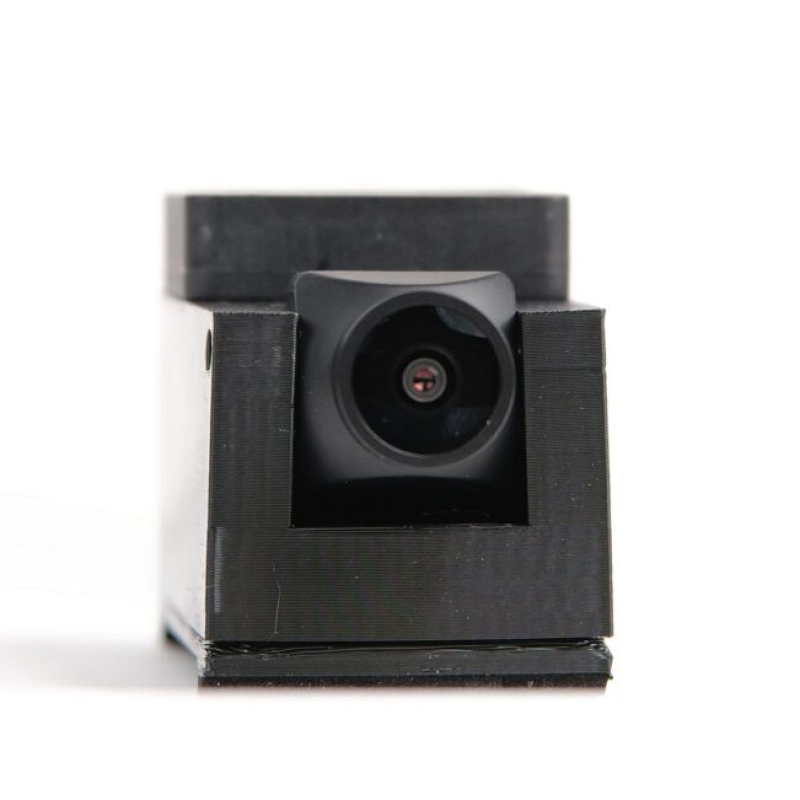

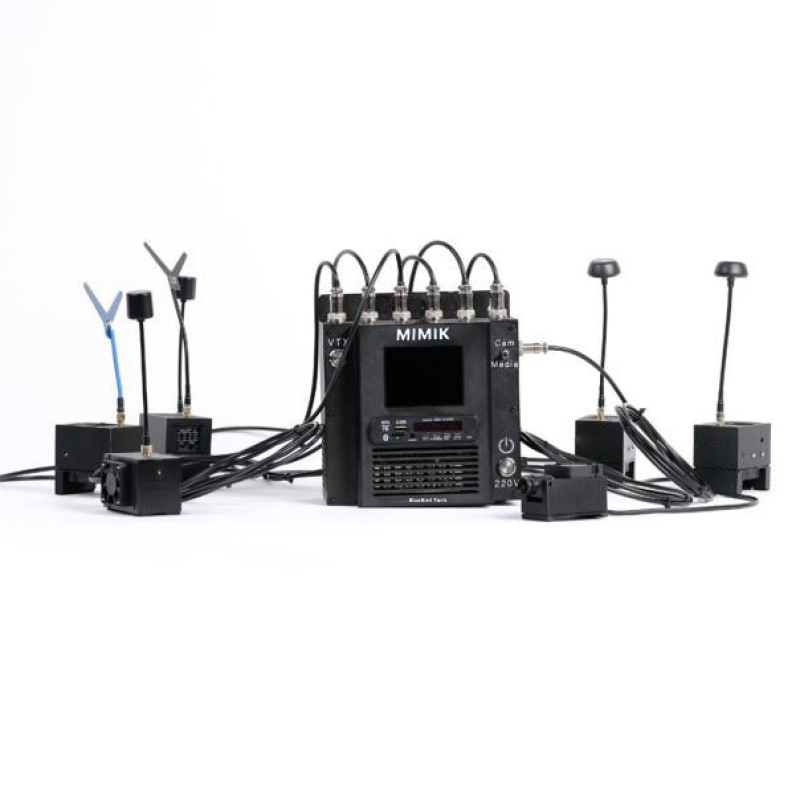

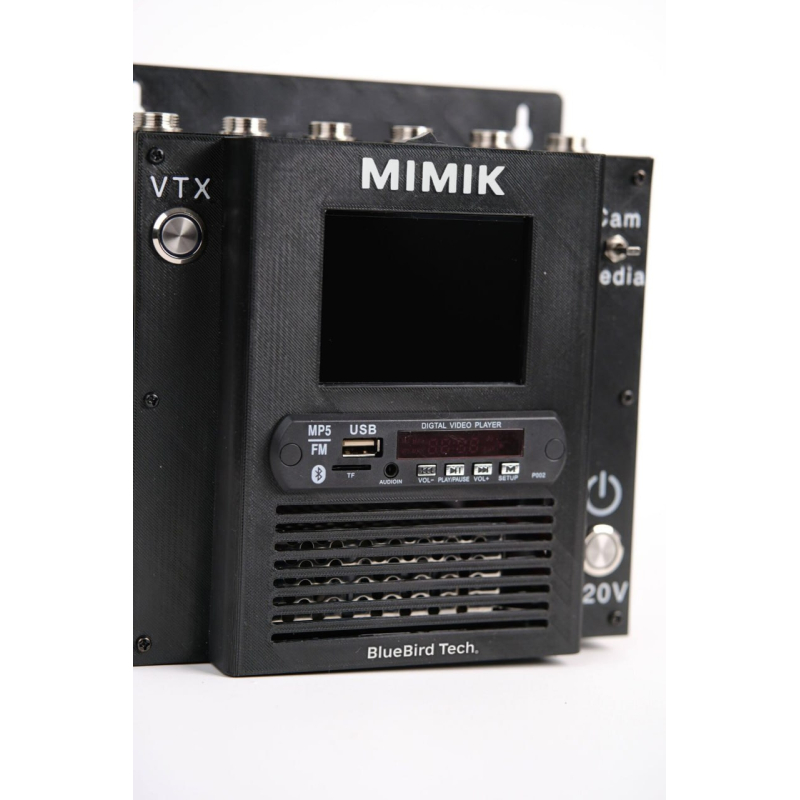

The device consists of a power and control unit, a media player, an external camera, a 3.5-inch display, and six video transmitters with antennas configured for testing drone detectors.
Power is supplied from a 230 V, 0.5 A mains. Optionally, it can be powered from a car cigarette lighter or a standalone power supply unit with a constant voltage of 12 V and a power of 80 W.
Using the video player allows working with a static image, while using the camera enables dynamic image testing.
During operation, it is recommended to:
-
use a UPS (uninterruptible power supply);
-
limit the total operating time of the simulator to 180 minutes;
-
use minimum power on the transmitters to check the functionality of drone detectors;
-
if necessary, perform manual fine-tuning of the video transmitter using a variable resistor;
-
for full operation of the video transmitters, place them at a distance of at least 60 cm from each other;
-

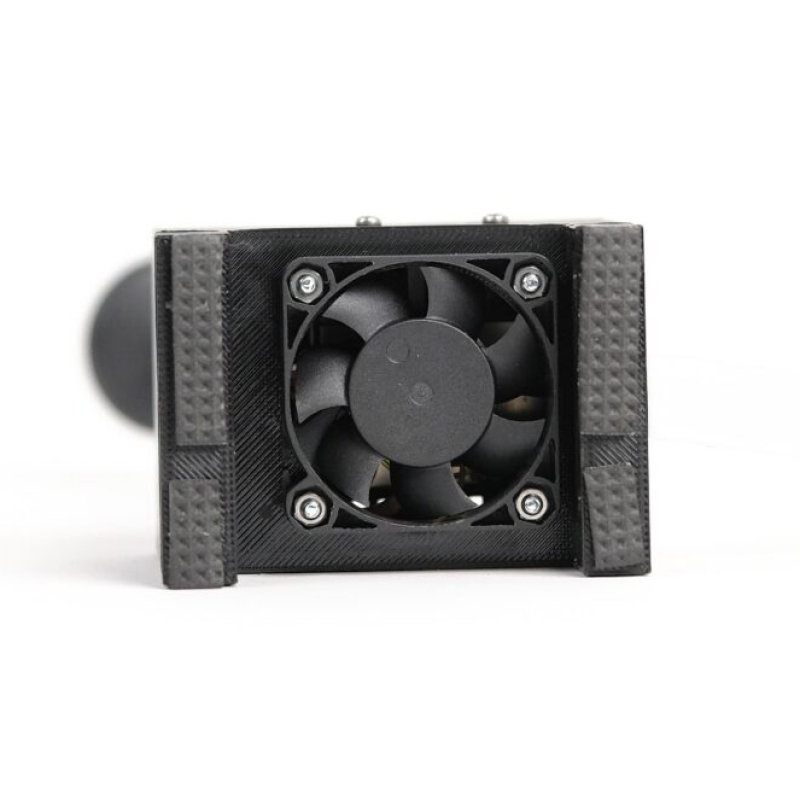

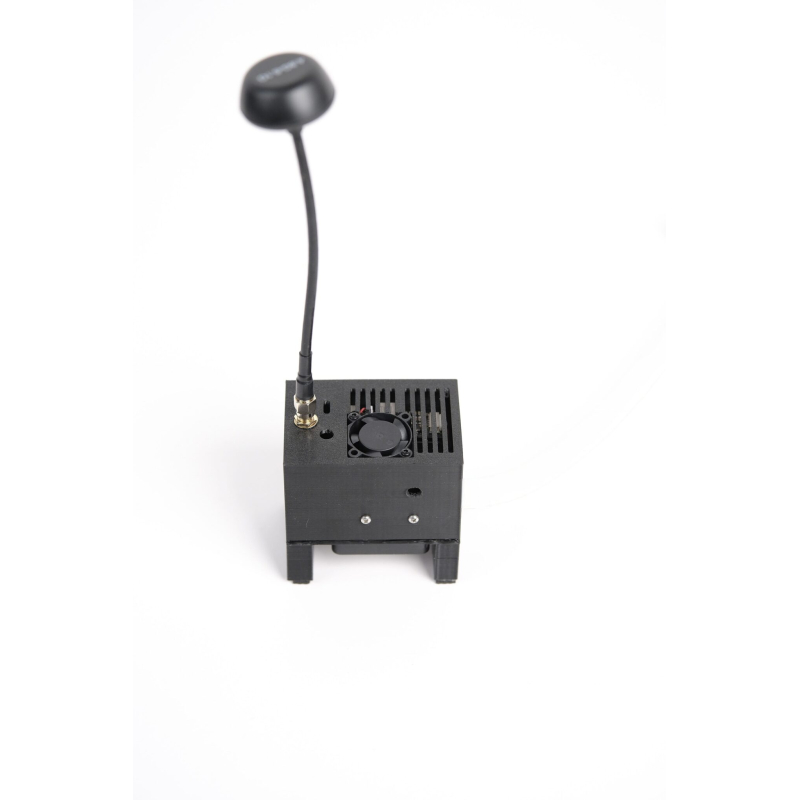

ensure unobstructed cooling of the video transmitters.
Technical Specifications:
General Configuration
| Parameter | Value |
|---|---|
| Device Type | FPV Drone Video Signal Simulator |
| Number of Transmitters | 6 |
| Video Source | Media Player / External Camera |
| Display | 3.5″ |
| Power Supply | 230 V, 0.5 A |
| Alternative Power Supply | 12 V DC, 80 W (from car cigarette lighter or standalone unit, optional) |

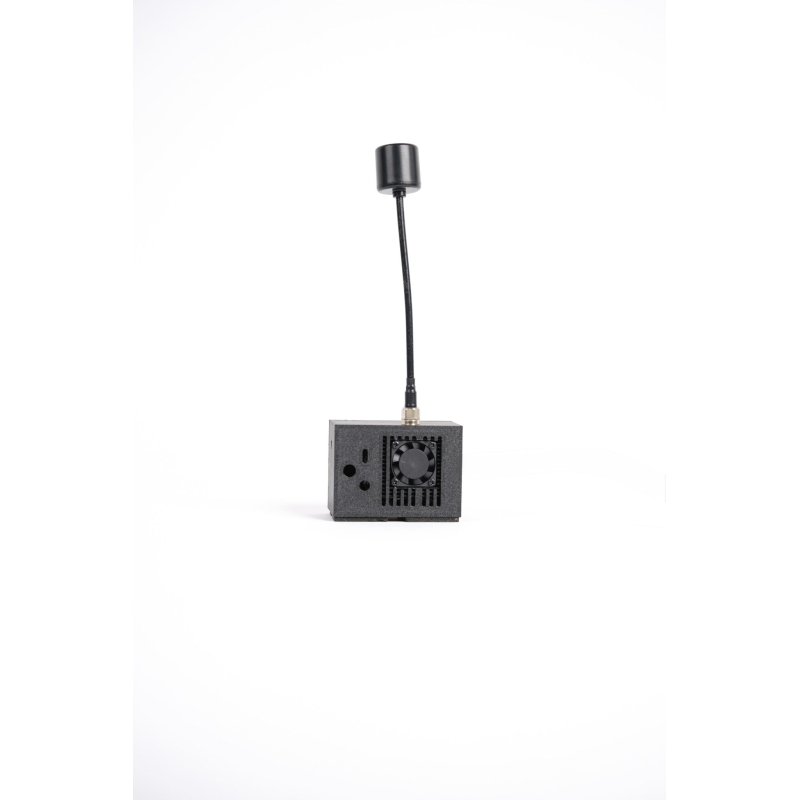

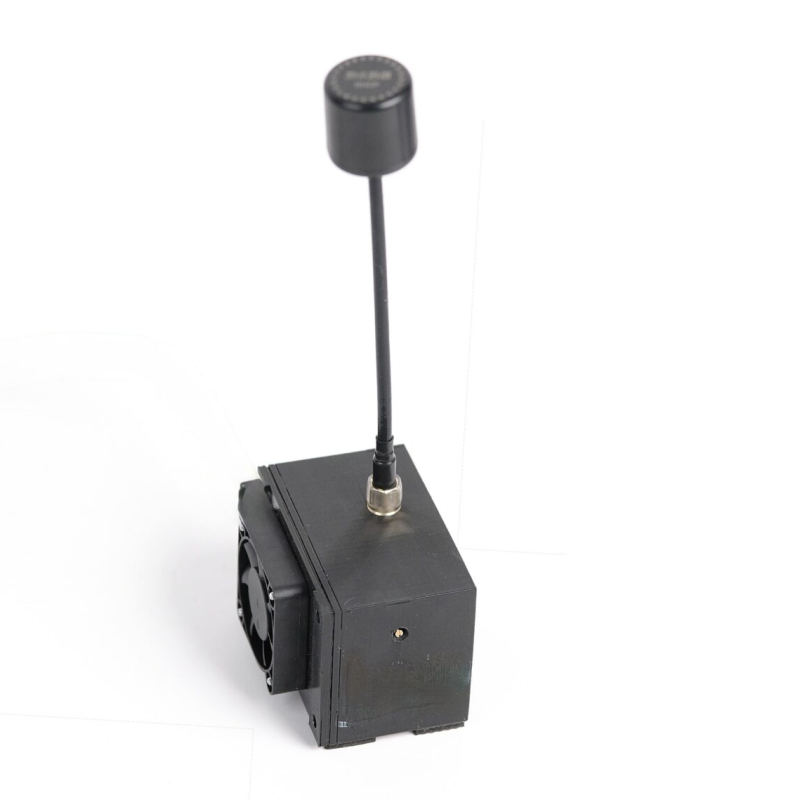

Video Transmitters:
1. 1.2 GHz Video Transmitter
| Parameter | Value |
|---|---|
| Frequency Range | 1080–1400 MHz |
| Power | 25 / 800 / 1600 / 2500 mW |
2. 1.7 GHz Video Transmitter
| Parameter | Value |
|---|---|
| Frequency Range | 1680–1960 MHz |
| Power | PIT / 25 / 200 / 1600 mW |
3–4. 3.3 GHz Video Transmitters
| Parameter | Value |
|---|---|
| Frequency Range | 3000–4938 MHz |
| Power | 25 / 200 / 500 / 1000 / 3000 mW |
5–6. 5.8 GHz Video Transmitters
| Parameter | Value |
|---|---|
| Frequency Range | 4990–6184 MHz |
| Power | 25 / 800 / 1600 / 2500 mW (max. 3000–3500 mW) |
The "Mimic" FPV Drone Video Signal Test Simulator includes:
"Mimic" FPV Drone Video Signal Test Simulator from BlueBird Tech – 1 pc.
