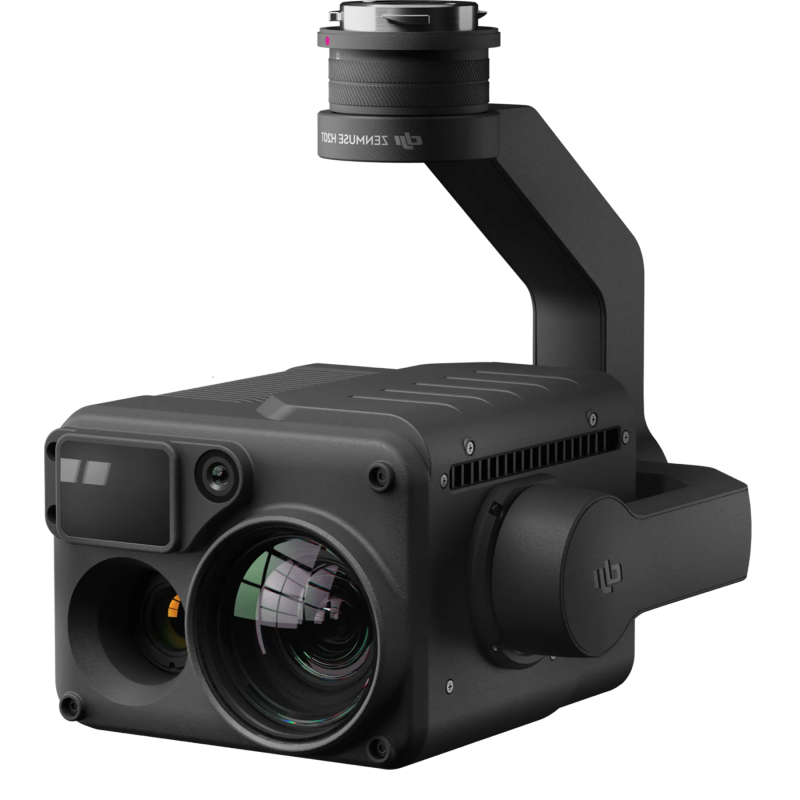

Product Description: The DJI Zenmuse H20T is a powerful multi-sensor tool for professionals, designed for DJI Matrice 300 RTK series drones. It is equipped with four sensors: a standard camera with a 20-megapixel sensor, a thermal imager with 640×512 resolution, a laser rangefinder (LRF), and a 12-megapixel wide-angle camera. Thanks to these features, the H20T provides high-precision monitoring and analysis in conditions of any complexity.
Key Features:
- 20 MP Zoom Camera: up to 23× optical zoom and up to 200× digital zoom, allowing detailed viewing of objects at long distances.
- Thermal Imager: 640×512 resolution for thermal analysis, ideal for use in rescue operations or infrastructure monitoring.
- Laser Rangefinder: range up to 1200 meters, allowing precise determination of the distance to an object.
- Intelligent Functions: AI functions for object detection, enhanced image stabilization, and automatic object tracking, making the DJI Zenmuse H20T ideal for professional applications such as rescue operations, surveillance, and infrastructure inspection.
This multi-sensor allows for the integration of various operating modes, providing the ability to instantly switch between cameras, analyze thermal and optical images, and obtain precise distances to objects.
DJI Zenmuse H20T Overview
DJI Zenmuse H20T is a comprehensive solution that combines four sensors in one housing, including:
- 20-megapixel camera with optical zoom — allows zooming in on objects with great detail, with optical zoom supporting up to 23× and digital up to 200×.
- 12-megapixel wide-angle camera — provides panoramic surveillance, ideal for general area overview.
- Thermal imager — 640×512 resolution, supporting real-time temperature measurement, useful in rescue operations or technical inspection.
- Laser Rangefinder (LRF) — with a maximum range of up to 1200 meters, allowing precise determination of distances to objects.
Intelligent Functions:
- Point of Interest (POI) mode for automatic tracking of selected objects.
- Smart Track mode — automatic tracking of moving objects with the ability to identify thermal and visual targets.
Usage: The DJI Zenmuse H20T is designed for a wide range of professional applications, such as power line inspection, petrochemical plants, search and rescue operations, fire safety, and infrastructure monitoring.
Comparison Table: DJI Zenmuse H20T and DJI Zenmuse H20N
For a better understanding of the differences between the DJI Zenmuse H20T and DJI Zenmuse H20N models, a comparison table is provided below:
| Characteristic | DJI Zenmuse H20T | DJI Zenmuse H20N |
|---|---|---|
| Sensor Type | Optical (zoom), wide-angle, thermal imager, LRF | Night vision, thermal imager, wide-angle, LRF |
| Optical Zoom | 23× optical, 200× digital | 20× optical, 128× digital |
| Thermal Imager | 640×512 resolution, thermal analysis | Two modes: 640×512, enhanced sensitivity |
| Night Vision Camera | Absent | Built-in, provides vision in low-light conditions |
| Maximum LRF Range | 1200 meters | 1200 meters |
| Target Application | Daytime surveillance, thermal analysis | Night operations, low-light surveillance |
| Features | AI functions, thermal analysis, automatic tracking | Night vision, automatic target detection in night conditions |
Key Differences:
- DJI Zenmuse H20T is oriented towards daytime use with detailed thermal analysis and standard visual monitoring capabilities.
- DJI Zenmuse H20N features a night vision camera, enabling operations in limited light conditions, making it a better choice for rescue operations and night monitoring.
Conclusion
The DJI Zenmuse H20T is a multifunctional tool for professional inspections and monitoring during the day, while the H20N provides effective operation at night. Each of these cameras has its strengths, making them indispensable for various tasks in the field of unmanned technologies.
