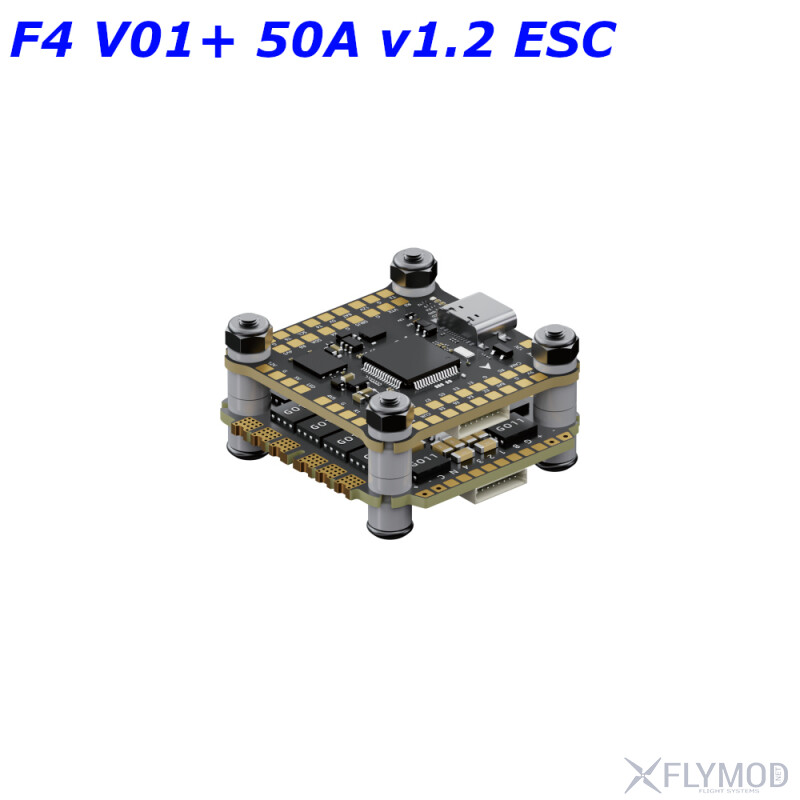

The FlyFishRC F4 V01 flight control stack is built on an STM32F405RGT6 processor with a clock speed of 168MHz and supports Betaflight firmware. The board has 6 UART ports, is compatible with CRSF, SBUS, IBUS, and DSM receivers, and is equipped with an ICM270 gyroscope and an AT7456E OSD module. The built-in 16Mb flash memory allows black box data to be stored for analysis. The FlyFishRC V1.2 50A/60A ESC supports PWM and DShot300/600 control protocols. Both modules have a standard 30.5×30.5mm mounting pattern, are compatible with DJI O3, and are equipped with CURR, LED, and TVS protection.

Features

• STM32F405RGT6 processor with 168MHz frequency ensures stable flight data processing and Betaflight firmware compatibility
• Supports power from 2S to 8S LiPo (7.4-33.6V)
• Equipped with ICM270 gyroscope and AT7456E OSD chip
• Rated for continuous current of 50A (peak 55A) for the speed controller, and 60A (peak 65A), also supports PWM, DShot300/600 protocols

Specifications

FlyFishRC F4 V01 Flight Controller

• Processor: STM32F405RGT6
• Frequency: 168MHz
• Gyroscope: IBM270
• Barometer: No
• OSD: AT7456E
• Blackbox: 16Mb flash memory
• UART ports: 6 (USB occupies UART2)
• Receiver support: CRSF/SBUS/IBUS/DSM
• Input: 2-8S LiPo (7.4-33.6V)
• BEC1: 5V/3A
• BEC1: 12V/3A
• Motor: 8 Set
• Buzzer Pad: Supported
• CURR Pad: Yes
• LED: Yes
• I2C: Yes
• DJI O3 Air Unit: Yes
• TVS Protection: Yes
• Firmware: BetaFlight
• Mounting pattern: 30.5*30.5mm/M3
• Weight: 9.6g

FlyFishRC V1.2 50A/60A ESC Speed Controller

• MOSFET: G011N04
• Main Controller: EFM8BB21
• Gate Driver: SA6288
• Input Voltage: 7.4V-33.6V (2~8S Lipo)
• Continuous Current: (option)
  • 50A
  • 60A
• Peak Current: (option)
  • 55A
  • 65A
• CURR: Yes
• BEC: No
• Protocol: PWM/Dshot 300/600
• BL: BLS
• Target: GH40
• Mounting pattern: 30.5*30.5mm/M3
• Weight: 15.6g

Package Contents

• 1 x FlyFishRC F4 V01 Flight Controller
• 1 x FlyFishRC V1.2 50A/60A ESC Speed Controller (option)
