Product Code: FA100-WHA-4972-15-2-100
In Stock
1 714 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Polarization:
RHCP / LHCP
Weight (depends on size):
135 g
Frequency range:
4.9–7.2 GHz
Beam angle:
27–42°
All specifications
We will deliver this product:
Payment
Description

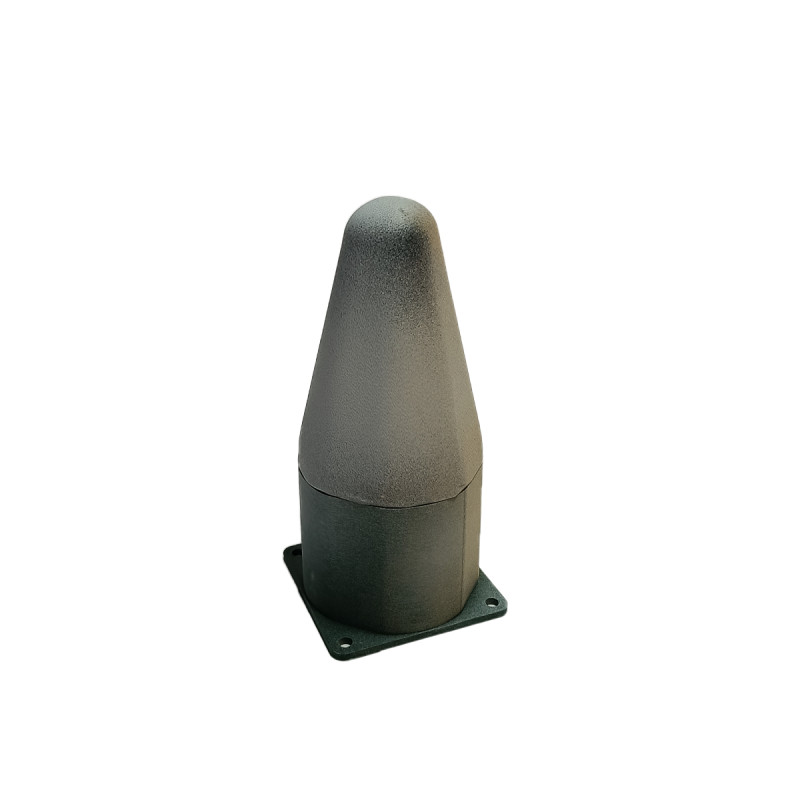

Broadband spiral antenna for the 4.9 - 7.2 GHz band, RHCP or LHCP, gain from 12 dBi at 4.9 GHz to 15.5 dBi at 7.2 GHz. Beamwidth from 27 to 42 degrees. Optimized for use as part of a ground station.
Frequency range: 4.9-7.2 GHz
Beamwidth: 27-42 degrees
Number of turns: 14
Gain: 12-15.5 dBi
Polarization: RHCP or LHCP
VSWR: not more than 2
Connector: SMA
Dimensions: 88x88x185 mm
Weight: 135 g
Specifications
Connector type
SMA
Polarization
RHCP / LHCP
Weight (depends on size)
135 g
Size
88×88×185 mm
Antennas
Frequency range
4.9–7.2 GHz
Beam angle
27–42°
Enhancements
12–15.5 dBi
