Product Code: FA100-WHA-4563-15-1-100
1 334 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Polarization:
RHCP / LHCP
Weight (depends on size):
55 g
Frequency range:
4.5–6.3 GHz
Beam angle:
27–42°
All specifications
We will deliver this product:
Payment
Description

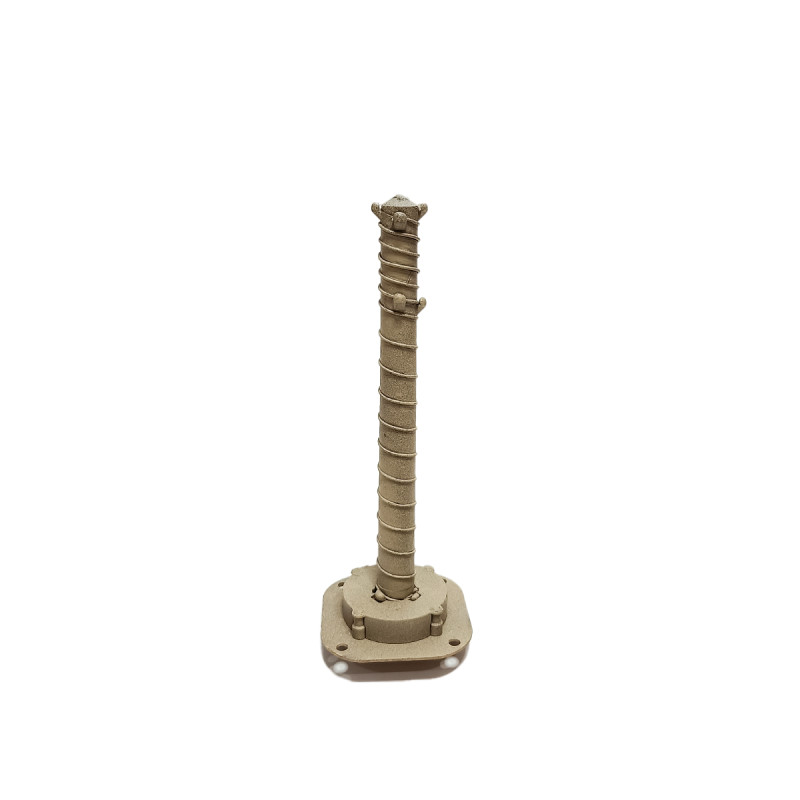

Broadband spiral antenna for the 4.5 - 6.3 GHz band, RHCP or LHCP, gain from 12 dBi at 4.5 GHz to 15.5 dBi at 6.3 GHz. Beamwidth from 27 to 42 degrees. Optimized for use as part of a ground station.
Frequency range: 4.5-6.3 GHz
Beamwidth: 27-42 degrees
Number of turns: 14
Gain: 12-15.5 dBi
Polarization: RHCP or LHCP
SWR: not more than 2
Connector: SMA
Dimensions: 64x64x180 mm
Weight: 55 g
Specifications
Connector type
SMA
Polarization
RHCP / LHCP
Weight (depends on size)
55 g
Size
64×64×180 mm
Antennas
Frequency range
4.5–6.3 GHz
Beam angle
27–42°
Enhancements
12–15.5 dBi
