HOBBYWING SKYWALKER 30A V2 ESC

Brand: Hobbywing. Category: Drones & Quadcopters > Stacks (FC+ESC).

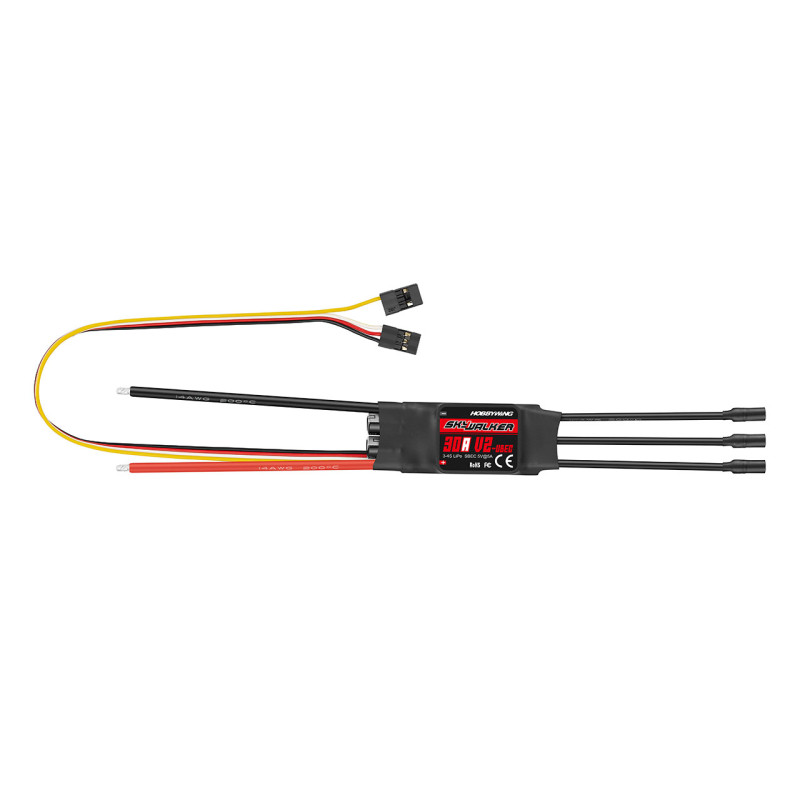

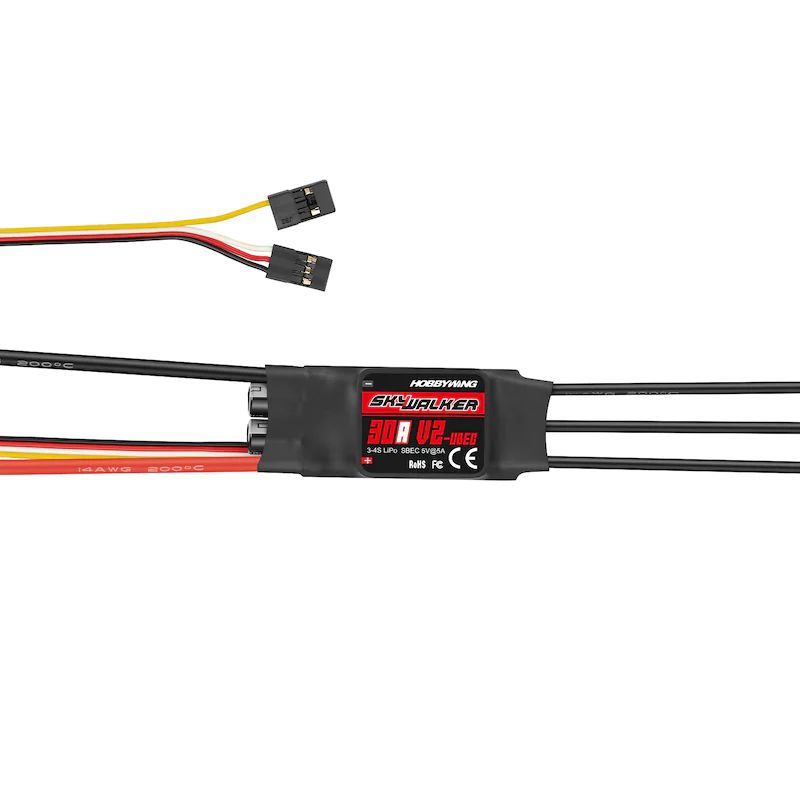

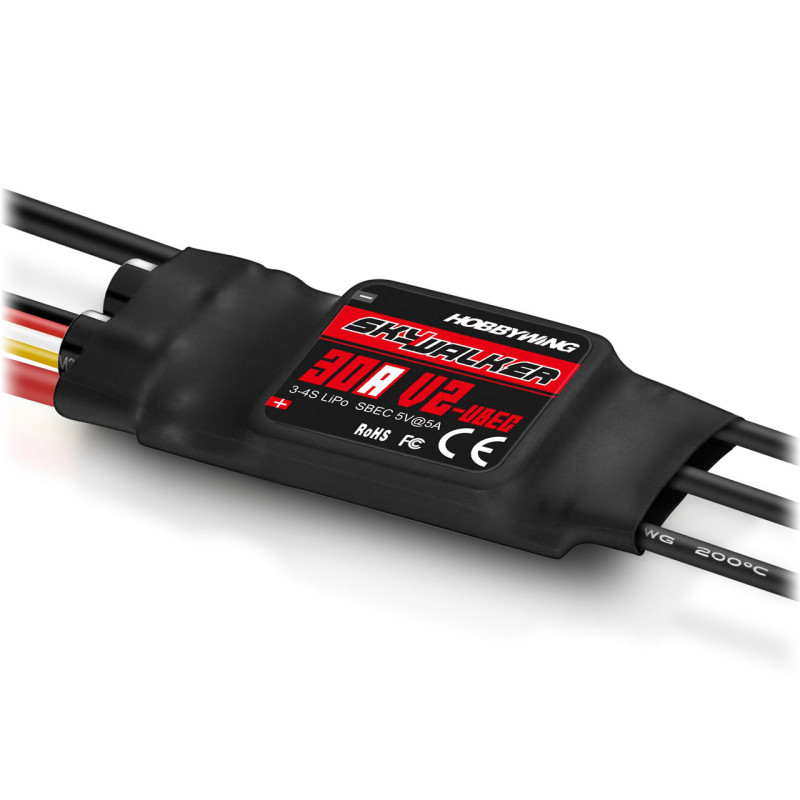

The HOBBYWING SKYWALKER 30A V2 is a compact brushless electronic speed controller (ESC) designed for medium-sized RC models and quadcopters. This ESC combines reliability and ease of use with fine-tuning programming capabilities, ensuring smooth motor power control and operational safety thanks to a comprehensive set of protections.

Key Features

• 1. Continuous Current: Up to 30 A for stable, prolonged operation under load.
• 2. Peak Current: Up to 40 A for short bursts, rapid acceleration, and peak loads.
• 3. BEC: Integrated Battery Eliminator Circuit with 5 V output voltage and 3 A current for powering the receiver and servos.
• 4. Input Voltage: Compatible with 2S–3S LiPo batteries, offering flexibility in power source selection.
• 5. Dimensions and Weight: Compact casing approximately 45×22×6 mm, low weight for easy installation in the model's chassis.
• 6. Protections and Functions: Overcurrent protection, overheating protection, braking function, and adjustable start mode for optimal motor acceleration.
• 7. Programmable Parameters: Ability to individually configure parameters for a specific model using a programmer or PC software.
• 8. RPM Signal Output: Dedicated port for monitoring motor rotation speed and real-time tracking.

The SKYWALKER 30A V2 from Hobbywing is suitable for most medium-sized quadcopters and aircraft requiring a reliable ESC with a short-term peak current capability of up to 40 A. The integrated 5 V/3 A BEC allows powering onboard electronics without additional converters, simplifying installation and reducing system weight. Compact dimensions of approximately 45×22×6 mm facilitate installation in model chassis with limited space.

Programming the controller allows you to adapt start modes, braking, and other parameters to your motor's characteristics and flight style. The RPM port enables integration into a telemetry system and real-time RPM tracking. Overload and overheating protections enhance the unit's reliability and durability during intensive use.

Before installation, always check that the ESC matches your motor and battery parameters (2S–3S LiPo). The SKYWALKER 30A V2 will be an excellent choice for experienced pilots requiring fine-tuning, as well as enthusiasts seeking an easy-to-use and stable speed controller for medium models.

Other details: possibility of connecting a programmer or PC for fine-tuning; support for braking function; adapted start mode for motors of various inertias; comprehensive protections for safe use in various flight conditions.
