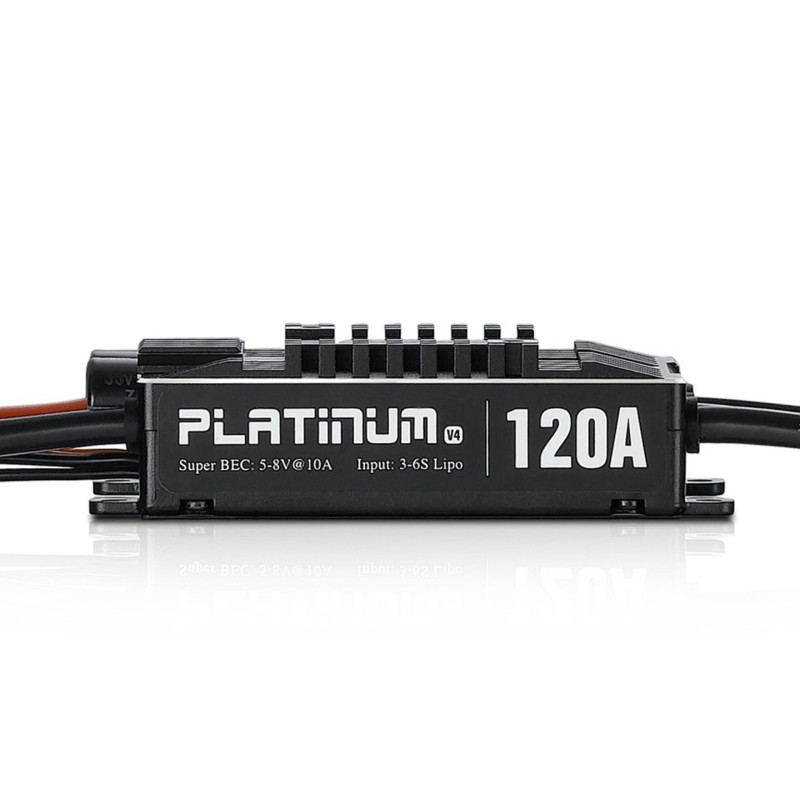

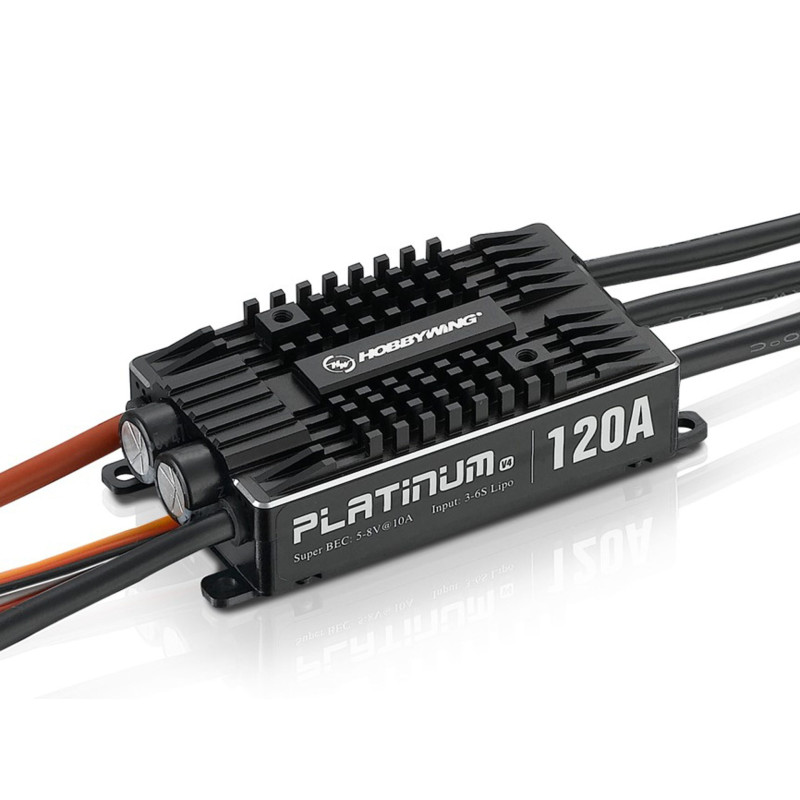

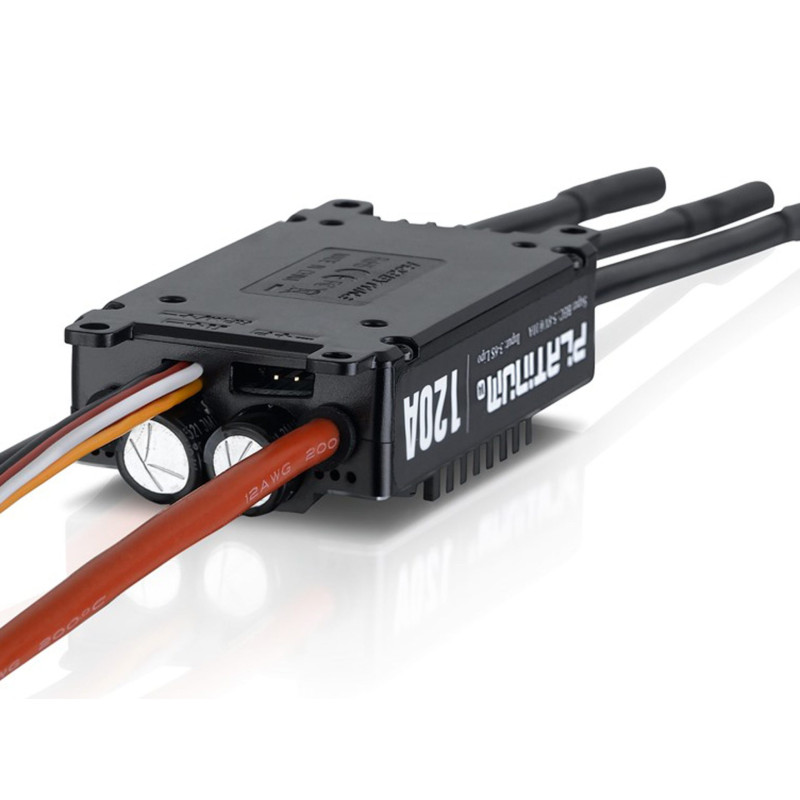

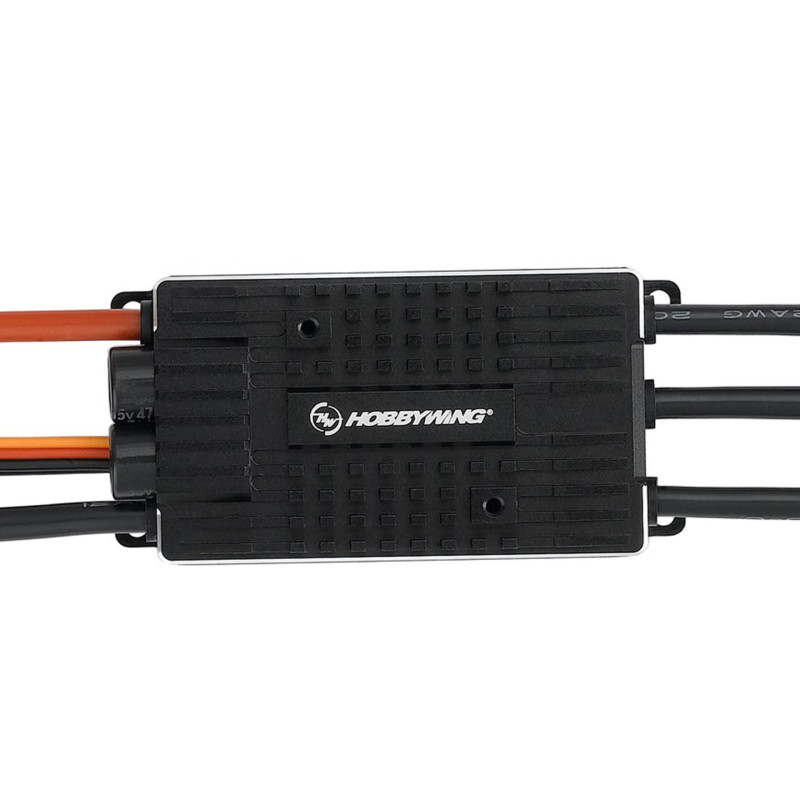

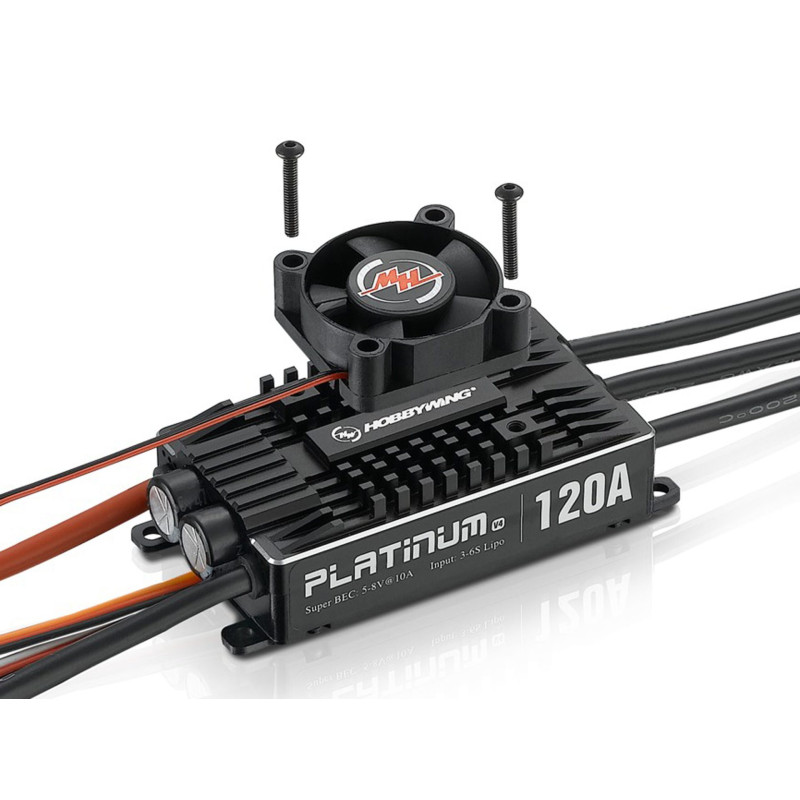

Hobbywing Platinum 120A V4 ESC — a powerful solution for drones and quadcopters

The Hobbywing Platinum 120A V4 brushless ESC is designed for amateur and professional multi-rotors that require high reliability, stable operation under load, and flexible programming options. This ESC provides confident motor control and is suitable for a wide range of drone and quadcopter applications.

Key features

• Input voltage: 11.1-22.2V (3-6S Li-Po);
• Max continuous current: 120A;
• Max burst current: 150A (10 sec);
• BEC: switching, 5-8V/10A;
• Generation: V4;
• Programmable via: programmer, USB adapter, Wi-Fi module;

Connectors

The ESC connectors ensure convenient system connection and standard compatibility with motors and peripherals:

• to motor (4.0mm, female) * 3pcs;
• to program card * 1pc;
• to receiver * 1pc;
• brake (yellow) * 1pc.

Dimensions and weight

• Size: 84.3x38.2x20.4mm;
• Weight: 107g;

Package contents

• Hobbywing Platinum 120A V4 brushless speed controller * 1pc.

The Hobbywing Platinum 120A V4 ESC features efficient heat dissipation, the ability to withstand peak loads up to 150A for short periods, and a powerful 5-8V/10A switching BEC, which allows powering onboard electronics without additional converters in many configurations. The V4 generation provides updated motor control algorithms, increased efficiency, and smoother responses, which is especially important for aerial photography and precise maneuvers.

Flexible programming options — via programmer, USB adapter, or Wi-Fi module — allow fine-tuning parameters for specific motor combinations and batteries (3-6S Li-Po). Compact dimensions of 84.3×38.2×20.4 mm and a weight of 107 g facilitate integration into various flying platforms.

This ESC is ideal for users who need a reliable ESC with a high current reserve, ease of connection, and extensive programming capabilities. Thanks to standard 4.0 mm motor connectors and a set of interfaces, installation and replacement of the ESC are quick and hassle-free.

Brand: Hobbywing. Category: Drones and Quadcopters > Stacks (FC+ESC). Model: Hobbywing Platinum 120A V4. All of the above — a complete list of technical specifications and package contents specified for this product.
