Matek BEC 6-60V - 5V9V12V Power Regulator

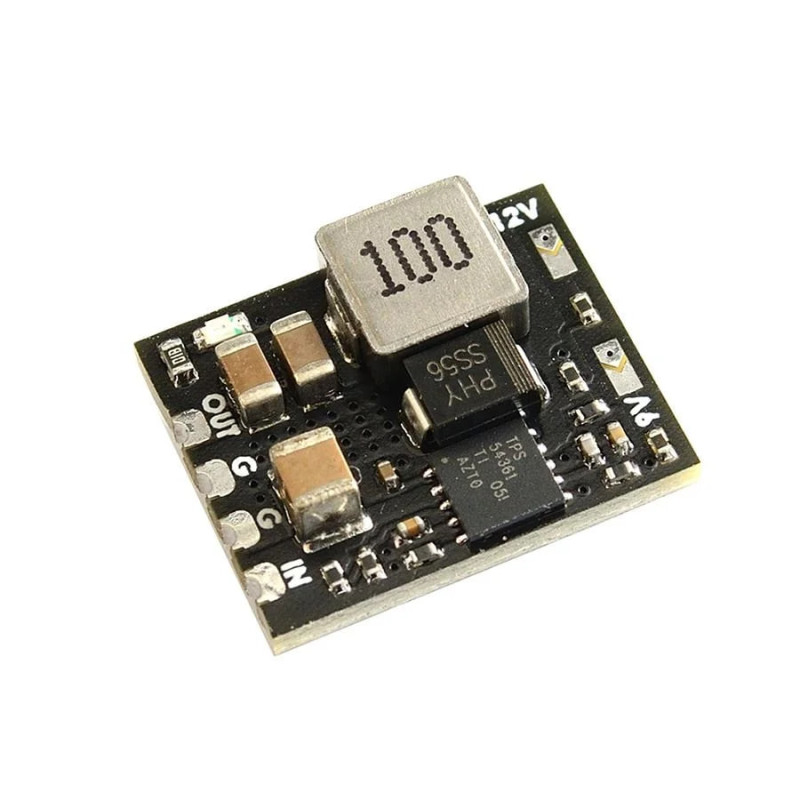

Manufacturer: Matek. Product ID: 11752. This compact step-down voltage regulator (Micro BEC) is designed for use in drones, quadcopters, and other electronic projects where a stable output voltage is required across a wide input voltage range.

Brief Description

Matek Micro BEC operates from 2-12S LiPo (6-60V) and allows switching the output voltage between 5V, 9V, and 12V (default is 5V). The device features high reliability, built-in protections, and low standby current consumption, making it an optimal solution for powering flight electronics, controllers, receivers, and other peripheral modules.

Key Features

• Input Voltage: 2-12S LiPo (6-60V)
• Maximum Duty Cycle: 100%
• Continuous Load Current: depends on input voltage and heat dissipation
• Protections: overcurrent protection and thermal shutdown
• Short-Circuit Resistance: withstands short circuits for up to 3 seconds
• No Reverse Polarity Protection: observe polarity during connection

Technical Specifications

• Startup Voltage: ≥ 6.7V
• BEC Output: 5V default

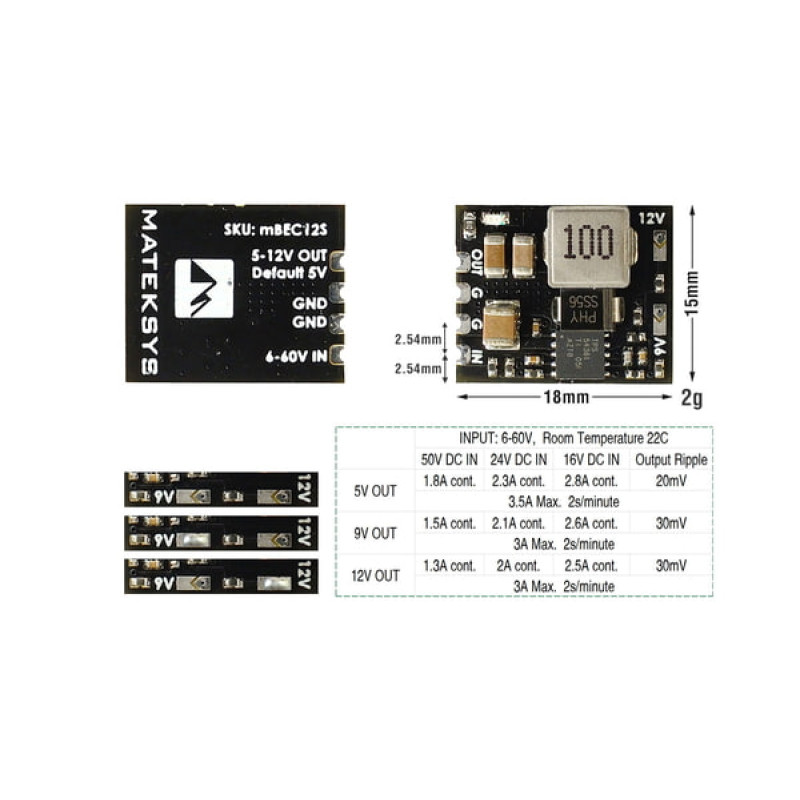

• Output Modes and Parameters:
  • 5V OUT:
    • 50V DC IN: 1.8A
    • 24V DC IN: 2.3A
    • 16V DC IN: 2.8A
    • Output Ripple: 20mV
    • Peak Current: max. 3.5A (2 sec)
  • 9V OUT:
    • 50V DC IN: 1.5A
    • 24V DC IN: 2.1A
    • 16V DC IN: 2.6A
    • Output Ripple: 30mV
    • Peak Current: max. 3A (2 sec)
  • 12V OUT:
    • 50V DC IN: 1.3A
    • 24V DC IN: 2.0A
    • 16V DC IN: 2.5A
    • Output Ripple: 30mV
    • Peak Current: max. 3A (2 sec)
• Standby Current: < 5mA

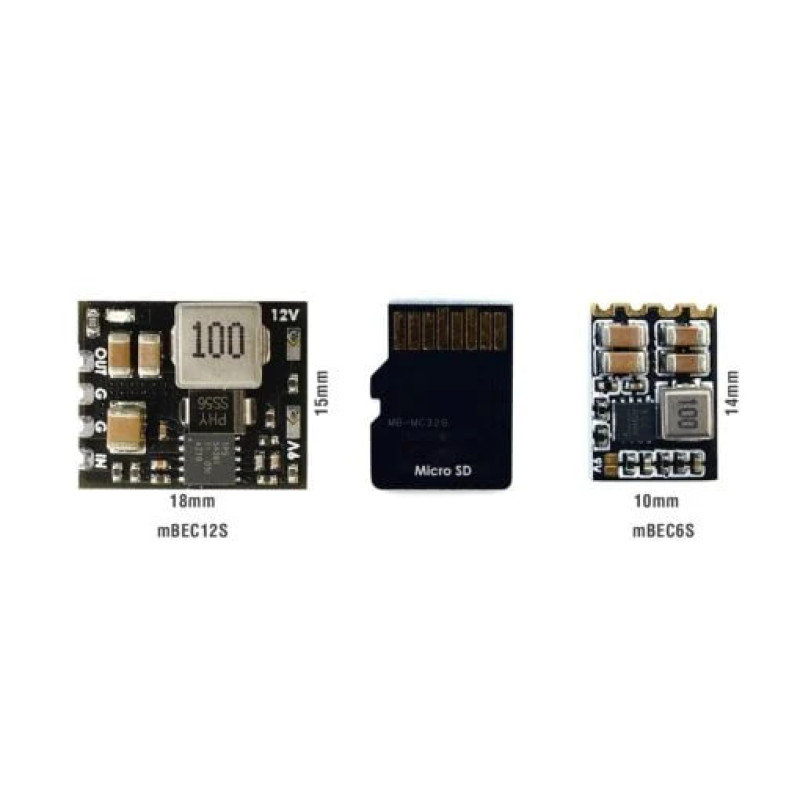

• Size: 18 x 15 x 4.5 mm
• Weight: 2 g

Applications

The Matek Micro BEC power regulator is ideal for powering flight electronics, microcontrollers, receivers, servos, and other peripheral devices in quadcopters and drones when stable 5V, 9V, or 12V are required across a wide input voltage range. Thanks to overcurrent protection and automatic thermal shutdown, the device ensures enhanced operational reliability. However, it is important to note the absence of reverse polarity protection — carefully observe polarity during connection to avoid damage.
